Perfect Aire 1PAMSH36-SZ0-14.5 Single-Zone Inverter Mini-Split Outdoor Unit Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Perfect Aire 1PAMSH36-SZ0-14.5 Single-Zone Inverter Mini-Split Outdoor Unit. Please read this manual thoroughly before attempting to install or operate the unit. Keep this manual for future reference.

2. Safety Information

Important Safety Instructions:

• This outdoor unit requires an indoor unit (Model #1PAMSH36-SZW-14.5) to form a complete and functional cooling/heating system. Do not attempt to operate this outdoor unit independently.
• Installation and servicing must be performed by qualified personnel only, in accordance with all applicable local and national electrical codes.
• Ensure the power supply meets the unit's requirements: 208-230V.
• Proper grounding is essential to prevent electrical shock.
• Do not block the airflow to the outdoor unit. Maintain adequate clearance around the unit for proper operation and maintenance.
• Refrigerant leakage detection is a built-in feature. If the indoor unit sounds an alarm, contact a qualified technician immediately.

3. Product Overview

The Perfect Aire 1PAMSH36-SZ0-14.5 is a single-zone inverter mini-split outdoor unit designed to provide efficient cooling and heating when paired with its corresponding indoor unit (Model #1PAMSH36-SZW-14.5). This unit utilizes inverter technology for energy savings and quieter operation.

Key Features:

• Inverter Technology: Provides energy efficiency and precise temperature control.
• Refrigerant Leakage Detection: The indoor unit will alert you if a refrigerant leak is detected in the outdoor unit.
• Golden-Fin Hydrophilic Condenser: Improves heating efficiency and offers enhanced corrosion resistance against salty air, rain, and other elements.
• Low Ambient Kit: Built-in for reliable operation in various temperatures.

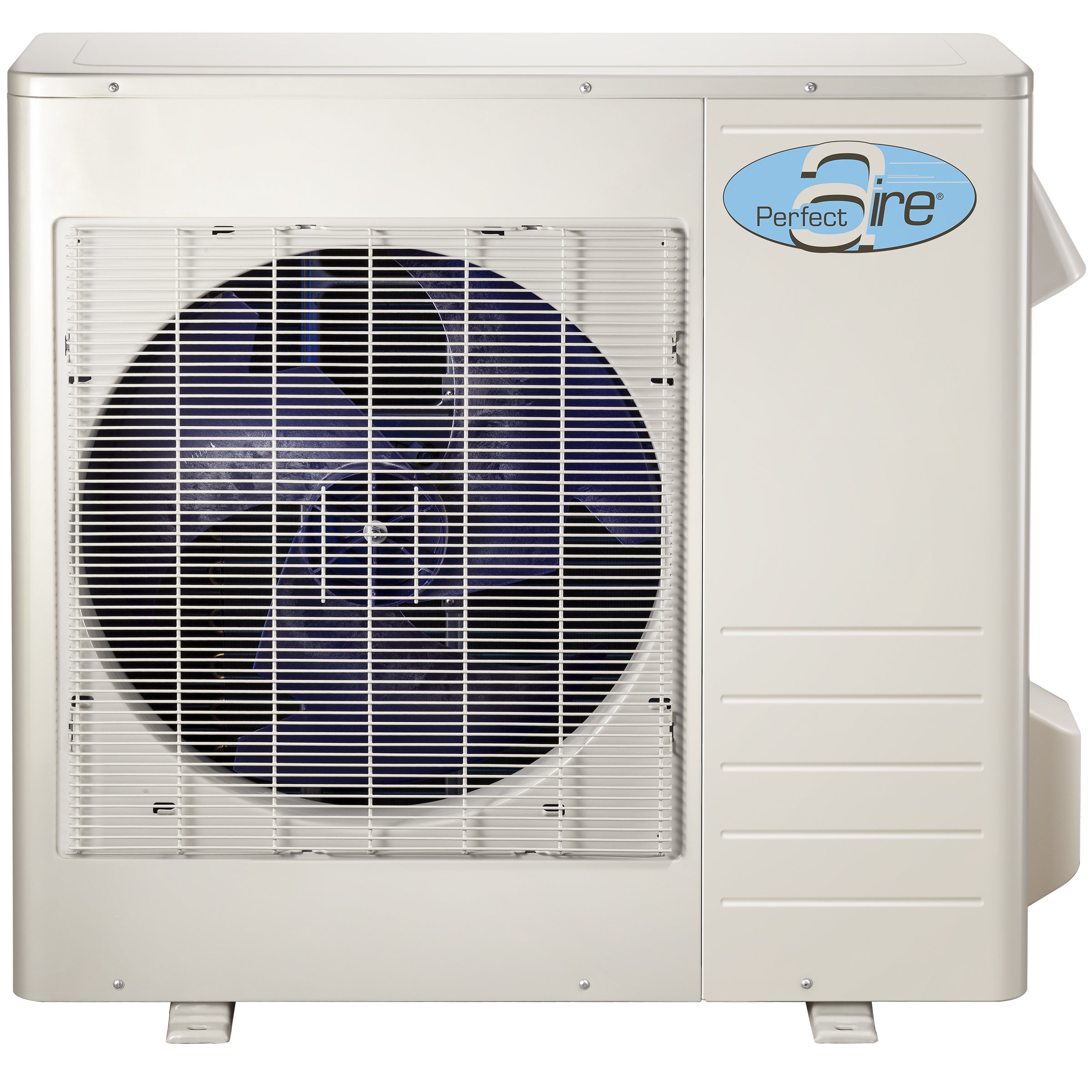

Figure 1: Perfect Aire 1PAMSH36-SZ0-14.5 Single-Zone Inverter Mini-Split Outdoor Unit. This image shows the exterior of the outdoor unit, typically installed outside a building.

4. Setup and Installation

This section outlines the general requirements for setting up your outdoor unit. Professional installation by a certified HVAC technician is strongly recommended to ensure proper function and safety.

4.1 Pre-Installation Checks

• Verify that you have the correct indoor unit (Model #1PAMSH36-SZW-14.5) for a complete system.
• Ensure the installation site is level and can support the unit's weight (approximately 181 lbs).
• Confirm adequate clearance around the unit for airflow and maintenance access.

4.2 Electrical Requirements

The outdoor unit requires a dedicated electrical circuit. Consult with a qualified electrician to ensure your electrical system meets these specifications:

• Power Supply: 208-230V
• Minimum Circuit Amp: 20A
• Maximum Fuse/HACR Circuit Breaker: 30A
• Recommended Cable Type: 14AWG

4.3 Refrigerant Piping

The unit uses R 410A refrigerant. All refrigerant piping connections must be made by a certified technician to prevent leaks and ensure system integrity.

5. Operating Instructions

The outdoor unit operates in conjunction with the indoor unit. All operational controls, such as setting temperature, mode (cooling/heating), and fan speed, are managed via the indoor unit's remote control.

• Remote Control: The system features a "Follow-Me" remote control with a built-in sensor, allowing the thermostat to read the temperature at the remote's location for improved comfort.
• Mode Selection: Select cooling, heating, fan-only, or dehumidification modes from the indoor unit's remote control.
• Temperature Setting: Adjust the desired temperature using the remote control.

Refer to the indoor unit's instruction manual for detailed operating procedures and remote control functions.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your Perfect Aire mini-split system. Always disconnect power to the unit before performing any maintenance.

6.1 Routine Checks

• Clean Outdoor Unit Coils: Periodically inspect and clean the outdoor unit's coils to remove dirt, leaves, and debris. The Golden-Fin hydrophilic condenser is designed for improved efficiency and corrosion resistance, but regular cleaning is still beneficial.
• Clear Obstructions: Ensure no vegetation or other objects are blocking the airflow around the outdoor unit.
• Inspect Refrigerant Lines: Visually check for any signs of damage or leaks in the refrigerant lines.

6.2 Professional Servicing

It is recommended to have a qualified HVAC technician perform annual professional servicing. This includes checking refrigerant levels, electrical connections, and overall system performance.

7. Troubleshooting

This section provides basic troubleshooting steps for common issues. For more complex problems, contact a qualified service technician.

Note: Always disconnect power to the unit before attempting any inspection or repair.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

This Perfect Aire outdoor unit comes with a 30-month full replacement warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use and service.

Note: Improper installation, unauthorized repairs, or failure to follow maintenance guidelines may void the warranty.

9.2 Customer Support

For technical assistance, warranty inquiries, or to locate authorized service providers, please contact Perfect Aire customer support. Refer to the official Perfect Aire website or your purchase documentation for current contact information.

Online Resources: Visit the PerfectAire Store on Amazon
