Introduction
Thank you for choosing the EGLO 94221 Integrated Interior Lamp. This modern, silver-colored lamp is designed to provide efficient and stylish lighting for your indoor spaces. Featuring an integrated LED module, it offers a high-quality finish and is suitable for energy efficiency classes A, A+, A++. This manual provides essential information for the safe installation, operation, and maintenance of your new lamp.

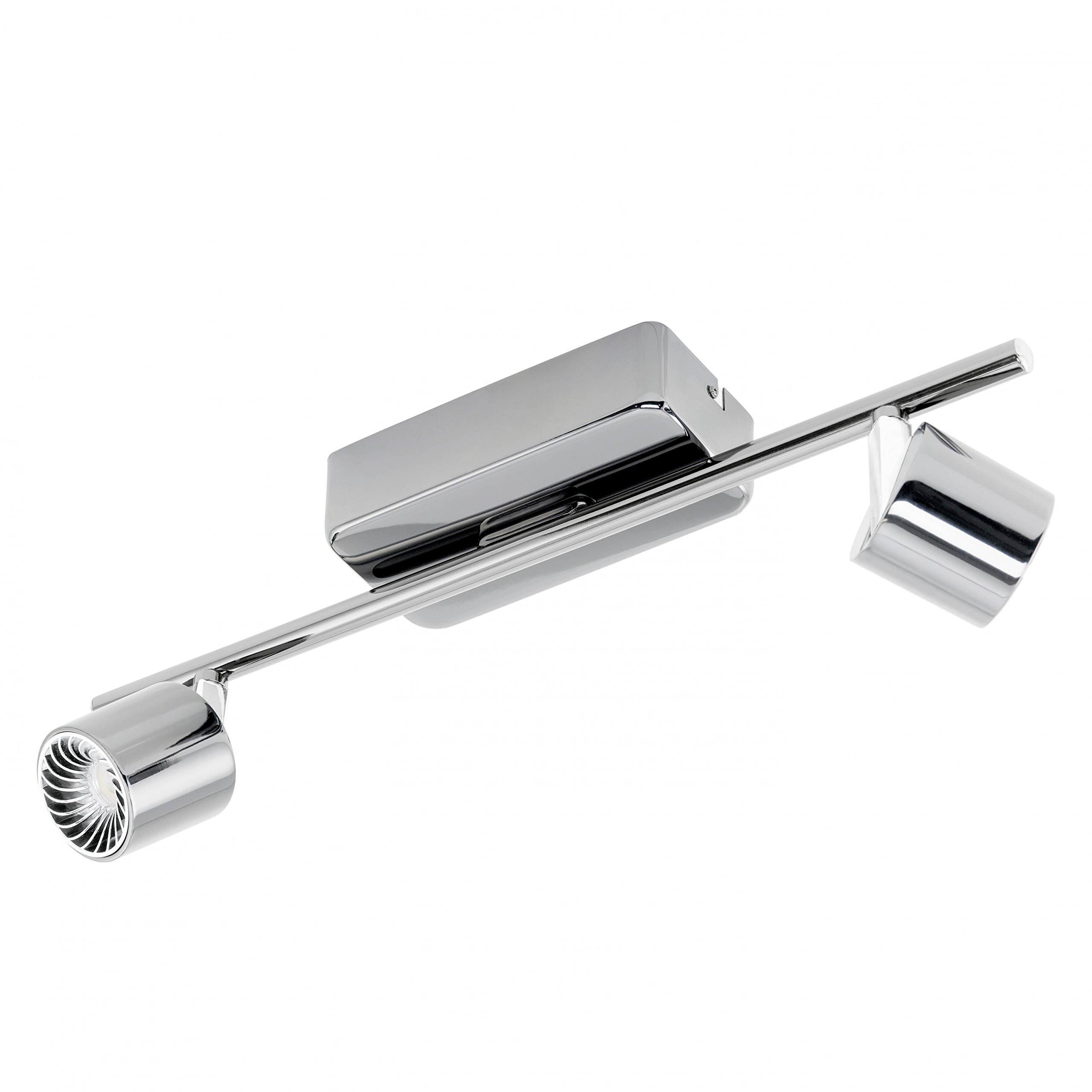

EGLO 94221 Integrated Interior Lamp, Silver. A silver-colored integrated interior lamp with two adjustable light heads, designed for modern spaces.
1. Setup and Installation
1.1 Safety Instructions
- WARNING: Always disconnect the main power supply before attempting any installation, maintenance, or repair work.
- Installation must be performed by a qualified electrician in accordance with local wiring regulations.
- Ensure the mounting surface can support the weight of the lamp.
- Do not modify the lamp in any way.
- This product is for indoor use only (IP20 rated). Do not expose to water or high humidity.
1.2 Unpacking
- Carefully remove all components from the packaging.
- Check for any damage during transit. Do not install if the product is damaged.
- Ensure all parts listed in the packing contents are present.
1.3 Mounting the Lamp
The EGLO 94221 is designed for ceiling mounting. Refer to the diagram below for dimensions.
Diagram showing the dimensions of the EGLO 94221 lamp: Length (L) 390mm, Width (B) 70mm.
- Mark the desired mounting position on the ceiling.
- Drill appropriate holes for the mounting bracket (not included, typically supplied with ceiling fixtures).
- Secure the mounting bracket to the ceiling using suitable screws and anchors.
1.4 Electrical Connection
- Connect the lamp's electrical wires to the main power supply wires according to the wiring diagram provided with the product (if applicable) and local electrical codes.
- Ensure correct polarity (Live, Neutral, Earth).
- Secure all connections properly using terminal blocks.
- Once wiring is complete, attach the lamp body to the mounting bracket.
- Restore power and test the lamp.
2. Operating Instructions
The EGLO 94221 lamp operates via a standard wall switch connected to your electrical circuit. Once installed and powered, simply use the wall switch to turn the lamp ON or OFF.
- Integrated LED Module: This lamp features an integrated LED module. The LEDs are not designed to be replaced by the user.
- Adjustable Light Heads: The two light heads can be adjusted to direct light as desired. Handle them gently when adjusting.
3. Maintenance
3.1 Cleaning
- WARNING: Always disconnect power before cleaning.
- Clean the lamp with a soft, dry, or slightly damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Ensure the lamp is completely dry before restoring power.
3.2 LED Module
The LED module in this lamp is integrated and has a long lifespan. It is not designed for user replacement. If the LED module fails, the entire fixture may need to be replaced. Contact customer support for assistance.
4. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power supply. Loose wiring connection. Faulty wall switch. | Check circuit breaker. Ensure power is restored. Verify all wiring connections are secure (with power off). Test the wall switch. |
| Lamp flickers. | Loose wiring. Incompatible dimmer switch (if applicable). | Check wiring connections (with power off). Ensure the lamp is not connected to an incompatible dimmer. This lamp is not specified as dimmable. |
| Lamp is damaged. | Physical impact. Manufacturing defect. | Disconnect power immediately. Do not use. Contact customer support for replacement or repair. |
If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | Eglo |
| Manufacturer | EGLO |
| Model Number | 94221 |
| Protection Index (IP Rating) | IP20 (Indoor use only) |
| Style | Modern |
| Color | Silver |
| Material | Various materials |
| Number of Light Sources | 2 (integrated LED modules) |
| Voltage | 12 Volts |
| Bulb Type | LED (Integrated) |
| EU Energy Label | A+ |
| Electrical Power | 10 watts |
| Color Rendering Index (CRI) | 82 |
| Product Weight | 740 g |
| First Available Date | 8 June 2015 |
6. Warranty Information
EGLO products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of your warranty may vary based on your region and point of purchase. Please retain your proof of purchase for warranty claims.
The warranty typically covers manufacturing defects but does not cover damage resulting from improper installation, misuse, neglect, accidents, unauthorized repairs, or normal wear and tear. For detailed warranty information, please refer to the documentation provided with your purchase or visit the official Eglo website.
7. Customer Support
If you have any questions regarding the installation, operation, maintenance, or troubleshooting of your EGLO 94221 lamp, please do not hesitate to contact customer support.
- Manufacturer Website: For general information and support, visit the official Eglo website.
- Retailer Support: For purchase-specific inquiries, returns, or warranty claims, contact the retailer from whom you purchased the product.
- When contacting support, please have your product model number (94221) and proof of purchase readily available.
