1. Introduction
The JOYO JTA-05 Sweet Baby is a 5-watt all-tube guitar amplifier designed to deliver classic, warm, and dynamic guitar tones. This amplifier features a pure Class A circuit, hand-wired construction, and tube rectification, providing a responsive and expressive playing experience. It is ideal for practice, recording, and small jam sessions where authentic tube tone is desired at manageable volumes.
Key features include:
- 5-watt low-output Class A design.
- All-tube signal path with one 12AX7 preamp tube, one 6V6GT power tube, and one 5AR4 rectifier tube.
- Hand-wired circuitry for vintage tone and reliability.
- Equipped with a Celestion speaker for balanced sound reproduction.
- Responsive to guitar volume and tone controls for dynamic tonal shaping.
2. Safety Instructions
Please read and understand these safety instructions before operating the amplifier. Retain this manual for future reference.
- High Voltage: This amplifier contains high voltage components. Do not attempt to open the chassis or service the unit yourself. Refer all servicing to qualified personnel.
- Power Source: Connect the amplifier only to the specified power supply voltage indicated on the unit. Ensure the power cord is in good condition and properly grounded.
- Ventilation: Ensure adequate ventilation around the amplifier. Do not block ventilation openings. Avoid placing the unit on carpets or in enclosed spaces that could restrict airflow.
- Heat: Vacuum tubes generate heat during operation. Keep the amplifier away from heat sources and direct sunlight. Allow sufficient cooling time before moving or storing the unit after use.
- Moisture: Do not expose the amplifier to rain, moisture, or excessive humidity. Keep liquids away from the unit.
- Foreign Objects: Do not insert any objects into the amplifier's openings.
- Cleaning: Disconnect the power cord before cleaning. Use a dry, soft cloth. Do not use liquid or aerosol cleaners.
3. Package Contents
Verify that all items are present in the package:
- JOYO JTA-05 Sweet Baby All Tube Guitar Amplifier
- Power Cable
- Instruction Manual (this document)
4. Product Overview
The JOYO JTA-05 is a compact combo amplifier featuring a robust design and simple controls. Its all-tube circuitry provides a dynamic response and rich harmonic content.
Figure 4.1: Front view of the JOYO JTA-05 Sweet Baby amplifier. This image shows the amplifier's black textured casing, silver grille cloth, and the JOYO logo badge.
4.1 Front Panel Controls and Features

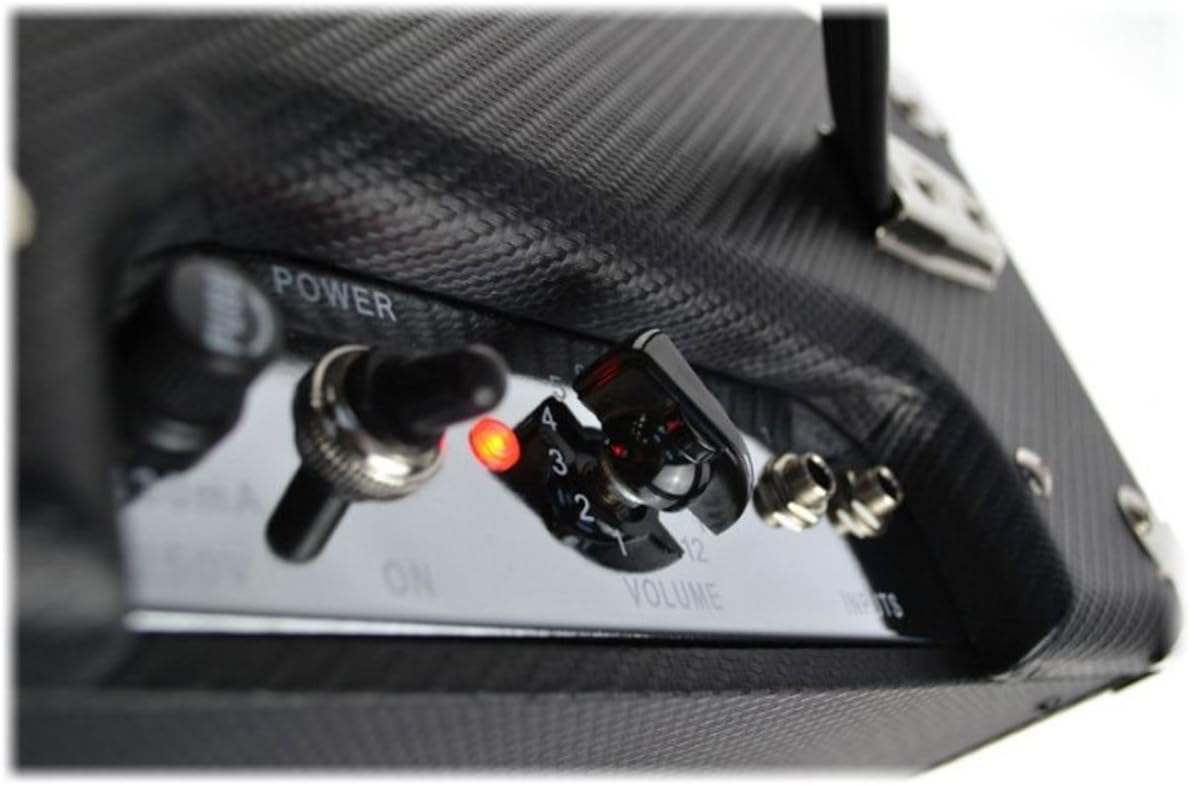

Figure 4.2: Close-up view of the amplifier's front panel controls. Visible controls include the Power switch, Volume knob, and Input jacks.
Figure 4.3: Top-down view of the amplifier's control panel, showing the Power switch, Volume knob, and Input jacks from above.
- Power Switch: Toggles the amplifier on and off. Allow a brief warm-up period after turning on.
- Volume Knob: Controls the overall output level of the amplifier. Turning this up will increase volume and introduce natural tube overdrive.
- Inputs: Two input jacks are typically provided, often with different sensitivities (e.g., high and low gain). Consult the specific unit for exact labeling.
4.2 Internal Components
Figure 4.4: Internal view of the amplifier, showcasing the vacuum tubes and the Celestion speaker. The 12AX7 preamp tube, 6V6GT power tube, and 5AR4 rectifier tube are visible.
Figure 4.5: A closer view of the amplifier's internal vacuum tubes and the Celestion speaker. This highlights the all-tube design and quality speaker component.
- 12AX7 Preamp Tube: Shapes the initial tone and gain.
- 6V6GT Power Tube: Provides the amplifier's output power and contributes significantly to its tonal character, especially when overdriven.
- 5AR4 Rectifier Tube: Delivers tube rectification, which contributes to the amplifier's vintage "sag" and dynamic response.
- Celestion Speaker: A high-quality speaker chosen for its tonal characteristics and ability to complement the amplifier's tube sound.
5. Setup
- Unpacking: Carefully remove the amplifier from its packaging. Inspect for any signs of damage during transit.
- Placement: Place the amplifier on a stable, level surface. Ensure there is sufficient space around the unit for proper ventilation, especially at the rear and top where heat dissipates. Avoid placing it near other heat-generating equipment.
- Power Connection: Ensure the amplifier's power switch is in the "OFF" position. Connect the supplied power cable to the amplifier's AC inlet and then to a grounded electrical outlet.
- Guitar Connection: Connect your guitar to one of the input jacks on the front panel using a high-quality instrument cable.
- Initial Settings: Before powering on, set the Volume knob to its lowest setting.
6. Operating Instructions
- Powering On: Flip the Power switch to the "ON" position. The indicator light will illuminate. Allow approximately 30-60 seconds for the tubes to warm up before playing.
- Adjusting Volume: Slowly increase the Volume knob to your desired listening level. The JTA-05 is designed to produce clean tones at lower volumes and natural tube overdrive as the volume is increased.
- Dynamic Tonal Control: This amplifier is highly responsive to your guitar's volume and tone controls.
- To achieve a clean tone when the amplifier's volume is set higher (where it might typically break up), roll down your guitar's volume knob.
- To return to an overdriven sound, simply roll your guitar's volume back up.
- Experiment with your guitar's tone controls to further shape the sound.
- Using Effects Pedals: The JTA-05 is designed to interact well with various effects pedals. Connect pedals between your guitar and the amplifier's input. Experiment with different pedal types (overdrive, distortion, modulation, delay) to find your preferred sound.
- Powering Off: Before turning off, it is recommended to lower the Volume knob. Then, flip the Power switch to the "OFF" position.
7. Maintenance
- Cleaning: Disconnect the amplifier from power before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners, solvents, or waxes.
- Tube Replacement: Vacuum tubes have a finite lifespan and will eventually need replacement. If you notice a decrease in performance, unusual noise, or a tube fails to glow, it may be time for replacement. Tube replacement should ideally be performed by a qualified technician due to high internal voltages. If replacing tubes yourself, ensure the amplifier is unplugged and allowed to cool completely. Handle tubes carefully, avoiding contact with the glass.
- Storage: When not in use for extended periods, store the amplifier in a dry, temperature-controlled environment, away from direct sunlight and extreme temperatures.
8. Troubleshooting
If you encounter issues with your JTA-05 amplifier, consult the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound |
|
|
| Weak or distorted sound |
|
|
| Excessive hum or noise |
|
|
If the problem persists after trying these steps, please contact JOYO customer support or a qualified service technician.
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | Sweet Baby Amp |
| Model Number | JTA-5 |
| Brand | JOYO |
| Output Wattage | 5 Watts |
| Preamp Tube | 1 x 12AX7 |
| Power Tube | 1 x 6V6GT |
| Rectifier Tube | 1 x 5AR4 |
| Speaker | Celestion (or equivalent high-quality speaker) |
| Compatible Devices | Guitar |
| Product Dimensions | 14.17 x 7.48 x 14.17 inches |
10. Warranty and Support
JOYO products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official JOYO website.
For technical support, service inquiries, or replacement parts, please contact your authorized JOYO dealer or JOYO customer service directly. Contact information can typically be found on the official JOYO website or in the product packaging.
Please have your model number (JTA-5) and purchase date available when contacting support.
