Holzmann MSM150 Metal Belt Sander User Manual

1. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this machine.

1.1 General Safety

• Read and understand all instructions before operating the machine.
• Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1.2 Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts.

1.3 Personal Protective Equipment (PPE)

• Always wear eye protection (safety glasses or goggles).
• Wear hearing protection (earplugs or earmuffs) during operation.
• Use appropriate respiratory protection (dust mask) when sanding materials that produce fine dust.
• Wear sturdy work gloves to protect hands.
• Do not wear loose clothing, jewelry, or long hair that could get caught in moving parts.

2. Product Overview

The Holzmann MSM150 is a robust metal belt sander designed for optimal sanding results on various metal workpieces. It features a high belt speed and a powerful drive for efficient material removal.

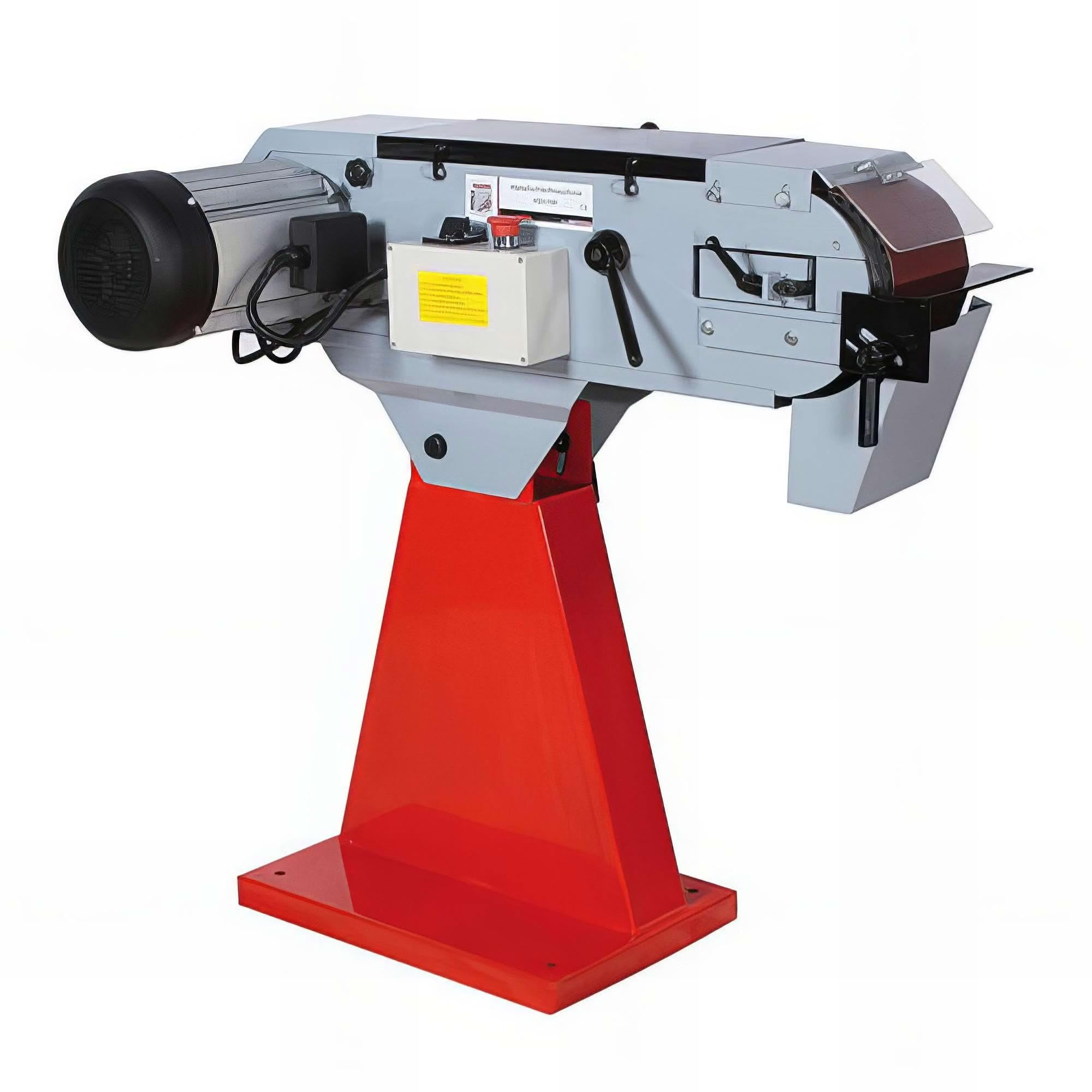

Figure 2.1: Holzmann MSM150 Metal Belt Sander. This image shows the complete belt sander unit, highlighting its sturdy construction and the main sanding area.

2.1 Components Included

The standard delivery includes the following components:

• Machine Support Stand
• Abrasive Belt
• Spark Guard
• Suction Hood

3. Setup

Proper setup ensures safe and efficient operation of your Holzmann MSM150 belt sander.

3.1 Unpacking and Inspection

1. Carefully remove all components from the packaging.
2. Inspect all parts for any damage that may have occurred during shipping. Report any damage to your supplier immediately.
3. Ensure all listed components in Section 2.1 are present.

3.2 Assembly

Assemble the machine support stand according to the diagrams in the separate assembly guide (if provided). Securely attach the sander unit to the stand. Install the spark guard and suction hood in their designated positions.

3.3 Electrical Connection

The Holzmann MSM150 operates on a 400V power supply. Ensure your electrical installation meets the required specifications and is equipped with appropriate circuit protection. Connect the machine to a suitable 400V outlet. Consult a qualified electrician if you are unsure about the electrical connection.

3.4 Installing the Abrasive Belt

1. Ensure the machine is disconnected from the power supply.
2. Locate the belt tension release mechanism.
3. Release the tension and slide the new abrasive belt (dimensions 2000 x 150 mm) onto the rollers. The belt change is designed to be easy and quick.
4. Re-engage the belt tension mechanism.
5. Perform a fine adjustment for perfect belt operation as described in Section 4.3.

4. Operating Instructions

Follow these steps for safe and effective operation of your belt sander.

4.1 Powering On/Off

• To turn on the machine, press the green 'ON' button.
• To turn off the machine, press the red 'OFF' button.
• Always ensure the machine is stable and the work area is clear before starting.

4.2 Speed Selection

The MSM150 offers two belt speeds: 18 m/s and 37 m/s. Select the appropriate speed based on the material and desired finish. Lower speeds are generally used for finer work or heat-sensitive materials, while higher speeds are for rapid material removal.

4.3 Adjustments

• Grinding Wheel Adjustment: The grinding wheel is orientable and features a quick adjustment mechanism. Loosen the locking mechanism, set the desired angle, and re-tighten.
• Belt Tracking Adjustment: Use the fine adjustment knob to ensure the abrasive belt runs centrally on the rollers, preventing it from running off or rubbing against the machine frame. Adjust while the machine is running at a low speed, if possible, and with extreme caution.

4.4 Working with the Sander

Present the workpiece to the abrasive belt with controlled pressure. The powerful drive ensures consistent performance. The running surface is coated with graphite to minimize friction and heat buildup, contributing to optimal sanding results.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Holzmann MSM150.

5.1 Cleaning

• Disconnect the machine from the power supply before cleaning.
• Regularly clean dust and debris from the machine, especially around the motor and belt area, using compressed air or a brush.
• Keep the graphite-coated running surface clean to maintain its low-friction properties.

5.2 Abrasive Belt Replacement

Replace the abrasive belt when it becomes worn or damaged. Refer to Section 3.4 for detailed instructions on installing a new belt.

5.3 General Inspection

• Periodically check all fasteners for tightness.
• Inspect the power cord for any signs of damage or wear.
• Ensure all safety guards are in place and functioning correctly.

6. Troubleshooting

This section addresses common issues you might encounter during operation.

6.1 Machine Does Not Start

• Check if the machine is properly connected to the 400V power supply.
• Verify that the emergency stop button (if present) is not engaged.
• Check the circuit breaker or fuse for the power outlet.

6.2 Poor Sanding Results

• The abrasive belt may be worn and needs replacement.
• Ensure the correct belt speed is selected for the material being sanded.
• Verify that the workpiece is presented to the belt with appropriate pressure.

6.3 Abrasive Belt Runs Off Track

• Perform a fine adjustment of the belt tracking as described in Section 4.3.
• Ensure the belt is installed correctly and tensioned properly.

7. Specifications

Technical data for the Holzmann MSM150 Metal Belt Sander.

8. Warranty and Support

For warranty information, technical support, or spare parts inquiries, please contact your authorized Holzmann dealer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Spare parts availability information is currently unavailable. Please contact your supplier for details.
