Carter Hoffmann 17020-2215 Gasket Instruction Manual

1. Product Overview

The Carter Hoffmann 17020-2215 Gasket is a genuine Original Equipment Manufacturer (OEM) replacement part designed for specific foodservice equipment, including models like 29038-5138. This gasket is crucial for maintaining the proper sealing and operational efficiency of your equipment. Carter Hoffmann specializes in manufacturing solutions for the foodservice industry, focusing on stainless steel fabrication and reliable components.

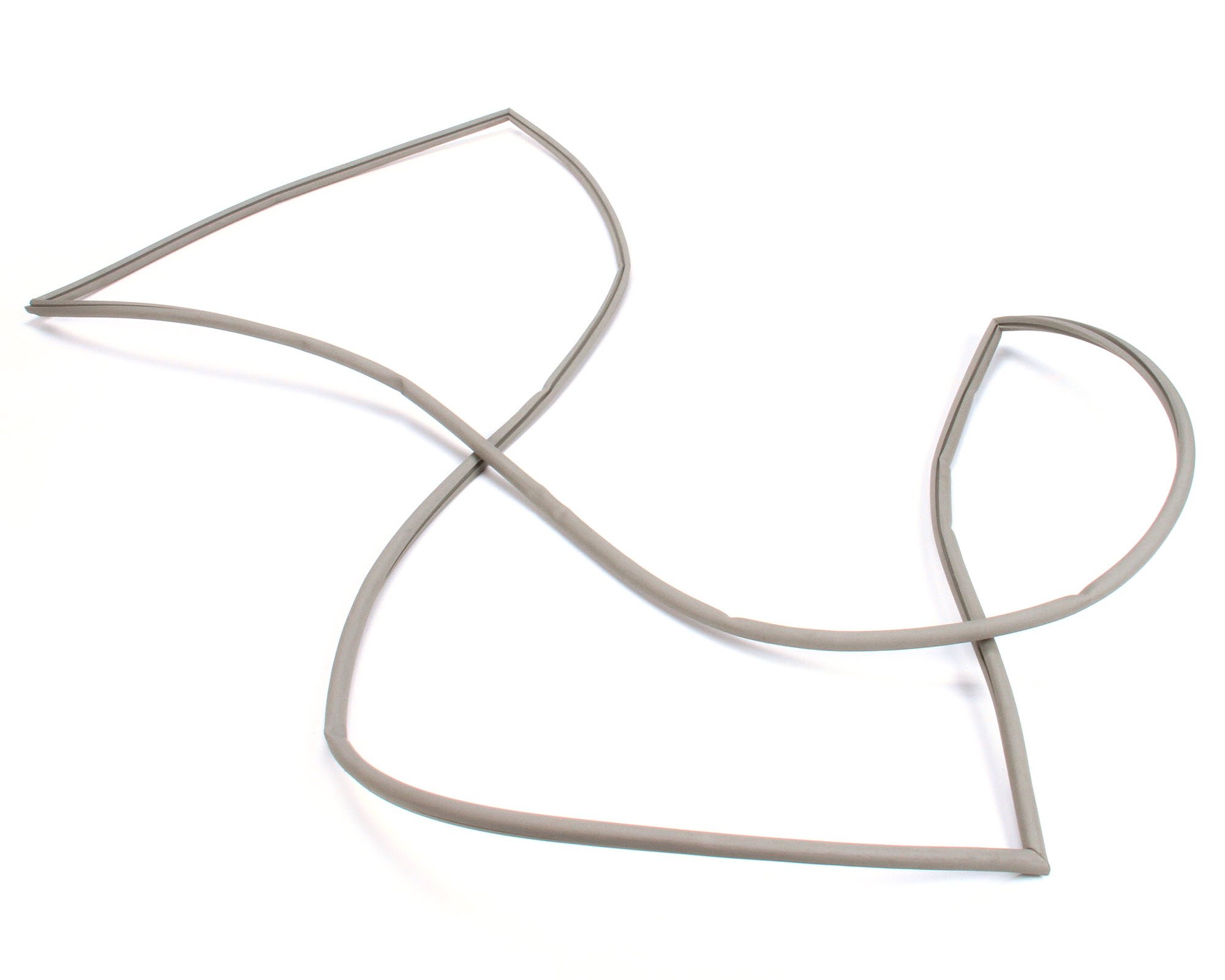

Figure 1: The Carter Hoffmann 17020-2215 Gasket. This image displays the flexible, grey gasket material formed into an irregular shape, indicating its specific design for a particular equipment component. The gasket is essential for creating a tight seal.

Using genuine OEM parts ensures safety, reliability, and optimal performance of your foodservice equipment. This gasket is engineered to meet the exact specifications of the original component, providing a precise fit and durable seal.

2. Installation

Proper installation of the Carter Hoffmann 17020-2215 Gasket is vital for its effectiveness and the overall performance of the equipment. It is recommended that installation be performed by a qualified service technician or an individual with experience in foodservice equipment maintenance.

General Installation Guidelines:

1. Safety First: Always disconnect power to the equipment before beginning any installation or maintenance procedures. Allow hot surfaces to cool completely.
2. Remove Old Gasket: Carefully remove the old or damaged gasket. Note its orientation and how it was seated to assist with the new installation. Clean the gasket channel thoroughly, removing any debris, adhesive residue, or corrosion.
3. Inspect New Gasket: Before installation, inspect the new Carter Hoffmann 17020-2215 Gasket for any signs of damage, kinks, or manufacturing defects.
4. Positioning: Carefully fit the new gasket into the designated channel or groove on the equipment. Ensure it is seated evenly and completely around the entire perimeter. Avoid stretching or compressing the gasket excessively during installation, as this can compromise its sealing ability.
5. Secure (if applicable): If the gasket requires clips, adhesive, or other securing mechanisms, ensure they are properly applied according to the equipment's specific service manual.
6. Test: After installation, close the equipment door or component and check for a proper seal. For heated equipment, monitor for heat loss or steam leaks during initial operation.

Refer to your specific equipment's service manual for detailed, model-specific installation instructions and any special tools required.

3. Function and Usage

The Carter Hoffmann 17020-2215 Gasket is a passive component designed to create a tight seal between two surfaces, typically a door and a frame, or between two mating parts of equipment. Its primary function is to prevent the escape of heat, steam, or other substances, and to prevent the ingress of ambient air or contaminants.

• Heat Retention: In heated equipment, the gasket helps maintain consistent internal temperatures, improving energy efficiency and cooking/holding performance.
• Moisture Control: It prevents steam or moisture from escaping, which is critical for certain cooking processes or for maintaining humidity levels.
• Hygiene: A proper seal prevents food particles, grease, and other debris from accumulating in crevices, contributing to better sanitation.

The gasket operates continuously as long as the equipment is in use and the sealed components are closed. No direct user interaction is required for its
