Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Hikvision DS-7316HQHI-SH-24TB TRIBRID DVR. Please read this manual thoroughly before using the device to ensure proper and safe operation.
The Hikvision DS-7316HQHI-SH-24TB is a 16-channel TRIBRID Digital Video Recorder, supporting Turbo HD, analog, and IP camera inputs. It features H.264 video compression, 1080P real-time recording, and includes a 24TB hard drive for extensive storage.
Product Overview
The Hikvision DS-7316HQHI-SH-24TB DVR is designed for advanced surveillance systems, offering versatile connectivity and high-capacity storage. Below are key views of the device.

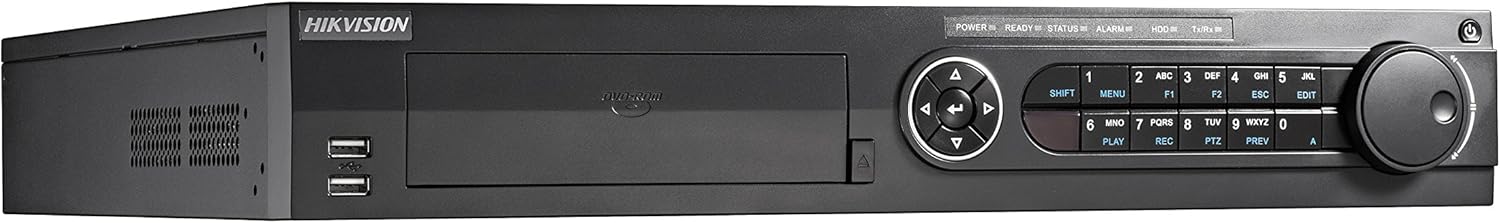

Figure 1: Front and side view of the Hikvision DS-7316HQHI-SH-24TB TRIBRID DVR. This image displays the front panel with control buttons, USB ports, and the Hikvision branding.
Figure 2: Detailed front panel view of the Hikvision DS-7316HQHI-SH-24TB TRIBRID DVR. This shows the power indicator, status lights, and the array of control buttons and jog dial.
Figure 3: Rear panel view of the Hikvision DS-7316HQHI-SH-24TB TRIBRID DVR. This image highlights the various input/output ports including video inputs, audio inputs, HDMI, VGA, Ethernet, USB, and power input.
Setup Instructions
1. Unpacking and Inspection
Carefully unpack the DVR and all accessories. Verify that all components are present and undamaged. If any items are missing or damaged, contact your vendor immediately.
2. Connecting Peripherals
- Connect Cameras: Connect your Turbo HD, analog, or IP cameras to the appropriate video input ports on the rear panel. The DVR supports 16 channels.
- Connect Monitor: Use an HDMI or VGA cable to connect a monitor to the corresponding output port on the DVR.
- Connect Mouse/Keyboard: Plug the USB mouse into one of the USB ports on the front or rear panel.
- Network Connection: Connect an Ethernet cable from your router/switch to the LAN port on the DVR for network access and remote viewing.
- Power Connection: Connect the power adapter to the DVR's power input and then to a power outlet.
3. Initial Power On and Configuration
After connecting all peripherals, power on the DVR. Follow the on-screen prompts for initial setup, which typically includes:
- Setting up an administrator password.
- Configuring date and time settings.
- Network settings (DHCP or static IP).
- Hard drive initialization (if prompted).
- Camera detection and configuration.
Operating Instructions
Live View
Once the DVR is powered on and configured, the live view of connected cameras will be displayed on the monitor. You can switch between single-camera view and multi-camera grid views using the on-screen interface or front panel controls.
Recording
The DVR is configured for continuous recording by default. You can adjust recording schedules, motion detection settings, and alarm recording options through the system menu. Access the menu by right-clicking on the live view screen and selecting "Menu".
Playback
To review recorded footage:
- From the main menu, select "Playback".
- Choose the camera(s) and date/time range you wish to review.
- Use the playback controls (play, pause, fast forward, rewind) to navigate through the footage.
Remote Access
To access your DVR remotely via a mobile app or web browser:
- Ensure the DVR is connected to the internet.
- Configure network settings, including port forwarding if necessary, or enable Hik-Connect/P2P service.
- Download the Hik-Connect app on your smartphone or access the DVR via its IP address in a web browser.
- Follow the app/web interface instructions to add your device using its serial number or QR code.
Maintenance
Regular Cleaning
Keep the DVR free from dust and debris. Use a soft, dry cloth to clean the exterior. Do not use liquid cleaners or aerosols directly on the device.
Firmware Updates
Periodically check the Hikvision official website for firmware updates. Keeping your DVR's firmware up-to-date ensures optimal performance, security, and access to new features. Follow the provided instructions carefully when performing updates.
Hard Drive Management
The 24TB hard drive provides ample storage. The DVR will automatically overwrite the oldest footage when the drive is full. Regularly back up critical footage to external storage if needed.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No video output on monitor. | Loose cable connection, incorrect monitor input, DVR not powered on. | Check HDMI/VGA cable connections. Ensure monitor is set to correct input. Verify DVR power indicator is on. |
| Cameras not displaying. | Camera power issue, cable issue, incorrect camera type selected. | Check camera power supply and video cables. Ensure camera type (Turbo HD/Analog/IP) matches DVR settings. |
| Cannot access DVR remotely. | Network configuration issues, internet connectivity problems, incorrect app settings. | Verify DVR has internet access. Check network settings (IP address, gateway, DNS). Ensure port forwarding or P2P service is correctly configured. Re-add device to app if necessary. |
| Recording not working. | Hard drive not initialized, recording schedule not set, hard drive full. | Check hard drive status in system settings and initialize if needed. Verify recording schedule. Ensure hard drive is not full (it should overwrite automatically, but check for errors). |
Specifications
| Feature | Detail |
|---|---|
| Model Number | DS-7316HQHI-SH-24TB |
| Channels | 16 Channel (TRIBRID: Turbo HD/Analog + IP) |
| Video Compression | H.264 |
| Recording Resolution | 1080P Real-Time |
| Hard Disk Size | 24 TB |
| Connectivity Technology | HDMI, VGA, Ethernet, USB |
| Compatible Devices | Cameras |
| Product Dimensions | 15.35 x 17.52 x 2.76 inches |
| Item Weight | 1 pounds |
| Manufacturer | HIKVISION USA |
| Date First Available | June 13, 2015 |
Warranty and Support
For warranty information and technical support, please refer to the official Hikvision website or contact your authorized Hikvision dealer. Keep your purchase receipt and product serial number handy when seeking support.
Hikvision Official Website: www.hikvision.com
