1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Team Associated FT 3x27.5 Shock Shaft V2. This component is designed for use in compatible RC vehicles, specifically as a replacement or upgrade for the shock absorber system. Please read this manual thoroughly before proceeding with any installation or use to ensure optimal performance and safety.
The Team Associated FT 3x27.5 mm Shock Shafts (V2) are chrome-finished components, identified by part number ASC91620, engineered for durability and precise fit within your RC vehicle's suspension.
2. Safety Information
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
3. Product Overview

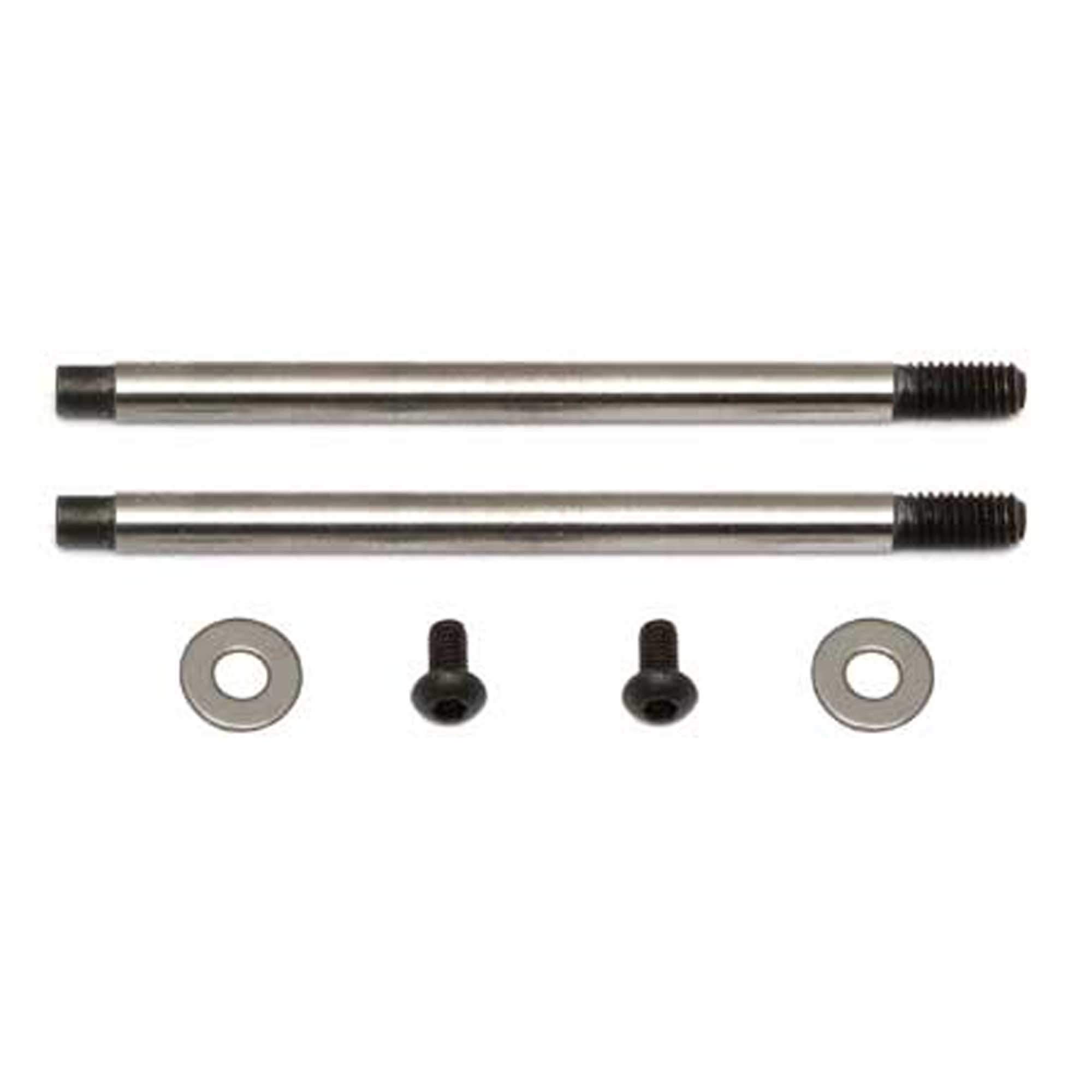

Image: Team Associated FT 3x27.5 Shock Shaft V2, Chrome. This image displays the chrome-finished shock shaft, highlighting its design and material.
3.1 What's in the Box
- FT 3x27.5 mm Shock Shafts (V2), Chrome
4. Setup & Installation
The shock shaft is a critical component of your RC vehicle's suspension system. Proper installation is essential for performance and durability.
4.1 Required Tools (Not Included)
- Small Phillips head screwdriver
- Hex wrenches (various sizes, specific to your RC vehicle)
- Pliers (with soft jaws to prevent damage)
- Shock oil (if rebuilding the entire shock absorber)
- Clean cloth
4.2 Installation Steps
- Disassembly: Carefully remove the existing shock absorber from your RC vehicle. Refer to your vehicle's specific manual for detailed disassembly instructions.
- Shock Disassembly: Disassemble the shock absorber, paying close attention to the order of components. This typically involves removing the shock cap, spring, and then the lower shock end to extract the old shaft.
- Inspection: Inspect all other shock components (O-rings, pistons, shock body, shock cap) for wear or damage. Replace any worn parts as necessary.
- New Shaft Installation: Insert the new Team Associated FT 3x27.5 Shock Shaft V2 into the shock body. Ensure the piston is correctly seated on the shaft.
- Reassembly: Reassemble the shock absorber in reverse order of disassembly. Ensure all O-rings are properly lubricated with shock oil to prevent leaks and ensure smooth operation.
- Bleeding (if applicable): If you have refilled the shock with oil, follow proper bleeding procedures to remove air bubbles.
- Reinstallation: Reinstall the complete shock absorber onto your RC vehicle, ensuring all mounting points are secure.
- Testing: Gently compress and extend the suspension to check for smooth movement and proper function.
Always consult your specific RC vehicle's instruction manual for detailed shock assembly and disassembly procedures, as designs can vary.
5. Operating Guidelines
The shock shaft itself is a passive component within the shock absorber. Its primary function is to provide a smooth, rigid rod for the piston to move along, facilitating the damping action of the shock. Once installed, its operation is integral to the overall suspension performance of your RC vehicle.
- Smooth Movement: A properly installed shock shaft ensures the shock piston moves smoothly within the shock body, allowing for consistent damping.
- Suspension Performance: The integrity of the shock shaft directly impacts the vehicle's handling, stability, and ability to absorb impacts.
- Avoid Bending: Operating your RC vehicle within its design limits helps prevent excessive stress on the shock shafts, reducing the risk of bending or damage.
6. Maintenance
Regular maintenance of your shock shafts and the entire shock absorber system will prolong their lifespan and maintain optimal performance.
- Cleaning: After each use, especially in dirty or dusty conditions, clean the exposed portion of the shock shafts with a soft, clean cloth to remove dirt and debris. This prevents contaminants from entering the shock seals.
- Inspection: Periodically inspect the shock shafts for any signs of bending, nicks, scratches, or chrome flaking. Even minor damage can lead to premature wear of O-rings and shock leaks.
- O-Ring Replacement: If you notice oil leaks or inconsistent damping, the shock O-rings may need replacement. This is a good opportunity to inspect the shock shaft.
- Shock Oil: Replace shock oil regularly according to your RC vehicle's maintenance schedule. Fresh oil ensures consistent damping and lubricates internal components.
- Storage: Store your RC vehicle in a clean, dry environment to prevent corrosion and material degradation.
7. Troubleshooting
Here are some common issues related to shock shafts and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Shock feels stiff or binds | Bent shock shaft, damaged O-rings, dirt in shock body. | Inspect shaft for bends; replace if necessary. Clean and replace O-rings. Disassemble and clean shock body. |
| Oil leaking from shock | Damaged O-rings, scratched or nicked shock shaft. | Replace O-rings. Inspect shock shaft for damage; replace if surface is compromised. |
| Inconsistent damping | Air bubbles in shock oil, worn piston, bent shaft. | Bleed shocks to remove air. Inspect and replace piston. Check shaft for bends. |
8. Specifications
Key specifications for the Team Associated FT 3x27.5 Shock Shaft V2 (ASC91620):
- Brand: Team Associated
- Model Number: ASC91620
- Dimensions: 3x27.5 mm (Diameter x Length)
- Material: Alloy Steel
- Exterior Finish: Chrome
- Item Weight: Approximately 0.32 ounces (0.02 Pounds)
- Product Dimensions: 3.3 x 1.7 x 0.14 inches
- UPC: 784695916203
- Manufacturer Recommended Age: 14 years and up
9. Warranty & Support
Team Associated products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your original RC vehicle kit or visit the official Team Associated website. Warranty terms typically cover manufacturing defects.
For technical support, replacement parts, or further assistance, please contact Team Associated customer service directly. Contact information can usually be found on their official website or in your RC vehicle's main instruction manual.
It is recommended to purchase genuine Team Associated replacement parts to ensure compatibility and maintain product performance.
