1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Modern Forms Hiline 8in LED Indoor or Outdoor Wall Light, model WS-W2308-BK. Please read these instructions thoroughly before beginning installation and retain them for future reference.
2. Safety Information
WARNING: Risk of Electric Shock. Disconnect power at the circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes and ordinances, National Electric Code (NEC), and Canadian Electrical Code (CEC).
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure the fixture is properly grounded.
- Do not install near flammable materials.
- This product is suitable for wet locations.
3. Package Contents
Verify that all components are present before beginning installation:
- Complete Light Fixture (Modern Forms Hiline 8in LED Wall Light)
- Integrated LED Light Module
- Mounting Hardware
- Instruction Manual (this document)

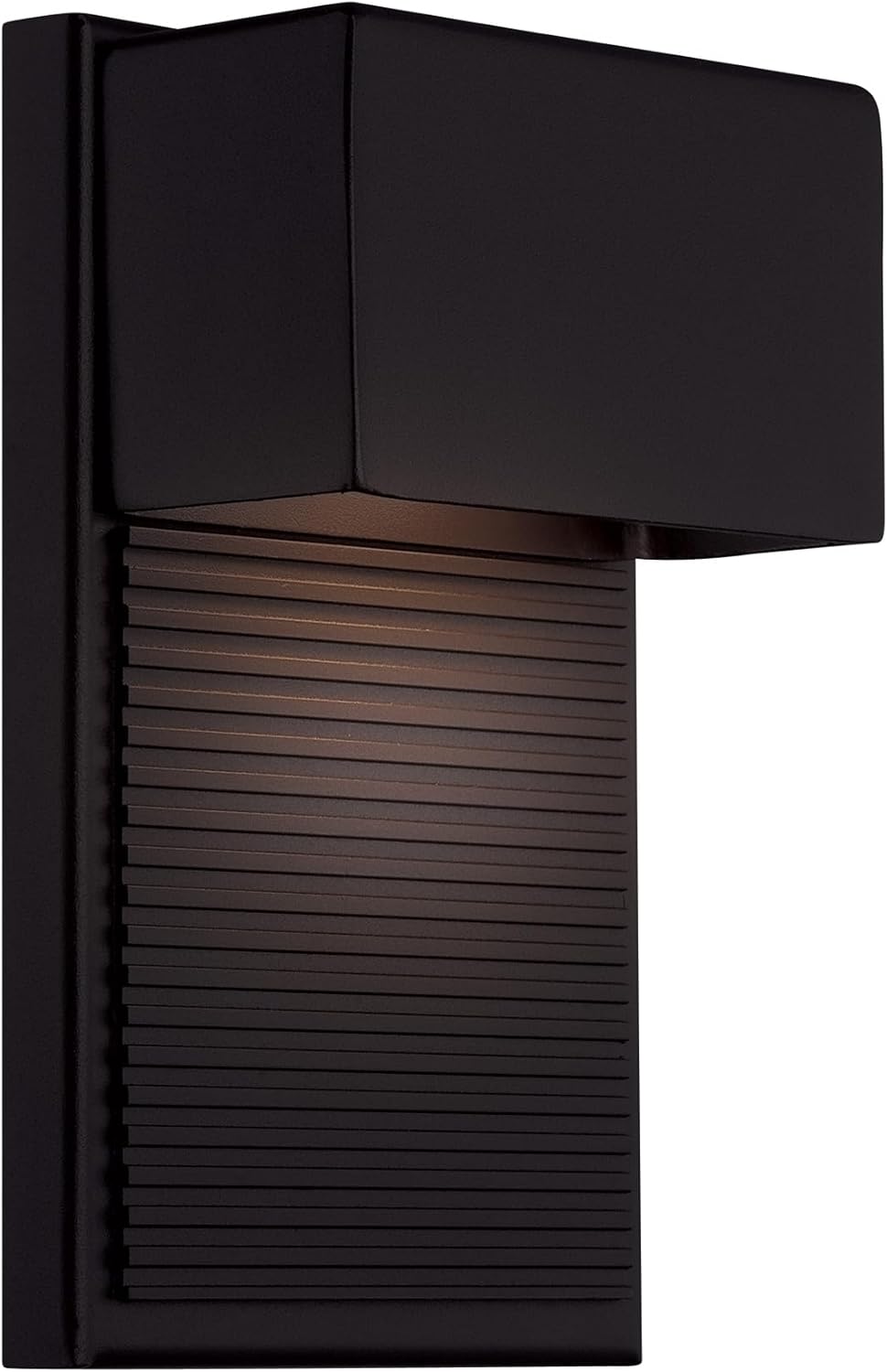

Figure 1: Front view of the Modern Forms Hiline 8in LED Wall Light. This image shows the sleek black aluminum housing with the etched glass light shield, highlighting its modern design.
4. Specifications
| Attribute | Value |
|---|---|
| Brand | Modern Forms |
| Model Name | Hiline |
| Model Number | WS-W2308-BK |
| Color | Black |
| Material | Aluminum (Fixture), Glass (Shade) |
| Product Dimensions | 5"L x 2.8"W x 8"H |
| Indoor/Outdoor Usage | Outdoor (also suitable for indoor) |
| Power Source | AC |
| Light Source Type | Integrated LED |
| Color Temperature | 3000K (Warm White) |
| Wattage | 8 watts |
| Voltage | 120 Volts |
| Brightness | 280 Lumens |
| CRI | 85 |
| Rated Hours | 50,000 hours |
| Dimming | Smooth and continuous with ELV dimmer |
| Water Resistance Level | Water Resistant (IP44, UL 1598 listed for wet locations) |
| Special Features | ADA compliant, Low profile design, Dark Sky Friendly, Energy Efficient LEDs |
Figure 2: Dimensional drawing of the Hiline wall light. This diagram illustrates the length, width, and height of both the 8-inch (WS-W2308) and 12-inch (WS-W2312) models, crucial for planning installation space.
5. Installation Instructions
Before installation, ensure power is disconnected at the circuit breaker. This fixture is designed for surface mount installation and easily fits on a standard pancake junction box.
5.1 Tools Required (Not Included)
- Screwdriver (Phillips and/or Flathead)
- Wire Strippers
- Electrical Tape
- Pliers
- Voltage Tester
5.2 Mounting Steps
- Turn Off Power: Locate the circuit breaker controlling the light fixture location and turn it OFF. Verify power is off using a voltage tester.
- Prepare Mounting Surface: Ensure the junction box is securely installed and flush with the wall surface.
- Connect Wiring:
- Connect the fixture's black wire to the supply circuit's black (hot) wire.
- Connect the fixture's white wire to the supply circuit's white (neutral) wire.
- Connect the fixture's ground wire to the supply circuit's ground wire (bare copper or green).
- Secure all wire connections with approved wire connectors and electrical tape.
- Mount Fixture: Align the fixture with the junction box and secure it using the provided mounting hardware. Ensure the fixture is flush against the wall and stable.
- Seal (Outdoor Use): For outdoor installations, apply a weather-resistant sealant around the perimeter of the fixture where it meets the mounting surface to prevent water intrusion.
- Restore Power: Once installation is complete and all connections are secure, turn the power back ON at the circuit breaker.
Figure 3: Side view of the Hiline wall light. This perspective highlights the low-profile design and the depth of the fixture, which is important for ADA compliance and aesthetic integration.
6. Operation
The Modern Forms Hiline LED Wall Light operates via a standard wall switch. For dimming functionality, ensure you have an electronic low voltage (ELV) dimmer switch installed in your electrical system.
- On/Off: Toggle the wall switch to turn the light fixture on or off.
- Dimming: If connected to an ELV dimmer, adjust the dimmer control to achieve the desired light intensity. The fixture provides smooth and continuous dimming.
Figure 4: The Hiline wall light illuminated. This image demonstrates the warm white (3000K) light output and how it casts light both upwards and downwards, creating an inviting ambiance.
7. Maintenance
The Modern Forms Hiline LED Wall Light is designed for long-lasting performance with minimal maintenance.
- Cleaning: To clean the fixture, ensure power is off. Use a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or electrical components.
- LED Module: The integrated LED module is designed for 50,000 hours of operation and is not user-replaceable. If the LED module fails within the warranty period, contact customer support.
Figure 5: Close-up view of the integrated LED light source. This image shows the internal LED array and the etched glass diffuser, which helps to provide a smooth and even light distribution.
8. Troubleshooting
If you experience issues with your Modern Forms Hiline LED Wall Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wiring connection. Faulty wall switch. | Check circuit breaker and ensure it is ON. Verify all wire connections are secure (with power off). Test the wall switch or replace if necessary. |
| Light flickers or dims inconsistently. | Incompatible dimmer switch. Loose wiring connection. | Ensure an ELV dimmer is used. Replace if necessary. Check and secure all wiring connections (with power off). |
| Light output is lower than expected. | Dimmer setting too low. Dust or debris on the light shield. | Adjust the dimmer to maximum brightness. Clean the light shield with a soft, damp cloth (with power off). |
If troubleshooting steps do not resolve the issue, contact Modern Forms customer support.
9. Warranty and Support
This Modern Forms Hiline LED Wall Light is covered by a 5-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or replacement parts, please contact Modern Forms customer service. You may need to provide your proof of purchase and the product model number (WS-W2308-BK).
For more information, visit the official Modern Forms website or refer to your purchase documentation.
