1. Introduction
Thank you for purchasing the WAC Lighting WS-W2717-BZ Spire 17" LED Outdoor Wall Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.
2. Safety Information
- WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing.
- All electrical connections must be in accordance with local and National Electrical Code (NEC) standards. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- This fixture is intended for outdoor use and must be properly grounded.
- Do not install this fixture on surfaces that are not structurally sound.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create a safety hazard.
- Handle the glass diffuser with care to prevent breakage.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x WAC Lighting WS-W2717-BZ Spire 17" LED Outdoor Wall Light Fixture
- Mounting Hardware (screws, wire nuts, etc.)
- Instruction Sheet (this document)
4. Setup and Installation
Follow these steps to properly install your WAC Lighting Spire LED Outdoor Wall Light:
- Prepare for Installation: Turn off power at the main circuit breaker or fuse box to avoid electrical shock.
- Mounting Location: Select a suitable wall-mount location. The fixture is ADA compliant and features a low-profile design. Ensure the mounting surface is clean and dry.
- Attach Mounting Bracket: Secure the mounting bracket (included) to the junction box using the provided screws. Ensure the bracket is level and firmly attached.
- Electrical Connections:
- Connect the fixture's black wire to the supply circuit's black (hot) wire.
- Connect the fixture's white wire to the supply circuit's white (neutral) wire.
- Connect the fixture's ground wire to the supply circuit's ground wire.
- Secure all connections with wire nuts and ensure no bare wires are exposed. The driver for this LED luminaire is located inside the outlet box.
- Secure the Fixture: Carefully align the fixture with the mounting bracket and secure it using the provided screws. Ensure the fixture is flush against the wall and stable.
- Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker.
Figure 1: Product Dimensions (Side and Front View)

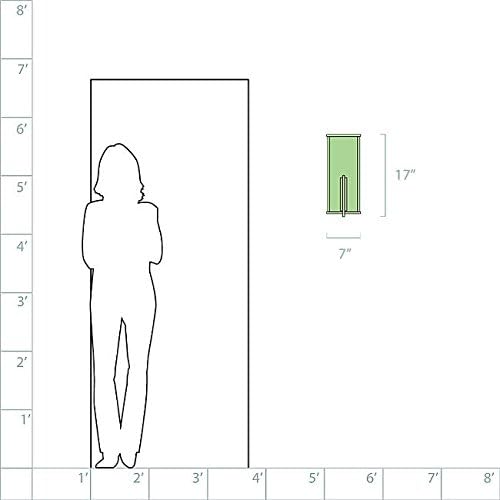

Figure 2: Product Dimensions (Scale Comparison)
5. Operating Instructions
The WAC Lighting Spire LED Outdoor Wall Light is designed for straightforward operation:
- Power On/Off: The fixture will illuminate when power is supplied to the circuit it is connected to. Use a standard wall switch to control the power.
- Dimming: This luminaire supports smooth and continuous dimming when used with an electronic low voltage (ELV) dimmer. Ensure your dimmer is compatible with LED fixtures.
6. Maintenance
To ensure the longevity and optimal performance of your LED outdoor wall light, follow these maintenance guidelines:
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth to wipe the exterior of the fixture. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- LED Module: The fixture features a replaceable high-powered LED module with a rated life of 60,000 hours. If replacement becomes necessary, contact WAC Lighting customer support for assistance or qualified service.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Address any issues promptly.
7. Troubleshooting
If you encounter issues with your WAC Lighting Spire LED Outdoor Wall Light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wiring connection. Faulty switch. |
Check circuit breaker/fuse. Verify all wire connections are secure (power off first). Test the switch with another device. |
| Light flickers or dims inconsistently. | Incompatible dimmer switch. Loose wiring. |
Ensure an ELV dimmer is used and is compatible with LED. Check all electrical connections (power off first). |
| Reduced light output. | Dirt or debris on diffuser. Aging LED module. |
Clean the glass diffuser. Contact WAC Lighting for LED module replacement. |
If these steps do not resolve the issue, please contact WAC Lighting customer support.
8. Specifications
| Manufacturer | WAC Lighting |
| Part Number | WS-W2717-BZ |
| Item Model Number | WS-W2717-BZ |
| Product Dimensions | 4 x 7 x 17 inches |
| Item Weight | 1.65 pounds |
| Color | Bronze |
| Style | Modern |
| Material | Aluminum, Bronze, Glass |
| Power Source | Corded Electric |
| Voltage | 120 Volts (277V option available as special order) |
| Wattage | 27 watts |
| Type of Bulb | LED (High Powered LED Module) |
| Luminous Flux | 1566 Lumen |
| CRI | 90 |
| Color Temperature | 3000K |
| Rated Life | 60,000 hours |
| Mounting Type | Wall Mount |
| Included Components | Fixture, mounting hardware, instruction sheet |
9. Warranty Information
WAC Lighting provides the following warranty for this product:
- Functional Warranty: 5 years
- Finish Warranty: 2 years
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, visit the official WAC Lighting website or contact customer support.
10. Support
For further assistance, technical support, or to inquire about replacement parts, please contact WAC Lighting directly:
- WAC Lighting Website: www.waclighting.com
- Refer to the product packaging or the WAC Lighting website for the most current contact information.
