SEVERIN KA 5978
SEVERIN Espresso Machine KA 5978 - User Manual
Model: KA 5978
Brand: SEVERIN
Introduction
This manual provides essential information for the safe and efficient operation of your SEVERIN Espresso Machine KA 5978. Please read it thoroughly before first use and keep it for future reference.
The SEVERIN KA 5978 is a compact espresso machine designed for preparing aromatic espresso and various coffee-milk specialties, featuring an integrated milk frother and a glass carafe for up to 4 cups.
Important Safety Instructions
- Read all instructions carefully before use.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Scalding may occur if the water tank lid is removed during the brewing cycle.
Components Overview
Familiarize yourself with the parts of your SEVERIN Espresso Machine KA 5978.
Setup
1. Unpacking and First Use
Carefully remove all packaging materials. Clean all removable parts (glass carafe, filter holder, drip tray) with warm soapy water and rinse thoroughly. Wipe the main unit with a damp cloth.
2. Filling the Water Tank
Unscrew the cap on top of the machine. Fill the glass carafe with fresh, cold water up to the desired mark (e.g., 4 cups for a full carafe). Pour the water into the water tank. Securely screw the cap back on.
Video 1: How to Use. This video demonstrates the process of filling the water tank and preparing the machine for use.
3. Preparing the Filter Holder
Insert the appropriate filter (for 1 or 2-4 cups) into the filter holder. Add ground espresso coffee using the measuring spoon provided. Level the coffee gently without compacting it too much. Attach the filter holder to the machine by aligning it and turning it to the right until it locks into place.
Operating Instructions
1. Making Espresso
Ensure the water tank is filled and the filter holder is securely attached with ground coffee. Place the glass carafe under the filter holder. Turn the control knob to the coffee cup symbol. The indicator light will illuminate, and brewing will begin. Once the desired amount of espresso is brewed, turn the control knob to the "OFF" position.

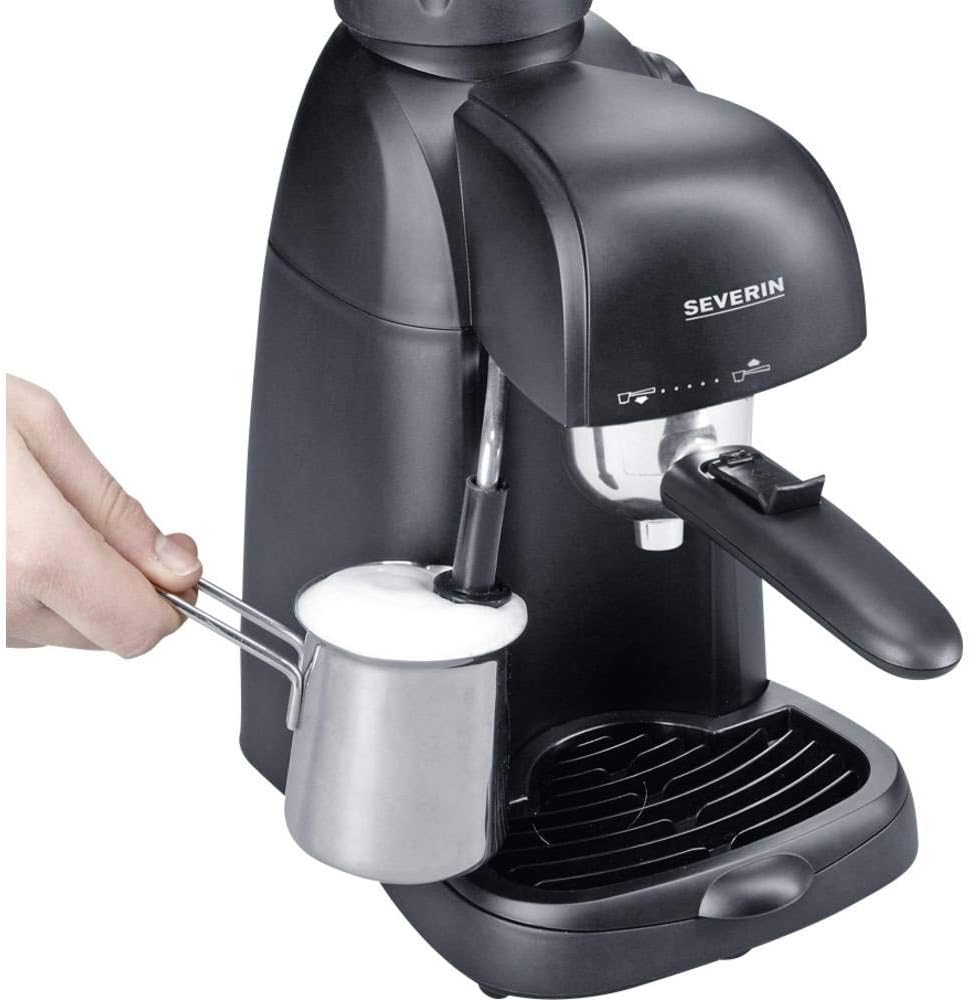

2. Using the Milk Frother
To froth milk for cappuccinos or lattes, ensure there is water in the tank. Turn the control knob to the steam symbol. Wait for the indicator light to illuminate steadily, indicating the machine has reached steaming temperature. Immerse the steam nozzle into a pitcher of cold milk. Slowly open the steam valve by turning the knob on the side of the machine. Move the pitcher up and down to create foam. Once desired foam is achieved, close the steam valve and turn the control knob to "OFF".
Maintenance and Cleaning
1. Daily Cleaning
After each use, remove the filter holder and discard used coffee grounds. Rinse the filter holder and filter under running water. Clean the steam nozzle immediately after frothing milk by wiping it with a damp cloth and briefly releasing steam to clear any milk residue. Empty and rinse the drip tray.
2. Descaling
Regular descaling is crucial to maintain performance and extend the lifespan of your machine. The frequency depends on water hardness and usage. Use a commercially available descaling agent suitable for coffee machines and follow the manufacturer's instructions.
Video 2: Closer Look. This video provides a detailed view of the machine, which can be helpful for understanding cleaning and maintenance procedures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew or brews slowly. | Not enough water in the tank. / Coffee grounds too fine or compacted. / Machine needs descaling. | Fill water tank. / Use coarser grind or less coffee. / Descale the machine. |
| No steam from the nozzle. | Not enough water. / Nozzle clogged. / Machine not heated sufficiently. | Fill water tank. / Clean the nozzle. / Wait for indicator light to be steady. |
| Espresso is too weak. | Not enough coffee. / Coffee grind too coarse. | Add more coffee. / Use finer grind. |
Technical Specifications
- Brand: SEVERIN
- Model Number: KA 5978
- Color: Black
- Product Dimensions: 16 x 22.4 x 30 cm (approx. 6.3 x 8.8 x 11.8 inches)
- Item Weight: 1.68 Kilograms (approx. 3.7 lbs)
- Maximum Steam Pressure: 3.5 Bar
- Special Features: Milk Frother, Glass Carafe
- Coffee Machine Type: Espresso Machine
Warranty and Customer Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official SEVERIN website. Keep your proof of purchase for any warranty claims.
