Bahco BPM914L 1/2" Mini Impact Wrench Instruction Manual

1. Safety Information

Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Personal Safety: Always wear eye protection, hearing protection, and appropriate gloves. Do not overreach. Maintain proper footing and balance at all times.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
• Air Supply Safety: Ensure the air supply is clean, dry, and regulated to the specified pressure. Never exceed the maximum operating pressure.
• Noise Exposure: Prolonged exposure to high noise levels can cause hearing damage. Use hearing protection.
• Vibration Exposure: Excessive vibration can cause hand-arm vibration syndrome. Take breaks and use anti-vibration gloves if necessary.

2. Product Overview

The Bahco BPM914L is a compact and powerful 1/2-inch mini impact wrench designed for various fastening and loosening applications. Its long anvil design provides extended reach for difficult-to-access fasteners.

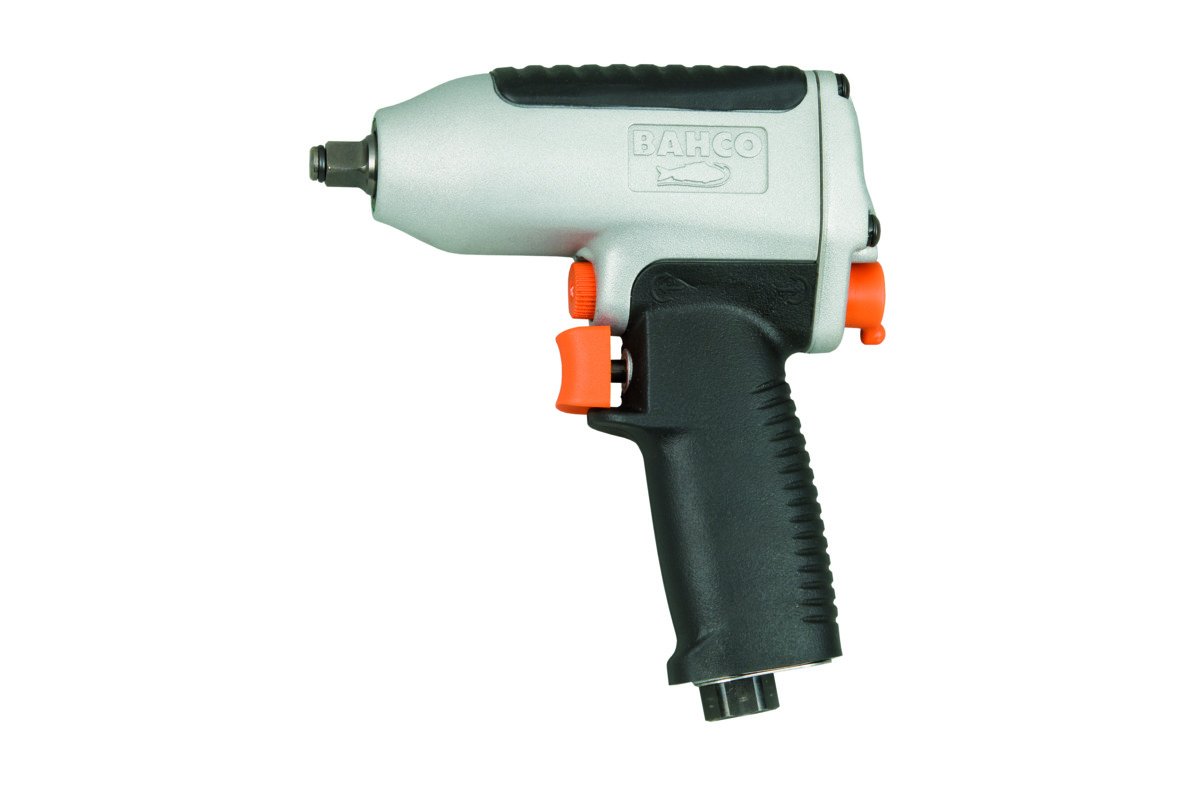

Figure 1: Bahco BPM914L 1/2" Mini Impact Wrench. This image shows the compact body, the 1/2-inch square drive with a long anvil, and the ergonomic handle of the impact wrench.

Components:

• 1/2" Square Drive: For attaching impact sockets.
• Long Anvil: Provides extended reach.
• Trigger: Activates the tool.
• Forward/Reverse Selector: Changes rotation direction.
• Air Inlet: Connection point for air hose.
• Exhaust Port: Directs air away from the user.

3. Setup

1. Air Supply Connection:
   • Ensure your air compressor is capable of providing the required air pressure and volume (refer to specifications).
   • Connect a suitable air hose (minimum 3/8" I.D.) to the tool's air inlet. Use thread sealant on fittings.
   • Install an in-line air filter/lubricator as close to the tool as possible to ensure clean, lubricated air.
   • Set the air pressure regulator on your compressor to the recommended operating pressure (typically 90 PSI / 6.2 bar).
2. Socket Attachment:
   • Select the appropriate 1/2" drive impact-grade socket for your fastener.
   • Push the socket firmly onto the square drive anvil until it locks securely.
   • Always use impact-grade sockets; standard chrome sockets can shatter.
3. Initial Check: Before use, ensure all connections are secure and there are no air leaks.

4. Operating Instructions

1. Direction Selection:
   • Locate the forward/reverse selector switch.
   • Move the switch to the "F" position for tightening (forward rotation) or "R" for loosening (reverse rotation).
   • Ensure the selector is fully engaged in the desired position before operating.
2. Applying the Tool:
   • Place the socket squarely onto the fastener.
   • Hold the tool firmly with both hands if possible, maintaining good balance.
3. Activating the Tool:
   • Press the trigger to start the tool. The impact mechanism will engage automatically.
   • Apply steady pressure to the tool, keeping it aligned with the fastener.
   • Release the trigger to stop the tool.
4. Torque Control (if applicable): This model may have limited or no external torque adjustment. For critical torque applications, always use a calibrated torque wrench for final tightening.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your impact wrench.

• Lubrication: Ensure the in-line lubricator is filled with appropriate pneumatic tool oil. If no lubricator is used, add a few drops of pneumatic tool oil into the air inlet before each use.
• Cleaning: Keep the tool clean and free from debris. Wipe down the exterior with a clean cloth. Do not use harsh solvents.
• Air Filter: Regularly check and clean or replace the air filter in your air supply system to prevent contaminants from entering the tool.
• Anvil and Retainer: Inspect the anvil and socket retainer for wear or damage. Replace if necessary.
• Storage: Store the tool in a dry, clean environment when not in use. Disconnect from the air supply.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Bahco website. Keep your proof of purchase for warranty claims.

Bahco Official Website: www.bahco.com
