WAC Lighting Tesla PRO 2-inch LED Square Adjustable Trim

Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your WAC Lighting Tesla PRO 2-inch LED Square Adjustable Trim. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Tesla PRO series features a high-performance integrated LED light engine designed for residential and commercial applications. This trim and LED engine are manufactured as a single unit, offering various specifications including trim shape, finish, adjustability, color temperature, and beam distribution.

Important Safety Information

• WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing.
• Installation must be performed by a qualified electrician in accordance with all local electrical codes and ordinances.
• Ensure the supply voltage is compatible with the fixture (120 Volts).
• Do not modify the fixture. Any modifications may void the warranty and create a safety hazard.
• This product is designed for indoor use only.
• Wear safety glasses and gloves during installation.
• Keep combustible materials away from the lamp.
• This fixture is designed to be used with Tesla 2-inch housings (sold separately).

Package Contents

Verify that all components are present before beginning installation:

• 1 x Tesla PRO 2-inch LED Square Adjustable Trim with Light Engine
• 1 x Instruction Manual (this document)
• Mounting Hardware

Note: Housing for the recessed fixture is sold separately.

Setup and Installation

This trim is designed for use with WAC Lighting Tesla 2-inch housings (e.g., HR-2LED-R14D for remodel or HR-2LED-H09D-ICA for new construction). Ensure the housing is properly installed according to its own instructions before proceeding with trim installation.

Tools Required (Not Included):

• Screwdriver
• Wire strippers
• Pliers
• Safety glasses
• Gloves

Installation Steps:

1. Turn Off Power: Before starting any electrical work, ensure the power supply to the fixture location is turned off at the circuit breaker or fuse box.
2. Prepare Housing: Ensure the recessed housing (sold separately) is correctly installed and wired according to its specific instructions. The housing should be securely mounted in the ceiling.
3. Connect Wiring: Locate the electrical connector within the recessed housing. Connect the trim's wiring harness to the housing's connector. Ensure a secure connection.
4. Insert Trim: Carefully push the LED trim assembly into the recessed housing. The spring clips or retention tabs on the trim will secure it in place against the ceiling. Ensure the trim sits flush with the ceiling surface.
5. Adjust Beam Angle (if applicable): This trim features 0-30 degree adjustability. Once installed, the light engine can be tilted to direct the light beam as desired.
6. Restore Power: Once the trim is securely installed and all connections are made, restore power at the circuit breaker.
7. Test Operation: Turn on the light switch to verify proper operation.

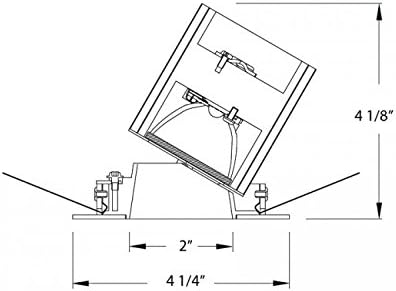

Figure 1: Dimensional diagram of the WAC Lighting Tesla PRO 2-inch LED trim, showing its 2-inch width and 4 1/8-inch height when tilted, with a 4 1/4-inch overall trim diameter.

Figure 2: The WAC Lighting Tesla PRO 2-inch LED trim shown in a hand, illustrating its compact size with a visible measurement of 4.3 inches (10 cm) in height.

Operating Instructions

The WAC Lighting Tesla PRO LED trim operates like a standard light fixture once installed. It is controlled by a wall switch connected to the recessed housing.

• Power On/Off: Use the wall switch to turn the light fixture on or off.
• Dimming: This fixture supports smooth and continuous ELV (Electronic Low Voltage) and 0-10V dimming options down to 5%. Ensure you use a compatible dimmer switch for optimal performance. Refer to your dimmer switch's instructions for proper operation.
• Adjusting Beam Angle: The light engine can be manually adjusted up to 30 degrees to direct the light beam. Gently tilt the inner light engine to achieve the desired angle.

Maintenance

The WAC Lighting Tesla PRO LED trim is designed for minimal maintenance. The integrated LED light engine is maintenance-free.

• Cleaning: Ensure power is off before cleaning. Use a soft, dry, or slightly damp cloth to wipe the trim. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these can damage the finish.
• LED Replacement: The LED light engine is integrated and not user-replaceable. If the LED fails, the entire trim assembly may need replacement.

Troubleshooting

If you experience issues with your WAC Lighting Tesla PRO LED trim, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact WAC Lighting customer support.

Specifications

Figure 3: Energy Star and California Energy Commission Title 24 compliance logos, indicating energy efficiency and adherence to California's building energy efficiency standards.

Warranty Information

WAC Lighting provides the following warranty for this product:

• Functional Warranty: 5 years
• Finish Warranty: 2 years

For detailed warranty terms and conditions, please refer to the official WAC Lighting warranty statement or contact customer support.

Customer Support

For technical assistance, replacement parts, or warranty claims, please contact WAC Lighting directly.

WAC Lighting Official Website: Visit the WAC Lighting Store on Amazon

Please have your model number (HR2LEDT509PF930CB) and purchase date available when contacting support.
