Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your WAC Lighting H-LED201-30-WT Contemporary Summit ACLED 15W Beamshift Line Voltage Cone H-Track Head. This track head is designed for use with 120V track systems and features Beamshift technology for adjustable beam angles.
Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- Read all instructions carefully before installation.
- Ensure power is turned off at the circuit breaker before installation or servicing.
- Installation should be performed by a qualified electrician if you are unsure.
- This fixture is UL & CUL listed for dry locations. Do not use in wet or damp environments.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
Package Contents
- 1 x WAC Lighting H-LED201-30-WT Summit ACLED Track Head
Specifications
| Feature | Detail |
|---|---|
| Model Number | H-LED201-30-WT |
| Brand | WAC Lighting |
| Material | Die-cast Aluminum, Glass Shade |
| Color | White |
| Light Source | Integrated AC LED Module (no lamp required) |
| Wattage | 15W (comparable to 50W MR16) |
| Voltage | 120V |
| Color Temperature | 3000K (Warm White) |
| Color Rendering Index (CRI) | 90+ |
| Rated Hours | 50,000 hours |
| Dimming | Smooth and continuous dimming to 10% with an electronic low voltage dimmer |
| Beam Angle | In-field changeable between 20 and 40 degrees (Beamshift Technology) |
| Track Compatibility | H-Track (also available for J/J2 and L track configurations) |
| Dimensions (L x W x H) | 3.25 x 3.88 x 6.75 inches |
| Item Weight | 1 pound |
| Certifications | UL & CUL Listed for dry locations, Energy Star Rated |
Setup and Installation
This track head is designed for easy installation onto a 120V H-Track system. Ensure the track system is properly installed and powered off before proceeding.
Installation Steps:
- Turn off Power: Locate the circuit breaker controlling the track lighting system and turn off the power. Verify that the power is off before beginning installation.
- Identify Track Type: Ensure your track system is an H-Track. This fixture is specifically designed for H-Track configurations.
- Insert Track Head: Align the track head's adapter with the track slot. Push the adapter firmly into the track and rotate it 90 degrees to lock it into place. Ensure the electrical contacts are properly engaged with the track conductors.
- Secure Position: Once inserted, slide the track head to the desired position along the track. Some track heads may have a locking mechanism (e.g., a screw) to secure their position; tighten if applicable.
- Adjust Direction: The track head can be swiveled and tilted to direct light as needed.
- Restore Power: Once the track head is securely installed and positioned, restore power at the circuit breaker.

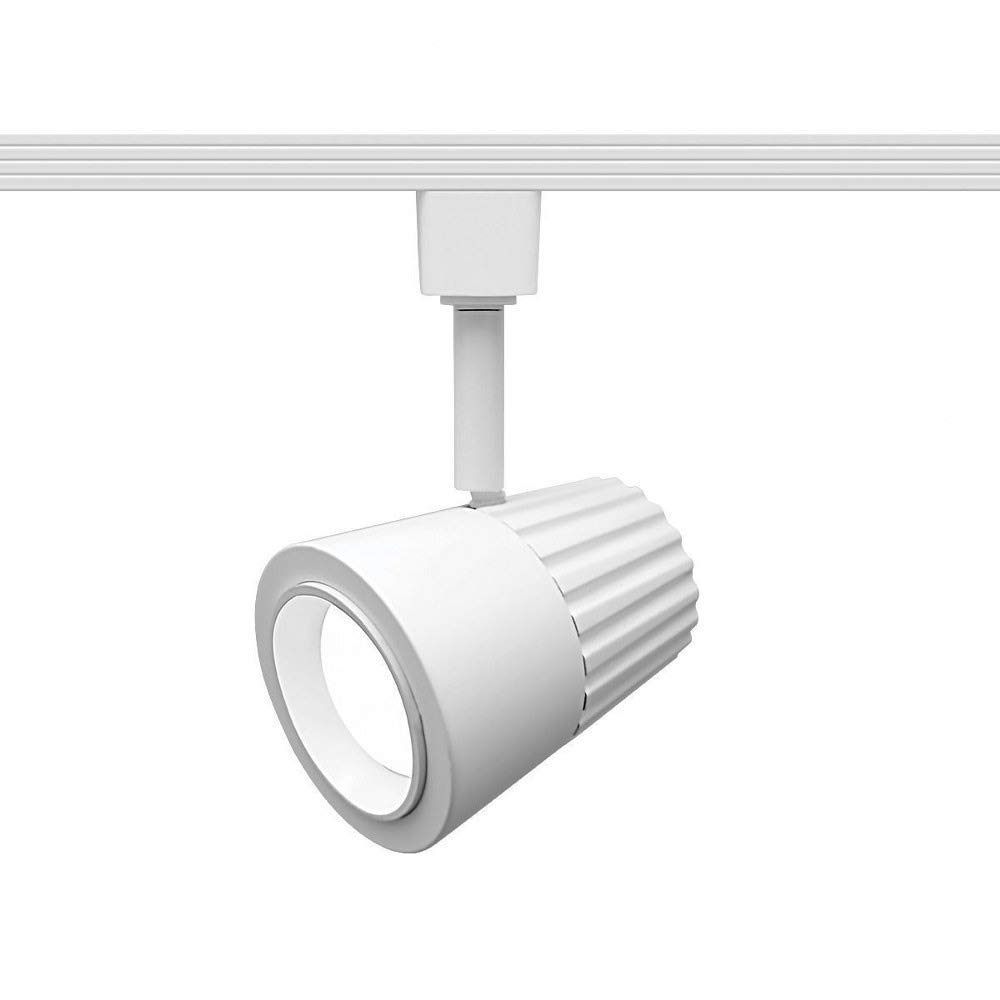

Image: WAC Lighting H-LED201-30-WT Summit ACLED Track Head, showcasing its cone shape and white finish.
Image: Technical drawing illustrating the dimensions of the WAC Lighting H-LED201-30-WT track head, including its overall height of 6 3/4 inches, and cone dimensions.
Operating Instructions
Beamshift Technology:
The Summit track head features Beamshift Technology, allowing you to modify the beam angle in the field without additional tools or accessories. This is achieved by changing the location of the lens within the fixture. The beam angle can be adjusted between 20 and 40 degrees to suit your lighting needs.
- To adjust the beam angle, gently rotate or slide the lens assembly within the fixture until the desired beam spread is achieved. Refer to the product's internal markings or visual cues for specific adjustment points.
Dimming:
This fixture is designed for smooth and continuous dimming down to 10% when used with a compatible electronic low voltage (ELV) dimmer. Ensure your dimmer switch is an ELV type for optimal performance.
- Operate the dimmer switch as you would any standard light switch to control the light output.
Maintenance
The WAC Lighting Summit ACLED Track Head requires minimal maintenance.
- Cleaning: Ensure power is off before cleaning. Use a soft, dry, or slightly damp cloth to wipe the exterior of the fixture. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- LED Lifespan: The integrated LED module has a rated life of 50,000 hours and does not require lamp replacement.
Troubleshooting
If your track head is not functioning correctly, consider the following:
- No Light:
- Check if the power is on at the circuit breaker.
- Ensure the track head is properly seated and making good electrical contact with the track.
- Verify that the track system itself is receiving power.
- Flickering or Inconsistent Dimming:
- Confirm that an electronic low voltage (ELV) dimmer is being used. Incompatible dimmers can cause performance issues.
- Ensure the dimmer is rated for the total wattage of all fixtures on the circuit.
- If issues persist after checking these points, contact customer support.
Warranty Information
WAC Lighting provides a 5-year warranty on this product. Additionally, a 2-year warranty is provided specifically for the finish of the fixture. Please retain your proof of purchase for warranty claims.
Support
For further assistance, technical support, or warranty inquiries, please contact WAC Lighting customer service. Refer to the official WAC Lighting website for current contact information.
WAC Lighting Website: www.waclighting.com
