1. Introduction
This manual provides essential information for the proper installation, maintenance, and care of your Scag 43503 Pivot, Idler - Short. This component is a genuine OEM (Original Equipment Manufacturer) part designed for specific Scag lawn mower models. Using genuine Scag parts ensures optimal performance and compatibility with your equipment.
2. Safety Information
WARNING: Always ensure the equipment is turned off, the engine is cool, and spark plug wires are disconnected before performing any maintenance or installation procedures to prevent accidental starting and injury.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Refer to your specific Scag equipment's owner's manual for detailed safety instructions and procedures.
- If you are unsure about any installation step, consult with an authorized Scag service technician.
3. Setup and Installation
The Scag 43503 Pivot, Idler - Short serves as a critical pivot point for an idler arm or pulley within the lawn mower's deck assembly, facilitating proper belt tension and routing. Proper installation is crucial for the functionality and longevity of your mower's drive system.
3.1. Tools Required
- Wrench set (metric/standard, as required by your mower model)
- Socket set
- Pry bar or similar tool (for belt tension release, if applicable)
- Safety glasses and work gloves
3.2. Installation Steps
- Prepare the Mower: Park the mower on a flat, stable surface. Engage the parking brake. Turn off the engine and remove the ignition key. Disconnect the spark plug wires to prevent accidental starting.
- Access the Deck: Depending on your mower model, you may need to remove the mower deck or lift the machine to gain access to the idler assembly. Consult your mower's owner's manual for specific instructions.
- Relieve Belt Tension: Carefully relieve tension on the drive belt that interacts with the idler pulley. This often involves using a pry bar to move the idler arm or releasing a tension spring.
- Remove Old Pivot: Locate the worn or damaged pivot. Use appropriate wrenches or sockets to remove any retaining nuts or bolts securing the old pivot. Carefully remove the old pivot from its mounting location.
- Install New Pivot: Position the new Scag 43503 Pivot, Idler - Short into the mounting hole. Ensure it seats correctly.
- Secure the Pivot: Reinstall any retaining nuts or bolts, tightening them to the manufacturer's specified torque. Do not overtighten.
- Reinstall Idler Arm/Pulley: Reattach the idler arm and pulley to the new pivot, ensuring all components move freely.
- Restore Belt Tension: Carefully re-tension the drive belt. Ensure the belt is properly routed around all pulleys according to your mower's diagram.
- Final Checks: Before starting the engine, manually rotate the blades to ensure the belt and idler system move freely without obstruction. Reconnect spark plug wires.

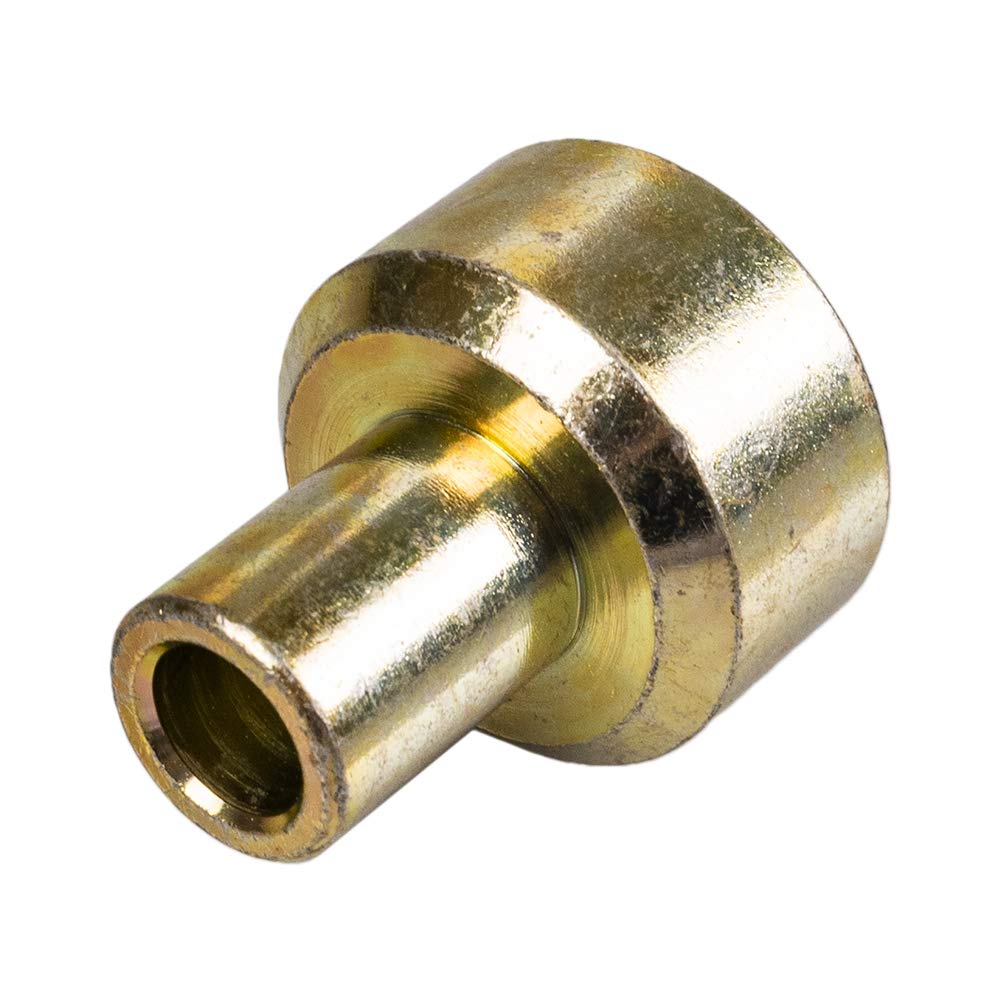

This image displays the Scag 43503 Pivot, Idler - Short. It is a robust, gold-colored metal component, typically made of steel with a protective coating like zinc plating. The part features a cylindrical shaft extending from a wider, flat base, with a central bore running through its length. This design allows it to serve as a pivot point for an idler arm or pulley in lawn mower deck assemblies.
4. Operating Considerations
Once the Scag 43503 Pivot, Idler - Short is correctly installed, its function is integral to the mower's drive system. It provides a stable pivot point for the idler pulley, which maintains proper tension on the drive belt. During operation, ensure there are no unusual noises, vibrations, or signs of belt slippage, which could indicate an issue with the idler assembly or belt tension.
5. Maintenance
Regular inspection and maintenance of the idler pivot and surrounding components are essential for extending the life of your mower and ensuring safe operation.
- Visual Inspection: Periodically inspect the pivot for signs of wear, corrosion, or damage. Check for any looseness in its mounting.
- Cleanliness: Keep the area around the idler pivot free from grass clippings, dirt, and debris, which can impede movement and accelerate wear.
- Lubrication: While this specific pivot may not require regular lubrication, always refer to your mower's owner's manual for lubrication schedules for all deck components, including idler pulleys and their pivot points.
- Belt Condition: Inspect the drive belt for cracks, fraying, or excessive wear. A worn belt can put undue stress on the idler pivot.
6. Troubleshooting
If you experience issues related to the idler assembly, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive noise from deck area | Worn idler pivot or pulley bearing; loose mounting hardware | Inspect pivot and pulley; replace if worn. Tighten all hardware. |
| Belt slipping or coming off | Incorrect belt tension; worn belt; bent idler arm; worn pivot | Adjust belt tension; replace belt; inspect and replace idler arm or pivot if damaged. |
| Vibration from mower deck | Worn or damaged idler pivot/pulley; unbalanced blades | Inspect and replace worn components. Check blade balance. |
7. Specifications
- Part Number: 43503
- Type: Pivot, Idler - Short
- Manufacturer: Scag
- Material: Metal (typically steel with protective coating)
- Dimensions (Approximate): 8 x 8 x 8 inches (packaging dimensions)
- Item Weight (Approximate): 1 pound
- Compatibility: Refer to your specific Scag equipment's parts manual for exact fitment.
8. Warranty Information
As a genuine OEM part, the Scag 43503 Pivot, Idler - Short is typically covered by Scag's standard warranty for replacement parts. Warranty terms and conditions may vary. Please retain your proof of purchase. For detailed warranty information, contact an authorized Scag dealer or visit the official Scag Power Equipment website.
9. Support and Service
For technical assistance, parts inquiries, or service, please contact your authorized Scag dealer. They have trained technicians and access to official Scag resources to provide the best support for your equipment.
- Find a Dealer: Visit the official Scag Power Equipment website to locate an authorized dealer near you.
- Customer Service: Refer to your main equipment's owner's manual for Scag customer service contact information.
