Varta Blue Dynamic D43 Car Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Varta Blue Dynamic D43 12V 60Ah 540A car battery. Please read these instructions carefully before handling or installing the battery to ensure proper usage and longevity.

Image 1.1: Varta Blue Dynamic D43 Car Battery. This image shows the top and side view of the Varta Blue Dynamic D43 car battery, highlighting its compact design and standard terminals.

2. Safety Information

WARNING: Batteries contain sulfuric acid, which is corrosive, and produce explosive gases. Always follow safety precautions.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling batteries.
• Do not smoke or allow open flames or sparks near the battery.
• Ensure adequate ventilation when working with batteries.
• Avoid contact with battery acid. If contact occurs, flush immediately with water and seek medical attention.
• Keep batteries out of reach of children.
• Do not short-circuit battery terminals.
• Always disconnect the negative (-) terminal first and connect it last during installation or removal.

3. Setup and Installation

3.1 Tools and Preparation

Before starting, gather the following tools: wrench set, battery terminal cleaner, wire brush, battery terminal puller (optional), and a battery hold-down wrench. Ensure your vehicle's ignition is off and all accessories are disconnected.

3.2 Removing the Old Battery

1. Locate the battery in your vehicle.
2. Disconnect the negative (-) terminal cable first, then the positive (+) terminal cable.
3. Remove the battery hold-down clamp or strap.
4. Carefully lift out the old battery. Note its weight (approximately 14.3 kg).

3.3 Installing the New Battery

1. Clean the battery tray and terminal clamps thoroughly with a wire brush and terminal cleaner.
2. Place the new Varta Blue Dynamic D43 battery into the battery tray. Ensure it is seated securely.
3. Secure the battery with the hold-down clamp or strap. Refer to the base hold-down diagram for proper fitment.

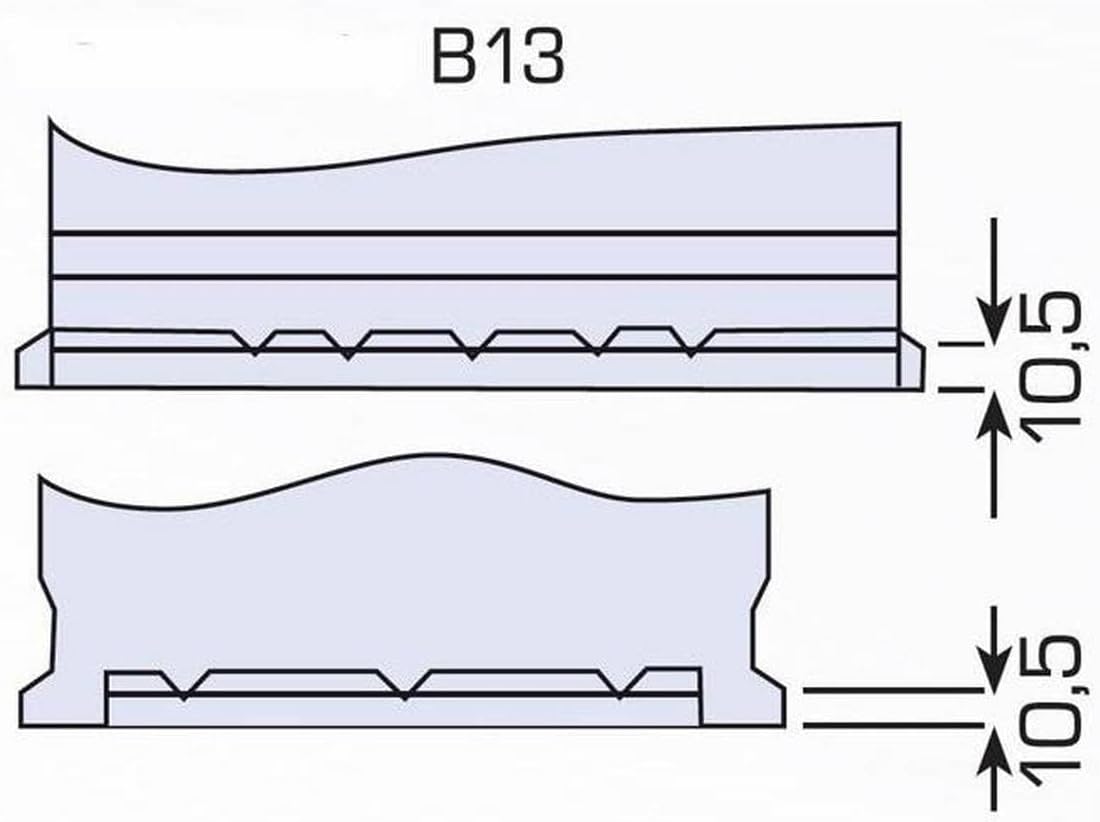

Image 3.1: Battery Base Hold-Down Diagram. This diagram illustrates the B13 type base hold-down, showing the dimensions and structure for securing the battery in the vehicle tray.

4. Connect the positive (+) terminal cable first, then the negative (-) terminal cable. Ensure connections are tight and secure.
5. Apply a thin layer of anti-corrosion grease to the terminals to prevent corrosion.

3.4 Battery Dimensions and Terminal Type

The Varta Blue Dynamic D43 battery has specific dimensions and terminal types for vehicle compatibility. Please verify these against your vehicle's requirements.

• Dimensions (L x W x H): 242 mm x 175 mm x 190 mm
• Polarity: Left Positive (standard European layout)

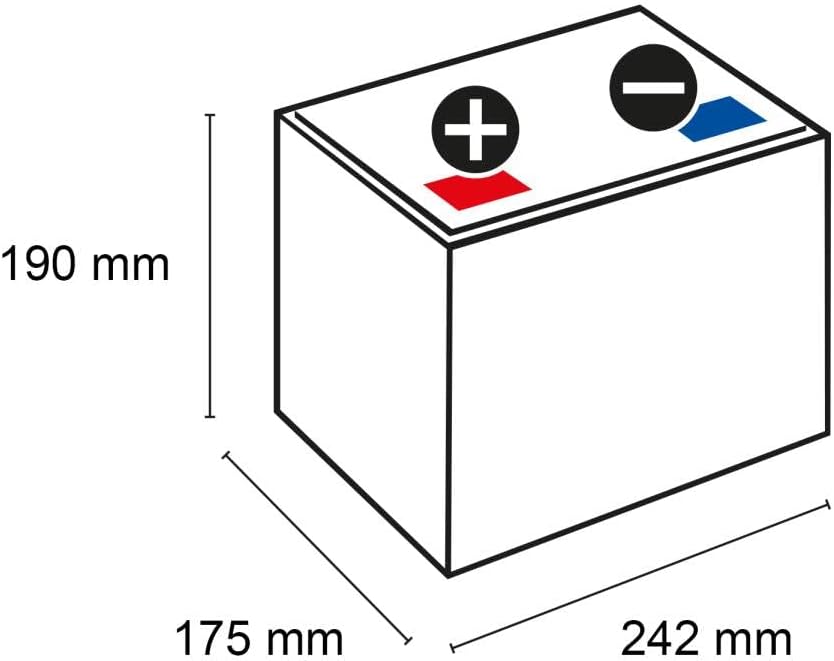

Image 3.2: Varta Blue Dynamic D43 Battery Dimensions. This image provides a clear diagram of the battery's length (242 mm), width (175 mm), and height (190 mm), crucial for fitment.

Image 3.3: Battery Terminal Dimensions. This diagram details the dimensions of the positive (Ø 19.5 mm) and negative (Ø 17.9 mm) terminals, including their height (18 mm), ensuring proper cable connection.

4. Operating Instructions

The Varta Blue Dynamic D43 is a maintenance-free lead-acid starter battery designed for reliable vehicle starting power. Once correctly installed, it operates automatically as part of your vehicle's electrical system.

• Normal Operation: The battery is continuously charged by the vehicle's alternator during engine operation.
• Engine Starting: Provides high cranking power for reliable engine starts.
• Cold Weather Performance: This battery is designed to deliver consistent performance even in cold conditions, with a Cold Cranking Amps (CCA) rating of 540A.

5. Maintenance

While the Varta Blue Dynamic D43 is a maintenance-free battery, periodic checks can help ensure its optimal performance and lifespan.

• Terminal Inspection: Regularly check battery terminals for corrosion. If corrosion is present, disconnect the battery (negative first, then positive) and clean the terminals and clamps with a wire brush and baking soda solution. Rinse with water and dry thoroughly before reconnecting.
• Battery Case Inspection: Inspect the battery case for any cracks, bulges, or leaks. A damaged battery should be replaced immediately.
• Hold-Down Check: Ensure the battery hold-down is secure to prevent vibration, which can shorten battery life.
• Charging (if necessary): If the vehicle is stored for extended periods or frequently makes short trips, the battery may require supplemental charging with a compatible automotive battery charger. Follow the charger manufacturer's instructions.
• Storage: If storing the battery, ensure it is fully charged and stored in a cool, dry place. Disconnect it from the vehicle to prevent parasitic drains.

6. Troubleshooting

If you experience issues with your vehicle's starting system, consider the following common troubleshooting steps:

6.1 Engine Cranks Slowly or Not at All

• Cause: Discharged battery.
• Solution: Check battery voltage. If low, recharge the battery using an appropriate charger. If the battery does not hold a charge, it may need replacement.
• Cause: Loose or corroded battery terminals.
• Solution: Inspect and clean terminals, ensuring they are tightly secured.

6.2 Dim Headlights or Interior Lights

• Cause: Low battery charge or failing alternator.
• Solution: Check battery voltage. If low, recharge. Have the vehicle's charging system (alternator) inspected by a qualified mechanic.

6.3 Battery Leaking

• Cause: Overcharging, physical damage, or manufacturing defect.
• Solution: Disconnect the battery immediately (negative first). Do not attempt to use a leaking battery. Contact your retailer or a professional for inspection and replacement.

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional automotive technician.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Varta batteries typically come with a manufacturer's warranty covering defects in materials and workmanship.

If you require technical assistance or have questions not covered in this manual, please contact Varta customer support or your authorized Varta dealer. Keep your purchase receipt and battery model number handy for faster service.
