1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE Eurosmart CE Powerbox Infrared Electronic Washbasin Mixer. This advanced faucet features an infrared sensor for touchless operation, a self-generating power system (Powerbox), and adjustable temperature control. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
2. Safety Information
- Ensure all water and electrical connections are performed by a qualified professional in accordance with local codes and regulations.
- Turn off the main water supply and electrical power before beginning any installation or maintenance.
- Do not expose the Powerbox or electronic components to excessive moisture or direct water spray.
- Use only genuine GROHE replacement parts and accessories.
- Keep children away from the installation area and ensure they do not tamper with the faucet or Powerbox.
3. Package Contents
Verify that all components are present before beginning installation:

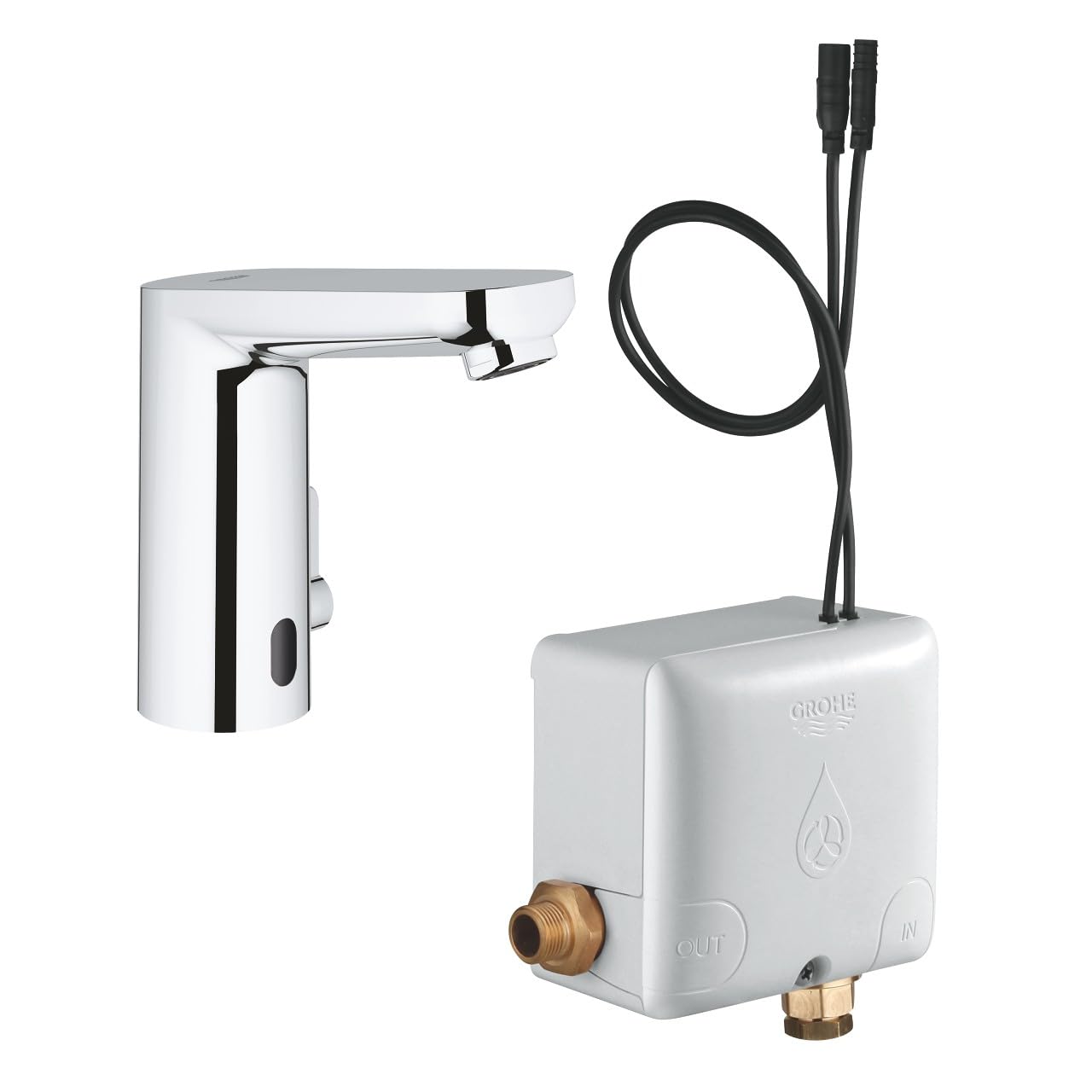

- GROHE Eurosmart CE Infrared Electronic Faucet
- GROHE Powerbox (self-generating power system)
- Flexible connection hoses (G3/8)
- Backflow preventer
- Dirt filter
- Mounting hardware (Quick Installation System)
- Instruction Manual
4. Setup and Installation
Careful installation is crucial for optimal performance. Refer to the diagram below for dimensions and connection points.
4.1. Pre-Installation Checks
- Ensure the washbasin has a suitable mounting hole (recommended Ø34mm, maximum countertop thickness 35mm).
- Confirm availability of hot and cold water supply lines with G3/8 connections. UK installations may require 15mm x 3/8 inch compression adaptors (GROHE 46914000, sold separately).
- Plan the location for the Powerbox, ensuring it is accessible for maintenance but protected from direct water exposure.
4.2. Installation Steps
- Mount the faucet onto the washbasin using the quick installation system, ensuring a secure fit.
- Connect the flexible hoses to the hot and cold water supply lines. Install the backflow preventer and dirt filter as indicated.
- Connect the faucet's electronic cable to the Powerbox.
- Mount the Powerbox in its designated location.
- Turn on the main water supply and check for leaks.
- The Powerbox will begin generating power from water flow. Allow a few moments for the system to initialize.
Figure 1: Installation Dimensions and Components. This diagram illustrates the key dimensions for installation, including the faucet height (132mm), spout reach (144mm), and required hole diameter (Ø34mm, max. 35mm countertop thickness). It also shows the connections for the G3/8 flexible hoses and the dimensions of the Powerbox (112mm width, 102mm height, 63mm depth) and its placement relative to the faucet.
5. Operating Instructions
The GROHE Eurosmart CE faucet is designed for intuitive, touchless operation.
5.1. Automatic Sensor Operation
- The infrared sensor detects hands placed within its detection zone, automatically activating water flow.
- Water flow stops automatically when hands are removed from the sensor's range.
- The Powerbox generates electricity from the water flow, ensuring continuous operation without external power sources. It includes an internal energy-saving unit and additional reserve energy.
5.2. Temperature Adjustment
The faucet features a variably adjustable temperature limiter. This can typically be set during installation or adjusted via a small lever or screw on the side or base of the faucet, depending on the specific model variant. Consult the detailed installation guide for precise adjustment instructions.
5.3. Program Settings (with remote control 36 407)
For advanced functions and settings, use the optional GROHE remote control 36 407. The faucet comes with 7 preset programs, which can be customized:
- Automatic Flushing: Configurable for hygiene purposes.
- Thermal Disinfection: For maintaining water quality.
- Cleaning Mode: Temporarily deactivates the sensor for cleaning the faucet without accidental activation.
- Additional functions and settings can be accessed and modified via the remote control for optimal performance and water conservation.
6. Maintenance
Regular maintenance ensures the longevity and hygienic operation of your faucet.
6.1. Cleaning
- Clean the GROHE StarLight surface with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the chrome finish.
- Regularly wipe the infrared sensor window to ensure proper detection.
- Activate cleaning mode (if available via remote control) before cleaning to prevent accidental water activation.
6.2. Filter Maintenance
- Periodically check and clean the dirt filter located in the water supply lines to prevent blockages and maintain optimal flow rate (GROHE EcoJoy 6.0 l/min Mousseur).
- Turn off the water supply before accessing the filter.
6.3. Powerbox Maintenance
- The Powerbox is a self-contained unit. No user-serviceable parts are inside.
- Ensure the Powerbox remains dry and free from physical damage.
- The internal energy-saving unit and reserve energy system are designed for long-term reliability.
7. Troubleshooting
If you encounter issues, consult the table below before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow | Water supply off; dirt filter clogged; Powerbox not generating power; sensor obstructed. | Check main water supply; clean dirt filter; ensure sufficient water flow for Powerbox; clean sensor window. |
| Intermittent water flow | Low water pressure; sensor interference; Powerbox low on reserve energy. | Check water pressure; remove objects near sensor; ensure regular faucet use to charge Powerbox. |
| Incorrect water temperature | Temperature limiter setting; hot/cold lines reversed. | Adjust temperature limiter; verify hot and cold water connections. |
| Sensor not responding | Sensor window dirty; sensor malfunction; Powerbox issue. | Clean sensor window; contact GROHE support if problem persists. |
8. Specifications
- Brand: GROHE
- Model Name: 36386001
- Series ID: Eurosmart Cosmopolitan
- Mounting Type: Single-hole platform mount
- Finish Type: Chrome-plated (GROHE StarLight)
- Material: Stainless Steel
- Color: Chrome-coloured
- Special Feature: Touchless, Infrared electronics
- Flow Rate: 6.0 l/min (GROHE EcoJoy Mousseur)
- Power System: Powerbox (self-generating with water turbine, internal energy-saving unit, reserve energy)
- Programs: 7 preset programs (e.g., automatic flushing, thermal disinfection, cleaning mode)
- Included Components: GROHE 36386001 - Eurosmart Cosmopolitan E Powerbox
- Item Weight: 2.7 Kilograms
- Required Adaptors (UK): 15 mm x 3/8 Inch (GROHE 46914000, sold separately)
9. Warranty and Support
GROHE products are manufactured to the highest quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official GROHE website. For technical support, spare parts, or service inquiries, please contact GROHE customer service. Ensure you have your model number (36386001) and purchase details available when contacting support.
