Introduction
The BLACK+DECKER PPRH5B Professional Power Station with Air Compressor is a versatile portable power source designed for various applications, including jump-starting vehicles, inflating tires, and powering 12V DC accessories. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your power station.

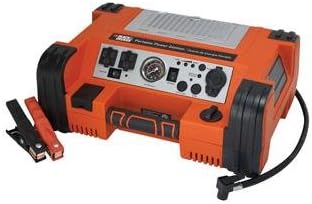

Image: The BLACK+DECKER PPRH5B Professional Power Station, an orange and black portable unit with a control panel, air hose, and jumper cables. This image illustrates the overall design and key components of the device.
Important Safety Information
Read and understand all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear eye protection when working with batteries.
- Do not expose the power station to rain or wet conditions.
- Ensure proper ventilation during operation and charging.
- Keep children and unauthorized persons away from the unit.
- Do not attempt to disassemble or modify the unit.
- Avoid short-circuiting the battery clamps.
- Do not use the air compressor for breathing air.
Package Contents
Verify that all items are present upon opening the package:
- BLACK+DECKER PPRH5B Professional Power Station
- AC Charging Adapter
- DC Charging Adapter (Vehicle)
- Accessory Nozzles for Air Compressor
- User Manual
Features and Components
Familiarize yourself with the various parts of your power station:
- Control Panel: Includes battery status indicator, air compressor gauge, and various switches/outlets.
- Jump Starter Cables: Heavy-duty cables with positive (red) and negative (black) clamps.
- Air Compressor Hose: Flexible hose with a screw-on valve connector.
- 12V DC Power Outlet: For powering 12V accessories.
- USB Charging Ports: For charging portable electronic devices.
- Built-in Work Light: Provides illumination in low-light conditions.
- AC Charging Port: For recharging the internal battery using the AC adapter.
Setup and Initial Charging
Before first use, the power station must be fully charged. This process can take up to 48 hours.
- Locate the AC charging adapter.
- Plug the AC adapter into the AC charging port on the power station.
- Plug the other end of the AC adapter into a standard 120V AC wall outlet.
- The battery status indicator will show charging progress. Charge until the indicator shows a full charge.
- Once fully charged, disconnect the AC adapter.
It is recommended to recharge the unit every 30 days when not in use to maintain optimal battery life.
Operating Instructions
Jump Starting a Vehicle
Ensure the vehicle's ignition is off and all accessories are turned off.
- Connect the red positive (+) clamp to the positive (+) terminal of the vehicle's battery.
- Connect the black negative (-) clamp to a non-moving metal part of the vehicle's chassis, away from the battery and fuel lines.
- Ensure connections are secure.
- Turn on the jump start switch on the power station.
- Attempt to start the vehicle. If it does not start within 5-6 seconds, wait at least 3 minutes before trying again.
- Once the vehicle starts, turn off the jump start switch on the power station.
- Disconnect the black negative (-) clamp first, then the red positive (+) clamp.
- Store cables properly.
Using the Air Compressor
The air compressor can inflate tires, sports equipment, and other inflatables.
- Screw the air compressor hose connector onto the tire valve stem or attach the appropriate accessory nozzle.
- Set the desired pressure using the pressure gauge or refer to the item's recommended pressure.
- Turn on the air compressor switch.
- Monitor the pressure gauge. Turn off the compressor once the desired pressure is reached.
- Disconnect the hose/nozzle.
- Do not operate the compressor continuously for more than 10 minutes. Allow it to cool down for 10 minutes between uses.
Using the 12V DC Power Outlet and USB Ports
The power station provides portable power for various devices.
- 12V DC Outlet: Plug your 12V DC appliance (e.g., portable cooler, car vacuum) directly into the 12V DC outlet. Ensure the appliance does not exceed the power station's maximum output.
- USB Ports: Connect your USB-powered devices (e.g., smartphones, tablets) to the USB charging ports using their respective USB cables.
Charging the Power Station
Regular charging is crucial for maintaining the internal battery's health and readiness.
- AC Charging: Use the provided AC adapter to charge from a standard wall outlet. This is the primary charging method.
- DC Charging: Use the provided DC charging adapter to charge from a vehicle's 12V DC accessory outlet (cigarette lighter socket). This method is slower and primarily for maintaining charge, not for full recharging.
- Always ensure the unit is fully charged after each use and every 30 days when stored.
Maintenance
- Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Battery Care: Keep the internal battery fully charged. A discharged battery can be permanently damaged.
- Storage: Store the power station in a cool, dry place, away from direct sunlight and extreme temperatures.
- Cable Inspection: Periodically inspect the jumper cables and clamps for any damage or corrosion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Internal battery is discharged. | Recharge the unit fully. |
| Vehicle does not jump start. | Incorrect cable connection; vehicle battery completely dead; unit not fully charged. | Check connections; ensure unit is fully charged; allow vehicle battery to charge for a few minutes before attempting to start. |
| Air compressor not inflating. | Hose not securely connected; unit not turned on; internal battery low. | Ensure hose is tightly screwed on; turn on compressor switch; recharge unit. |
| USB ports not charging. | Unit battery low; device not compatible. | Recharge unit; check device's power requirements. |
Specifications
- Model: PPRH5B (MSS1119528Y02)
- Brand: BLACK+DECKER
- Voltage: 120 Volts (Input for charging)
- Item Weight: Approximately 9 kg (19.85 Pounds)
- Power Source: Corded Electric (for charging) / Internal Battery (for output)
- UPC: 814632011071
- Manufacturer: BLACK & DECKER
Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or visit the official BLACK+DECKER website. Keep your purchase receipt as proof of purchase.
Website: www.blackanddecker.com
