1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Complete Tractor 1700-0134 Starter Motor. This starter is designed to meet OEM quality standards for tractors and farm equipment, ensuring reliable performance. Please read this manual thoroughly before attempting any installation or maintenance.

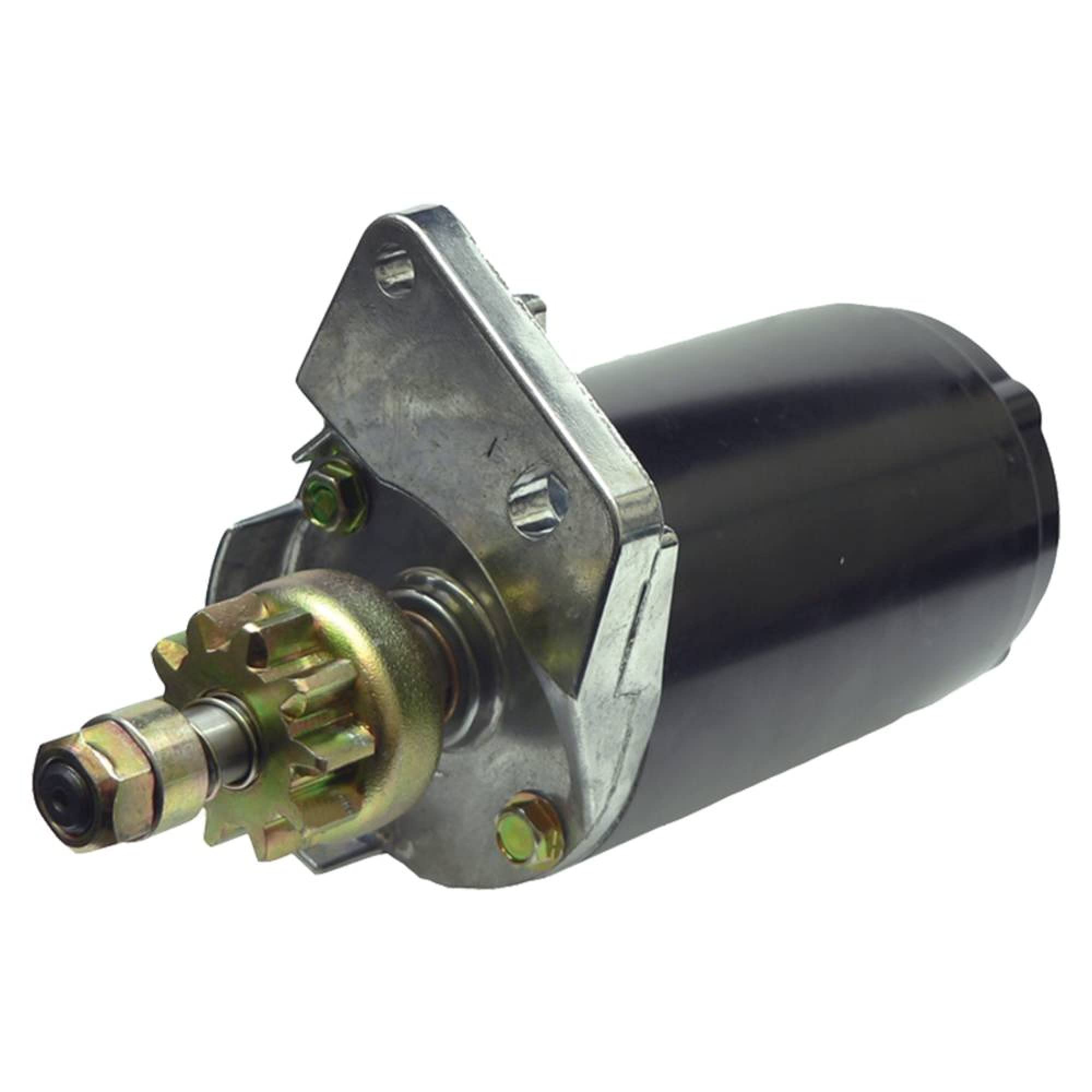

Image 1.1: Complete Tractor 1700-0134 Starter Motor. This image shows the starter motor from a side angle, highlighting its main body and gear assembly.
2. Safety Information
Always prioritize safety when working with machinery and electrical components. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Disconnect Battery: Always disconnect the vehicle's battery terminals (negative first) before beginning any work on the starter motor or electrical system.
- Wear Protective Gear: Use appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
- Secure Vehicle: Ensure the vehicle is on a stable, level surface and properly supported with jack stands if lifted. Engage the parking brake.
- Avoid Short Circuits: Be careful not to short-circuit battery terminals or electrical connections with tools.
- Professional Installation: If you are unsure about any step, consult a qualified mechanic or technician.
3. Compatibility
The 1700-0134 Starter Motor is compatible with the following models and part numbers:
- Case/International Harvester: 1816C Skid Steer, 4125 Indust/Const
- Massey Ferguson: 1655 Lawn/Garden Tractor
Replaces Part Numbers:
- Case/International Harvester: 77115C91, N9552
- Massey Ferguson: 1048848M91
4. Setup and Installation
This section provides general guidelines for replacing a starter motor. Specific procedures may vary by vehicle model. Always refer to your vehicle's service manual for detailed instructions.
- Preparation: Ensure the vehicle is turned off, the ignition key is removed, and the battery is disconnected (negative terminal first).
- Locate Starter: Identify the location of the existing starter motor, typically mounted on the engine block near the flywheel.
- Disconnect Wiring: Carefully disconnect all electrical connections from the old starter, noting their positions for reinstallation. This usually includes a heavy gauge battery cable and a smaller solenoid wire.
- Remove Mounting Bolts: Unbolt the old starter motor from the engine block. Be prepared for the starter to be heavy.
- Remove Old Starter: Carefully maneuver and remove the old starter motor from its position.
- Install New Starter: Position the new Complete Tractor 1700-0134 Starter Motor in place. Ensure it seats correctly.
- Secure Mounting Bolts: Install and tighten the mounting bolts to the manufacturer's specified torque.
- Reconnect Wiring: Reconnect all electrical wires to the new starter motor, ensuring connections are clean and tight.
- Reconnect Battery: Reconnect the battery terminals (positive first, then negative).
- Test: Attempt to start the vehicle to confirm proper operation.

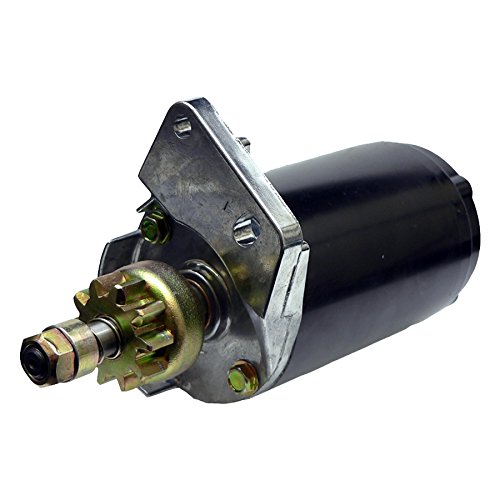

Image 4.1: Front view of the starter motor's gear assembly. This image highlights the pinion gear and mounting flange, crucial for installation.
5. Operating Principles
The starter motor is an electric motor that rotates the engine's flywheel to initiate the combustion process. When the ignition key is turned to the 'start' position, electrical current flows to the starter solenoid. The solenoid engages the starter's pinion gear with the engine's flywheel and simultaneously sends power to the starter motor, causing it to spin. Once the engine starts, the solenoid disengages the pinion gear from the flywheel to prevent damage.
6. Maintenance
Starter motors generally require minimal maintenance. However, periodic checks can help ensure longevity and reliable operation:
- Inspect Connections: Periodically check all electrical connections to the starter motor and battery for corrosion or looseness. Clean and tighten as necessary.
- Battery Health: Ensure the vehicle's battery is in good condition and fully charged. A weak battery can mimic starter problems.
- Cable Integrity: Inspect battery cables and starter cables for fraying, cracks, or damage. Replace any damaged cables.
7. Troubleshooting
If the vehicle fails to start, consider the following common issues:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine does not crank or cranks slowly | Weak or dead battery, loose/corroded battery terminals, faulty starter motor, faulty solenoid, wiring issues | Check battery charge and terminals. Test starter motor and solenoid. Inspect wiring. |
| Starter spins but engine does not crank | Faulty starter drive (bendix), damaged flywheel teeth | Replace starter motor. Inspect flywheel for damage. |
| Clicking sound when attempting to start | Low battery voltage, faulty solenoid, poor electrical connection | Charge/replace battery. Check battery and starter connections. Test solenoid. |
If troubleshooting steps do not resolve the issue, professional diagnosis may be required.
8. Specifications
Key specifications for the Complete Tractor 1700-0134 Starter Motor:
- Type: Starter
- Item Weight: 7 pounds (3.17 kg)
- Manufacturer: Complete Tractor
- Material: Tra (General material classification, specific alloys not detailed)
- UPC: 611188595303

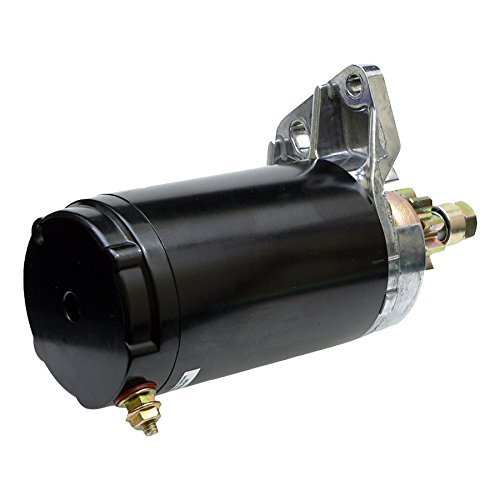

Image 8.1: Rear view of the starter motor, showing the electrical terminals. This view is important for correct wiring connections during installation.
9. Warranty Information
The Complete Tractor 1700-0134 Starter Motor comes with a 1-year warranty. This warranty covers manufacturing defects and ensures reliable performance throughout planting and harvesting seasons. For warranty claims or further details, please contact Complete Tractor customer support.
10. Support
For technical assistance, parts inquiries, or warranty support, please refer to the contact information provided by your Complete Tractor product retailer or visit the official Complete Tractor website. When contacting support, please have your model number (1700-0134) and purchase details readily available.
