HCDZ Replacement Remote Control Instruction Manual

1. Introduction

This manual provides essential information for the proper setup, operation, and maintenance of your HCDZ Replacement Remote Control. This remote is designed as a direct replacement for various Samsung Plasma, LCD, and LED HDTV TV models, including UN32EH4050F, UN32EH5000F, HG46NA578LF, and HG46NA578LFXZA. It operates using infrared (IR) technology and requires no programming.

2. Setup

2.1 Battery Installation

To begin using your remote control, you must install two new batteries (not included). Follow these steps:

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery cover downwards or in the direction indicated by an arrow to open it.
3. Insert two new batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery cover back into place until it clicks securely.

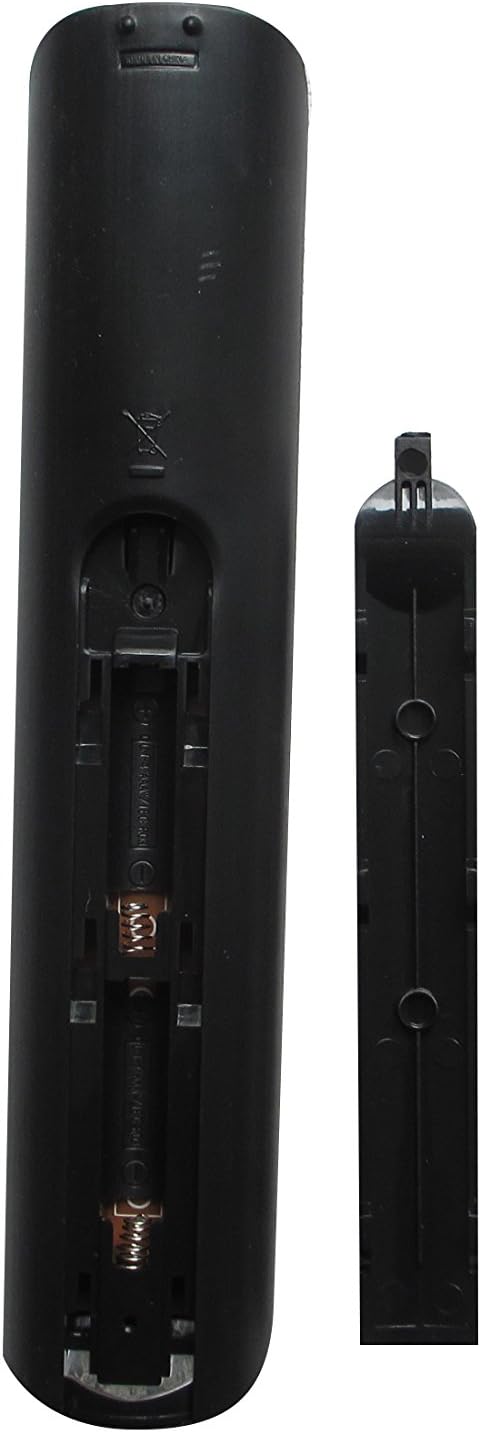

Figure 1: Battery compartment on the back of the remote control.

Note: The remote control is ready for use immediately after battery installation. No programming is required.

3. Operating Instructions

Point the remote control directly at your Samsung TV. Ensure there are no obstructions between the remote and the TV's infrared receiver.

3.1 Button Functions

The remote control features standard buttons for TV operation. Refer to the image below for button layout and general functions:

Figure 2: Front view of the HCDZ Replacement Remote Control.

• Power (⏻): Turns the TV on or off.
• Source: Selects input sources (e.g., HDMI, AV).
• Number Pad (0-9): Directly enters channel numbers.
• Volume (+/-): Adjusts the TV's volume level.
• Mute (🔇): Mutes or unmutes the TV sound.
• Channel (CH +/-): Changes TV channels up or down.
• Menu: Accesses the TV's main menu.
• Smart Hub: Opens the Samsung Smart Hub interface.
• Info: Displays information about the current program or input.
• Tools: Accesses quick settings or tools menu.
• Guide: Opens the electronic program guide.
• Exit: Closes menus or returns to the previous screen.
• Directional Pad (Up, Down, Left, Right) & Enter: Navigates through menus and confirms selections.
• Return: Goes back to the previous menu or screen.
• Color Buttons (A, B, C, D): Functions vary depending on the TV application or menu.
• Search: Opens the search function.
• CC (Closed Caption): Toggles closed captions on or off.
• E-Manual: Accesses the TV's electronic manual.
• History: Displays recently viewed channels or content.
• Playback Controls (Play, Pause, Stop, Fast Forward, Rewind): Controls media playback.

4. Maintenance

4.1 Cleaning

To clean the remote control, use a soft, dry cloth. For stubborn dirt, lightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive materials, as these can damage the remote's surface or internal components.

4.2 Battery Replacement

Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new ones of the same type. Do not mix old and new batteries, or different types of batteries.

4.3 Storage

When not in use for extended periods, remove the batteries to prevent leakage, which can damage the remote. Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.

5. Troubleshooting

• Remote not working:
  • Ensure batteries are installed correctly with the correct polarity.
  • Replace old batteries with new ones.
  • Check for any obstructions between the remote and the TV's IR receiver.
  • Make sure you are pointing the remote directly at the TV.
• Limited range:
  • Ensure batteries are fresh.
  • Verify there are no strong light sources (like direct sunlight) interfering with the IR signal.
  • The maximum effective range is approximately 8 meters (26 feet).

6. Specifications

7. Warranty and Support

Specific warranty information for this HCDZ Replacement Remote Control is not provided in the product details. For any warranty claims, technical support, or further assistance, please contact the seller or manufacturer directly through your purchase platform.
