1. Introduction and Safety Information
This manual provides essential information for the safe and efficient operation of your Holzmann K5 260 L 230V 5-function combination woodworking machine. Please read all instructions carefully before assembly, operation, or maintenance. Failure to follow these instructions may result in serious injury or damage to the machine.
General Safety Warnings:
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and dust mask.
- Ensure the machine is properly grounded and connected to the correct voltage supply (230V).
- Keep the work area clean and well-lit. Cluttered areas invite accidents.
- Do not operate the machine under the influence of drugs, alcohol, or medication.
- Keep hands and body clear of moving parts, especially blades and cutters.
- Always use guards and safety devices provided with the machine.
- Disconnect power before making adjustments, changing accessories, or performing maintenance.
- Securely fasten all workpieces before machining.
2. Product Overview
The Holzmann K5 260 L is a compact and versatile 5-function combination woodworking machine designed for various wood processing tasks. It integrates a circular saw, milling (spindle moulder), planing (jointer), and thicknessing (thickness planer) functions into a single unit, offering efficiency and space-saving benefits.
Key Features:
- Circular Saw: Blade can be tilted up to 45° for angled cuts.
- Work Table: Large grey cast iron work table with T-slot guide and angle stop (up to +/- 45°).
- Motor System: Three independent powerful motors for consistent performance across all functions.
- Planer: Solid 3-knife planer with pre-assembled HSS knives for smooth finishes.
- Function Selection: Convenient rotary switch for easy selection between different machine functions.
Included Components:
- Milling guard
- Angle stop
- Hold-down device
- Miter stop with stop
- Parallel stop
- Jointer stop (90°-45° swiveling)
- Planer knife adjustment tool
- Control tools
Figure 2.1: Overview of the Holzmann K5 260 L 5-Function Combination Woodworking Machine. This image shows the machine in its primary configuration, highlighting the main work table and controls.
3. Setup and Assembly
Proper setup is crucial for safe and accurate operation. Ensure the machine is placed on a stable, level surface capable of supporting its weight (approximately 390 kg). Allow sufficient space around the machine for safe operation and material handling.
Initial Setup Steps:
- Unpacking: Carefully unpack all components and check against the packing list. Report any damage or missing parts immediately.
- Positioning: Place the machine in its intended location, ensuring adequate ventilation and clearance.
- Leveling: Use a spirit level to ensure the machine's work table is perfectly level. Adjust the machine's feet if necessary.
- Electrical Connection: Connect the machine to a dedicated 230V power supply with appropriate circuit protection. Verify the voltage matches the machine's requirements.
- Dust Extraction: Connect a suitable dust extraction system to the 100mm extraction connection point to maintain a clean and safe working environment.
- Install Guards: Ensure all safety guards, such as the milling guard and saw blade guard, are correctly installed and functional before operation.
4. Operating Instructions
The Holzmann K5 260 L offers five primary woodworking functions. Always select the desired function using the rotary switch and ensure all other functions are disengaged or safely guarded before starting work.
4.1 Circular Saw Operation
Figure 4.1.1: Close-up view of the circular saw table and control panel. This image highlights the angle adjustment mechanism for the saw blade and the main power controls.
- Function Selection: Turn the rotary switch to the circular saw setting.
- Blade Installation: Ensure the correct saw blade is installed and securely tightened.
- Depth Adjustment: Adjust the blade height to cut slightly deeper than the material thickness.
- Angle Adjustment: For miter cuts, use the angle adjustment mechanism to tilt the blade up to 45°.
- Fence Setup: Position the parallel stop or miter stop as required for your cut.
- Operation: Power on the machine. Allow the blade to reach full speed before slowly feeding the workpiece. Use push sticks for narrow pieces.
4.2 Milling (Spindle Moulder) Operation

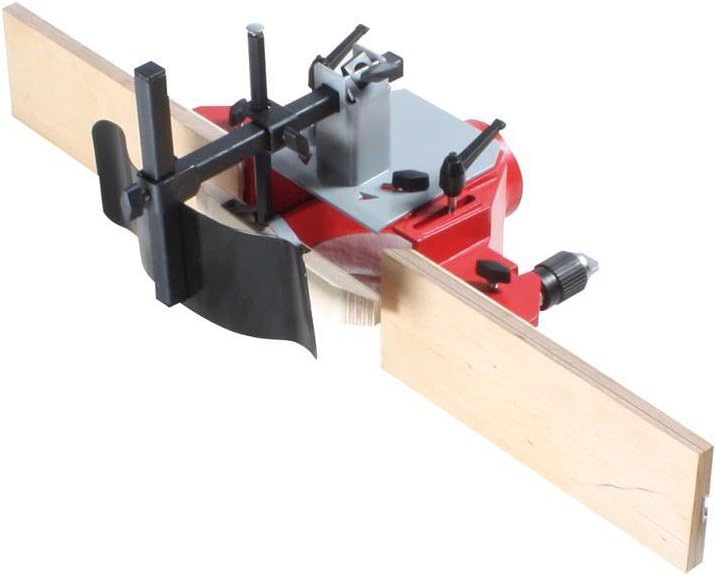

Figure 4.2.1: The milling attachment, also known as a spindle moulder, for the Holzmann K5 260 L. This shows the setup for shaping wood profiles.
- Function Selection: Turn the rotary switch to the milling setting.
- Cutter Installation: Install the appropriate milling cutter onto the 30mm spindle. Ensure it is securely fastened.
- Guard Setup: Position the milling guard to safely enclose the cutter, leaving only the necessary portion exposed for the workpiece.
- Depth and Height Adjustment: Adjust the spindle height and fence position to achieve the desired profile and depth of cut.
- Operation: Power on the machine. Allow the spindle to reach its operating speed (6500 RPM). Feed the workpiece smoothly and consistently against the fence.
4.3 Planing (Jointer) Operation
Figure 4.3.1: The planing section of the Holzmann K5 260 L, showing the jointer tables and the protective guard. This configuration is used for flattening and squaring wood surfaces.
- Function Selection: Turn the rotary switch to the planing setting.
- Depth of Cut: Adjust the infeed table to set the desired depth of cut (maximum 5mm).
- Jointer Stop: Set the jointer stop (fence) to the desired angle (90°-45° swiveling) for squaring edges.
- Operation: Power on the machine. Feed the workpiece evenly across the jointer tables, keeping it firmly pressed against the fence and table.
4.4 Thicknessing (Thickness Planer) Operation
The thicknessing function allows you to reduce the thickness of wood to a uniform dimension. This typically involves adjusting the height of the thicknessing table.
- Function Selection: Turn the rotary switch to the thicknessing setting.
- Table Adjustment: Adjust the thicknessing table height to achieve the desired final thickness of the workpiece. Take light passes for best results.
- Operation: Power on the machine. The machine's feed mechanism will automatically pull the workpiece through the planer head. Ensure the workpiece is properly supported on both ends.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Holzmann K5 260 L machine. Always disconnect the machine from the power supply before performing any maintenance.
Maintenance Schedule:
- After Each Use: Clean the machine thoroughly, removing all sawdust and chips. Use a brush or vacuum cleaner.
- Weekly/Monthly:
- Inspect all blades and cutters for sharpness and damage. Replace or sharpen as needed.
- Check all fasteners for tightness.
- Lubricate moving parts and adjustment mechanisms according to the lubrication points indicated in the machine diagram (refer to the full manual for details).
- Inspect electrical cords and connections for damage.
- Annually: Have the machine inspected by a qualified technician for wear and tear on critical components.
6. Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, or if issues persist, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply; Emergency stop engaged; Thermal overload tripped. | Check power connection and circuit breaker; Release emergency stop; Allow motor to cool and reset. |
| Poor cut quality (saw/planer/milling) | Dull blade/cutter; Incorrect speed; Improper feed rate; Loose workpiece. | Replace or sharpen blade/cutter; Verify correct settings; Adjust feed rate; Secure workpiece firmly. |
| Excessive vibration/noise | Unbalanced blade/cutter; Loose components; Worn bearings. | Check for balanced tools; Tighten all fasteners; Contact service for bearing inspection. |
7. Technical Specifications
Below are the key technical specifications for the Holzmann K5 260 L 230V combination woodworking machine.
| Specification | Value |
|---|---|
| Model | K5260L_230V |
| Voltage | 230 V |
| Motor Power S6 | 3100/2100/2100 W (for 3 motors) |
| Wattage | 7300 W |
| Feed Speed | 8 m/min |
| Table Size | 980 x 470 mm |
| Table Height | 840 mm |
| Sliding Table | 250 x 400 mm |
| Extraction Connection | 100 mm |
| Jointer Table Length | 1090 mm |
| Jointer Max. Cut | 5 mm |
| Planer Shaft Diameter | 75 mm |
| Planer Shaft Speed | 4500 RPM |
| Number of Planer Knives | 3 |
| Milling Spindle Diameter | 30 mm |
| Milling Spindle Speed | 6500 RPM |
| Spindle Stroke | 100 mm |
| Max. Clamping Height (Milling) | 80 mm |
| Item Weight | 390 kg |
| Blade Material | Carbon Steel |
| Special Features | Depth Adjustment |
8. Warranty and Support
Specific warranty details for the Holzmann K5 260 L 230V machine are not provided in this document. Please refer to your purchase documentation or contact your authorized Holzmann dealer for information regarding warranty coverage and terms.
Customer Support:
For technical assistance, spare parts, or service inquiries, please contact your local Holzmann distributor or the retailer from whom you purchased the machine. Always provide the model number (K5260L_230V) and serial number when seeking support.
