1. Introduction
This manual provides essential instructions for the Fastrack Digital Watch, Model 68004PP02J. This watch features an LCD display for time-keeping, including hour, minute, second, year, month, and day. It is designed with a black dial, rectangular case, and a purple silicone band, offering a blend of functionality and style.
Key features include a Quartz movement, digital display, and a case diameter of 35.9 millimeters. The watch is also water-resistant up to 30 meters.
2. Product Overview
2.1 Watch Components
- Display: Digital LCD screen showing time, date, and other functions.
- ADJ Button: Used for adjusting values during setting modes.
- MODE Button: Used to cycle through different display modes (Time, Date, Alarm, Stopwatch).
- Strap: Durable purple silicone band.
- Case Back: Houses the watch movement and battery compartment.
Figure 2.1: Front view of the Fastrack Digital Watch, showing the digital display and the 'ADJ' and 'MODE' buttons on the side of the case.
3. Setup
3.1 Setting Time and Date
To ensure accurate timekeeping, follow these steps to set the time and date on your Fastrack Digital Watch:
- From the normal time display, press the MODE button repeatedly until the desired setting mode (e.g., Time Setting) is displayed. The seconds display may start flashing.
- Once in the setting mode, press the ADJ button to select the value you wish to adjust (e.g., hours, minutes, year, month, day). The selected value will flash.
- While a value is flashing, press the MODE button to increase the value. Hold the MODE button to rapidly advance the value.
- Repeat steps 2 and 3 for all values you need to set (hours, minutes, AM/PM, year, month, day).
- After setting all desired values, press the ADJ button again to exit the setting mode and return to the normal time display.
Note: If the buttons do not respond, ensure they are not stuck and the watch battery has sufficient power.
4. Operating the Watch
4.1 Display Modes
Your Fastrack Digital Watch offers various display modes accessible via the MODE button:
- Time Display: Shows current hour, minute, and second.
- Date Display: Shows year, month, and day.
- Alarm Mode: Allows setting and activating an alarm.
- Stopwatch Mode: For timing events.
Press the MODE button repeatedly to cycle through these functions. The display will change accordingly.
5. Maintenance
5.1 Water Resistance
This watch is water-resistant up to 30 meters (3 ATM). This rating means the watch is suitable for everyday use and can withstand splashes, rain, or brief immersion in water. It is not suitable for swimming, diving, or showering, as prolonged water exposure or high-pressure water jets can compromise the seals.
5.2 Cleaning and Care
- Wipe the watch case and strap regularly with a soft, dry cloth to remove dirt and moisture.
- For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
- Avoid exposing the watch to extreme temperatures, direct sunlight for extended periods, or strong magnetic fields.
- Keep the watch away from harsh chemicals, solvents, and detergents, as these can damage the case and strap materials.
5.3 Battery Replacement
The watch is powered by a button-cell battery. If the display becomes dim or the watch stops functioning, the battery may need replacement. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and prevent damage to the internal components.

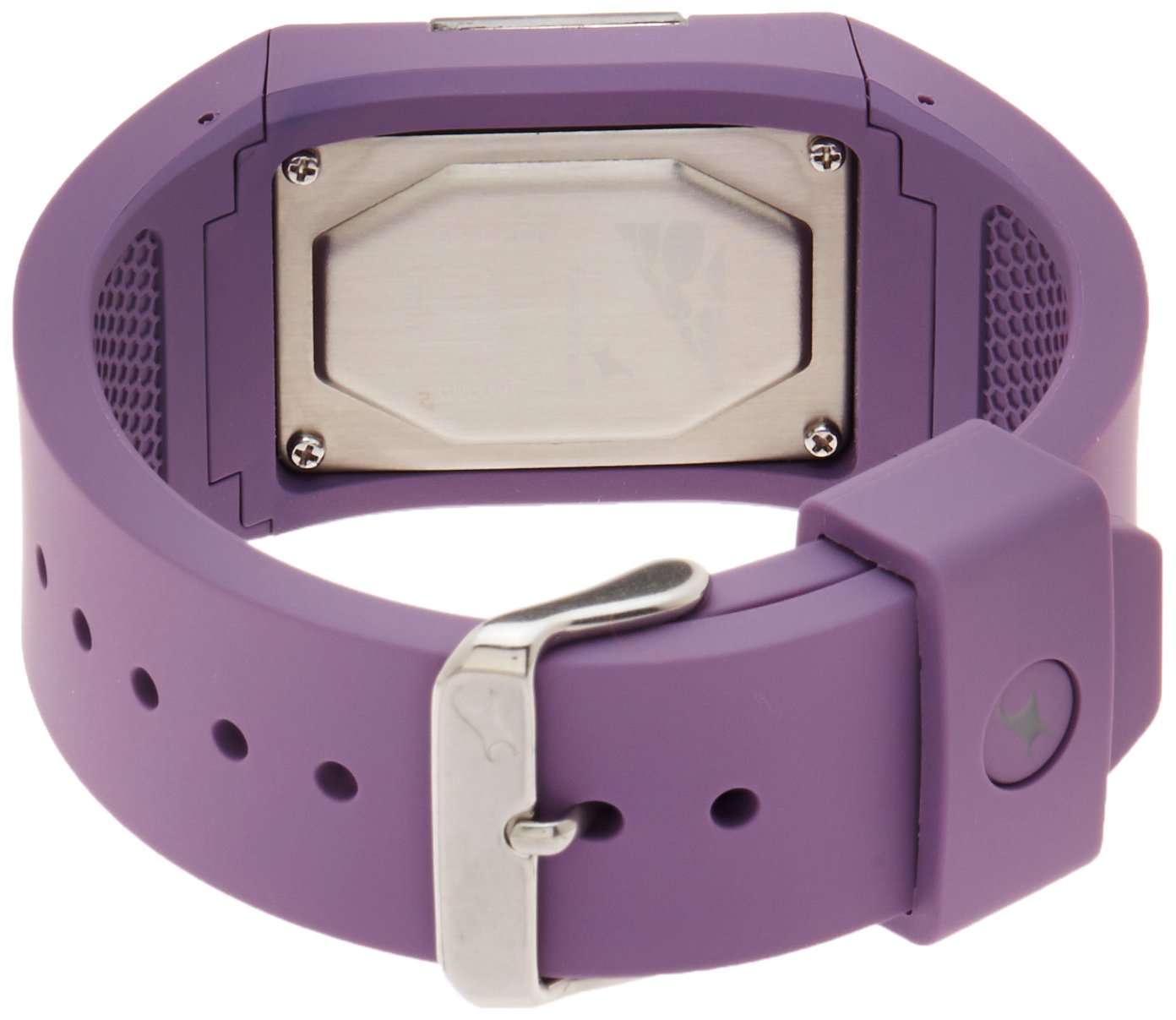

Figure 5.1: Back view of the Fastrack Digital Watch, showing the stainless steel case back secured by screws, indicating the battery compartment location.
6. Troubleshooting
If you encounter issues with your Fastrack Digital Watch, refer to the table below for common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch not working / Display blank | Dead or low battery. | Replace the battery. Consult a professional watch technician. |
| Cannot set time/date | Buttons not responding or incorrect procedure. | Ensure buttons are not stuck. Refer to Section 3.1 for correct setting procedure. If buttons are faulty, seek professional repair. |
| Display is dim or flickering | Low battery or internal circuit issue. | Replace the battery. If the problem persists, contact customer support. |
| Water ingress after exposure | Exceeded water resistance limits or damaged seals. | Immediately stop using the watch. Take it to a professional for inspection and repair. Avoid further water exposure. |
7. Specifications
| Feature | Detail |
|---|---|
| Item Model Number | 68004PP02J |
| Manufacturer | Fastrack |
| Watch Movement Type | Quartz |
| Watch Display Type | Digital |
| Dial Color | Black |
| Case Shape | Rectangular |
| Case Diameter | 35.9 Millimeters |
| Band Color | Purple |
| Band Material Type | Silicone |
| Water Resistance Depth | 30 Meters |
| Item Weight | 110 g |
8. Warranty and Support
8.1 Manufacturer Warranty
Your Fastrack Digital Watch Model 68004PP02J comes with a 12 Months Manufacturer Warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from accidents, improper use, unauthorized repairs, or normal wear and tear.
8.2 Customer Support
For warranty claims, technical assistance, or any other inquiries regarding your Fastrack watch, please contact Fastrack customer service. Refer to the official Fastrack website or your purchase documentation for contact details.
