Astrum ELETE Combe UB USB Keyboard and Mouse Combo KC110 User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Astrum ELETE Combe UB USB Keyboard and Mouse Combo KC110. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

The Astrum ELETE Combe UB is designed for comfort and efficiency, featuring low-profile Quiet Touch keys and a spill-resistant design. It is a plug-and-play device, making it easy to set up for both home and office environments.

Product Features

• Comfortable Typing: Designed with low-profile Quiet Touch keys for a comfortable typing experience.
• Spill-Resistant Design: Protects the keyboard from accidental liquid spills.
• Elegant Design: Suitable for various home and office setups.
• Plug and Play USB: Simple USB connection for immediate use without driver installation.
• Multimedia Keys: Features 7 hot multimedia keys for easy access to common functions and web browsing.
• Optical Mouse: Includes a 1000dpi optical mouse for precise and smooth cursor control.
• US Layout: Keyboard features a standard US layout.

Package Contents

• Astrum ELETE Combe UB USB Keyboard
• Astrum ELETE Combe UB USB Mouse

Image: The Astrum ELETE Combe UB Keyboard and Mouse Combo as packaged in its retail box.

Setup Instructions

1. Unpack the Combo: Carefully remove the keyboard and mouse from their packaging.
2. Connect the Keyboard: Locate an available USB port on your computer. Insert the USB connector of the keyboard into the USB port.
3. Connect the Mouse: Locate another available USB port on your computer. Insert the USB connector of the mouse into the USB port.
4. System Recognition: Your operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers. This process typically takes a few seconds. No additional software installation is required.
5. Test Functionality:
   • Open a text editor (e.g., Notepad, WordPad) and type to ensure the keyboard is functioning correctly.
   • Move the mouse cursor around the screen and click to verify mouse functionality.

Image: The Astrum ELETE Combe UB USB Keyboard and Mouse Combo, ready for connection.

Operating Instructions

Keyboard Usage

The Astrum ELETE Combe UB keyboard operates like a standard USB keyboard. Its low-profile keys provide a comfortable and quiet typing experience.

Multimedia Hotkeys

The keyboard features 7 dedicated multimedia hotkeys located at the top right. These keys provide quick access to common functions:

• Play/Pause: Control media playback.
• Stop: Stop media playback.
• Previous Track: Go to the previous media track.
• Next Track: Go to the next media track.
• Volume Up: Increase system volume.
• Volume Down: Decrease system volume.
• Mute: Mute/unmute system volume.

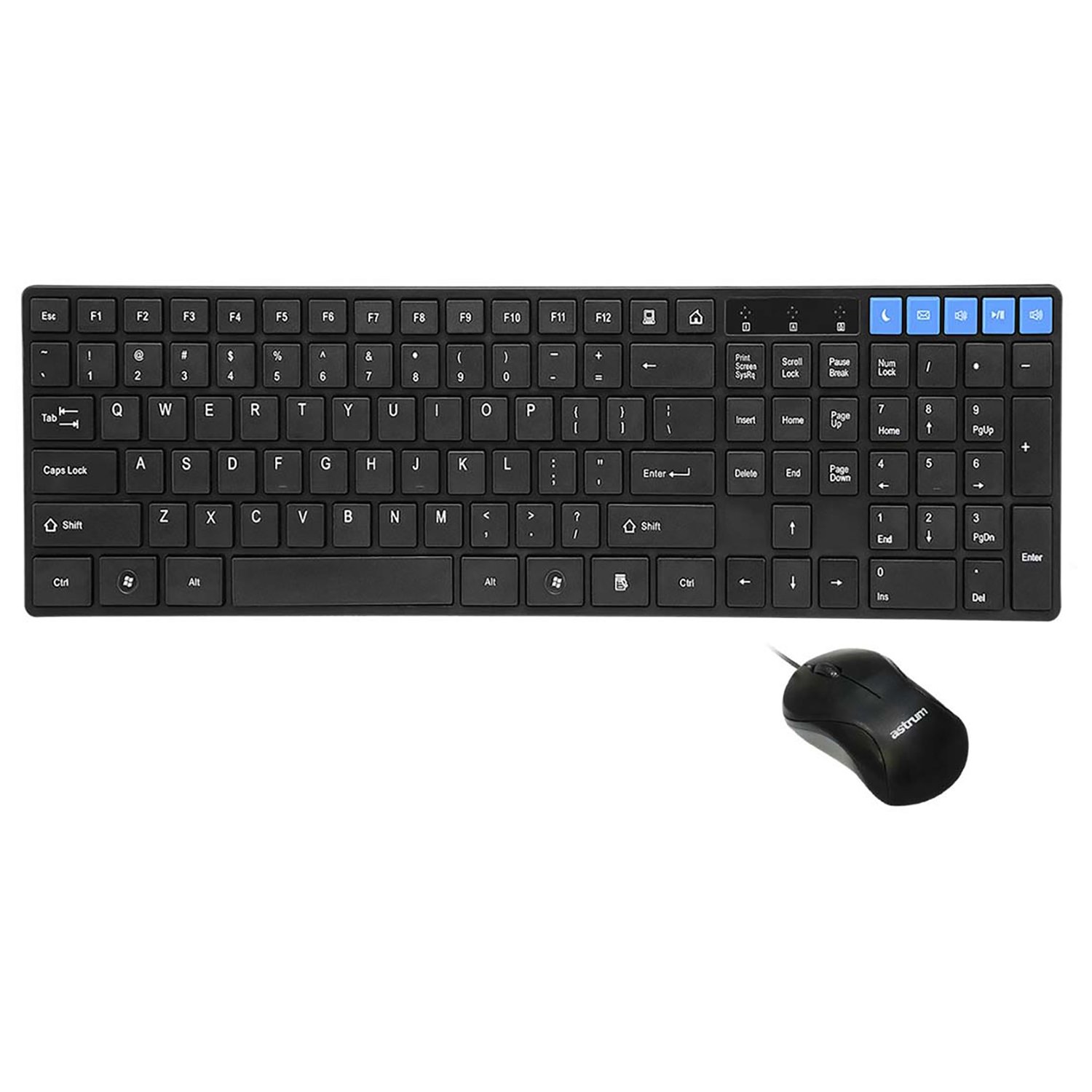

Image: Top-down view of the keyboard and mouse, showing the layout and multimedia keys.

Mouse Usage

The included optical mouse provides precise cursor control. It features standard left-click, right-click, and scroll wheel functionality.

• Left Click: Primary action, selection, opening items.
• Right Click: Opens context menus.
• Scroll Wheel: Scroll through documents and web pages. Can also function as a middle-click button.

Maintenance and Care

To ensure the longevity and optimal performance of your Astrum ELETE Combe UB combo, follow these maintenance guidelines:

• Cleaning:
  • Disconnect the keyboard and mouse from your computer before cleaning.
  • Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid harsh chemicals, abrasives, or solvents.
  • For the keyboard, you can use compressed air to remove dust and debris from between the keys.
  • For the mouse, clean the optical sensor area periodically to ensure smooth tracking.
• Spill Resistance: While the keyboard is spill-resistant, it is not waterproof. In case of a spill, immediately disconnect the keyboard, wipe off the liquid, and allow it to dry completely before reconnecting.
• Storage: Store the combo in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
• Handling: Avoid dropping the devices or subjecting them to strong impacts. Do not attempt to disassemble the keyboard or mouse, as this will void the warranty.

Troubleshooting

If you encounter issues with your Astrum ELETE Combe UB combo, please refer to the following common solutions:

• Keyboard or Mouse Not Responding:
  • Ensure both USB connectors are firmly plugged into the computer's USB ports.
  • Try plugging the keyboard and mouse into different USB ports on your computer.
  • Restart your computer.
  • If using a USB hub, try connecting directly to the computer's USB ports.
• Keys Not Working or Typing Incorrectly:
  • Check for any physical obstructions under the keys.
  • Ensure the keyboard layout in your operating system settings matches a US layout.
  • Test the keyboard on another computer to rule out a system-specific issue.
• Mouse Cursor Jumps or is Erratic:
  • Clean the optical sensor on the bottom of the mouse.
  • Ensure you are using the mouse on a clean, non-reflective, and uniform surface. Mouse pads are recommended.
  • Try connecting the mouse to a different USB port.
• Multimedia Keys Not Functioning:
  • Ensure your media player or browser is active and supports standard multimedia key commands.
  • Some operating systems may require specific settings for multimedia keys; consult your OS documentation if issues persist.

If the problem persists after trying these steps, please contact Astrum customer support.

Specifications

Warranty and Support

Astrum products are designed for reliability and performance. For information regarding warranty coverage and terms, please refer to the warranty policy provided with your purchase or visit the official Astrum website.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Astrum customer service through their official channels. Details can typically be found on the product packaging or the Astrum brand website.

Legal Disclaimer: The information provided in this manual is for general guidance. Specifications and features are subject to change without notice.
