1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your DOULTON W9331208 Countertop Water Filtration System. The W9331208 is a durable stainless steel system designed to filter drinking water. It includes a reusable ceramic filter cartridge intended to reduce common contaminants and improve water taste and odor.
Please read this manual thoroughly before attempting to install or operate the system. Retain this manual for future reference.
2. Safety Information
- Always ensure the system is securely connected to the faucet to prevent leaks.
- Do not use hot water through the filter system. This system is designed for cold water use only.
- Avoid dropping or striking the ceramic filter cartridge, as it can crack and compromise filtration effectiveness.
- Do not use abrasive cleaners on the stainless steel housing. Use a soft cloth and mild detergent.
- Ensure all connections are hand-tightened initially, then gently snugged with a wrench if necessary, to avoid overtightening and damaging threads.
3. Product Components
The DOULTON W9331208 Countertop Filter System typically includes the following components:
- Stainless Steel Filter Housing
- Ceramic Filter Cartridge (pre-installed or separate)
- Diverter Valve (for faucet connection)
- Connection Tubing
- Faucet Adapters (various sizes)

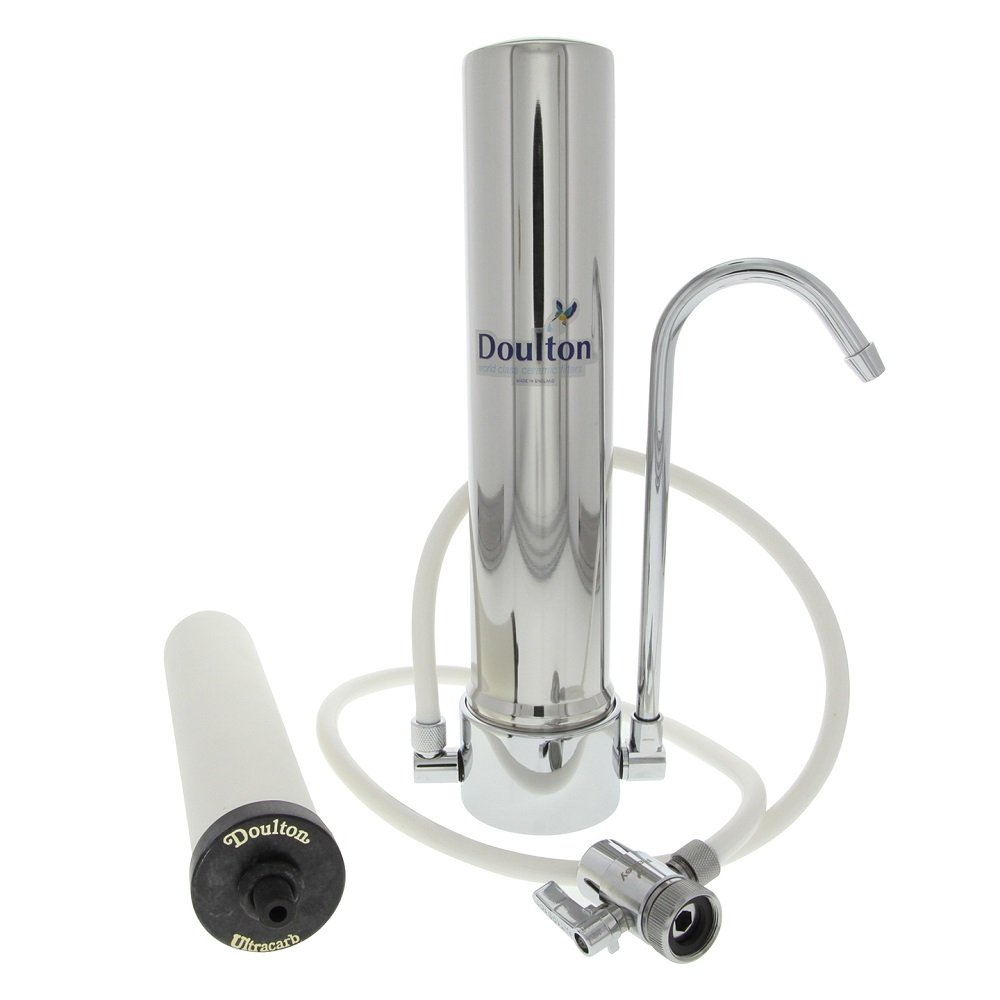

Image 1: The DOULTON W9331208 Countertop Filter System, showcasing its stainless steel housing and connection components.
4. Setup and Installation
The W9331208 is designed for countertop installation. Follow these steps for proper setup:
- Unpack Components: Carefully remove all items from the packaging. Inspect for any damage.
- Prepare Filter Cartridge: If the ceramic filter cartridge is not pre-installed, or if it has protective packaging, gently remove any bubble wrap or protective covering from the ceramic candle. Exercise caution as the ceramic material is fragile.
- Install Filter Cartridge: Unscrew the base of the stainless steel housing. Carefully insert the ceramic filter cartridge into the housing, ensuring it is seated correctly. Screw the base back on, hand-tightening only.
- Connect to Faucet:
- Unscrew the aerator from your kitchen faucet.
- Select the appropriate adapter from the provided kit that matches your faucet's thread. Note: Some faucets have internal threads that may not be compatible with standard adapters. If the provided adapters do not fit, a specialized adapter may be required (not included).
- Attach the diverter valve to the faucet using the selected adapter. Hand-tighten securely.
- Connect the tubing from the filter system to the diverter valve.
- Flush the System: Before first use, turn on the cold water supply to the faucet. Engage the diverter valve to direct water through the filter system. Allow water to run through the filter for at least 5-10 minutes to flush out any manufacturing residues and air. The water may appear cloudy initially; this is normal.
- Check for Leaks: During flushing, carefully inspect all connections for any signs of leaks. Tighten connections gently if necessary.
5. Operating Instructions
The DOULTON W9331208 operates manually and uses ultra-filtration for water purification.
- Filtered Water: To obtain filtered water, turn on your cold water faucet and then activate the diverter valve on the faucet. Water will flow through the filter system and dispense from its spout.
- Unfiltered Water: To obtain unfiltered water (e.g., for washing dishes), simply turn on your cold water faucet and ensure the diverter valve is in the bypass position.
- Flow Rate: The maximum flow rate for filtered water is approximately 0.5 gallons per minute (gpm). A reduced flow rate may indicate a need for filter cleaning or replacement.
- Temperature: Always use cold water only. Hot water can damage the filter cartridge and system components.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your filter system.
6.1. Filter Cartridge Cleaning
The ceramic filter cartridge is reusable and can be cleaned to restore flow rate. Cleaning frequency depends on water quality and usage, but typically every 3-6 months or when flow noticeably decreases.
- Turn off the water supply to the faucet and disengage the diverter valve.
- Disconnect the filter system from the faucet.
- Unscrew the base of the stainless steel housing and carefully remove the ceramic filter cartridge.
- Under cold running water, gently scrub the surface of the ceramic candle with a soft brush or scouring pad (do not use soap or detergents). Scrub until the discolored layer is removed and the ceramic appears white again.
- Rinse the cartridge thoroughly.
- Reassemble the system by inserting the cleaned cartridge, screwing the housing back together, and reconnecting to the faucet.
- Flush the system for a few minutes before use.
6.2. Filter Cartridge Replacement
While the ceramic cartridge is cleanable, it will eventually need replacement. The lifespan depends on water quality and usage. Replace the cartridge when cleaning no longer restores adequate flow or after approximately 6-12 months of use, or as recommended by the manufacturer for your specific water conditions.
To replace, follow steps 1-3 from the cleaning instructions, then insert a new, genuine DOULTON ceramic filter cartridge and reassemble.
6.3. Housing Cleaning
Wipe the exterior of the stainless steel housing with a soft, damp cloth. For stubborn spots, use a mild dish soap solution and rinse thoroughly. Do not use abrasive cleaners or steel wool, as these can scratch the finish.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow from filter spout | Clogged filter cartridge; air in system; kinked tubing | Clean the ceramic filter cartridge (Section 6.1); flush the system to remove air; check tubing for kinks. |
| Water leaking from connections | Loose connections; damaged O-rings/washers; incorrect adapter | Ensure all connections are hand-tight, then gently snug with a wrench if needed; check O-rings/washers for proper seating or damage and replace if necessary; ensure correct faucet adapter is used. |
| Unpleasant taste or odor in filtered water | Filter cartridge exhausted; initial flushing incomplete; contaminated cartridge | Replace the filter cartridge (Section 6.2); flush the system for a longer period; ensure cartridge was not exposed to contaminants. |
| Faucet adapter does not fit | Incompatible faucet threading (e.g., internal threads) | Verify your faucet's threading type. If standard adapters do not fit, a specialized adapter may be required, which is not included with the system. Consult a plumbing professional if unsure. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DOULTON |
| Model Name | W9331208 |
| Installation Type | Countertop |
| Material | Stainless Steel |
| Purification Method | Ultra Filtration |
| Power Source | Manual Operation |
| Maximum Flow Rate | 0.5 gpm |
| Included Components | Filter (Ceramic Filter Cartridge) |
| Capacity | 0.6 gallons (referring to the system's internal volume, not filter capacity) |
9. Warranty and Support
DOULTON products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official DOULTON website. Keep your proof of purchase for warranty claims.
For technical support, replacement parts, or further assistance, please contact DOULTON customer service through their official website or the contact information provided in your product packaging.
