Product Overview
The STANLEY TL601PS is a robust and versatile rechargeable lithium-ion LED flashlight designed for various applications, from household use to outdoor activities and emergency situations. It features high-intensity illumination, multiple lighting modes, and a convenient USB power bank function.

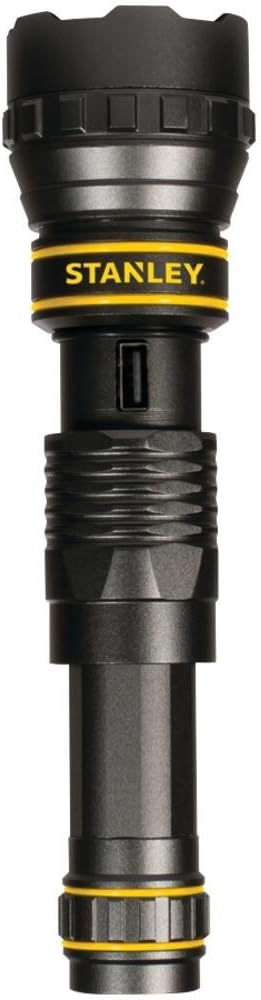

Figure 1: STANLEY TL601PS Rechargeable LED Flashlight. This image shows the overall design of the flashlight, highlighting its black and yellow color scheme and robust construction.
Setup and Initial Use
Charging the Flashlight
Before first use, fully charge the STANLEY TL601PS flashlight. The unit is equipped with a built-in 2-way USB charging port for convenient recharging.
- Locate the USB charging port on the flashlight.
- Connect the flashlight to a compatible USB power source (e.g., wall adapter, computer USB port) using a standard USB cable.
- Allow the flashlight to charge until the charging indicator (if present) shows a full charge. The lithium-ion battery is designed to hold a charge for up to 12 months without needing a recharge, ensuring readiness when needed.
Operating Instructions
Lighting Modes
The STANLEY TL601PS features three distinct lighting modes to suit various illumination needs:
- High Mode: Delivers the maximum output of 700 lumens for powerful, wide-area illumination. Ideal for dark environments or when maximum visibility is required.
- Low Mode: Provides a reduced light output, conserving battery life. Suitable for close-range tasks or when less intense light is sufficient.
- Emergency Flash Mode: Activates a flashing light pattern, useful for signaling or emergency situations to attract attention.
To cycle through the lighting modes, press the power button repeatedly. The flashlight will typically cycle from High to Low to Emergency Flash, then off.
USB Power Bank Function
The built-in 2-way USB charging port also allows the flashlight to function as a portable power bank. You can use it to charge personal electronic devices such as cell phones, tablets, or other USB-powered gadgets.
- Ensure the flashlight has sufficient charge.
- Connect your electronic device to the flashlight's USB output port using the appropriate USB cable for your device.
- The flashlight will begin charging your device.
The runtime of the flashlight is up to 9.5 hours, depending on the mode used and whether the power bank function is active.
Maintenance
Battery Care
- To maintain optimal battery performance, it is recommended to fully charge the flashlight every 3-6 months, even if not in regular use.
- Avoid completely draining the battery before recharging, as this can reduce its overall lifespan.
- Store the flashlight in a cool, dry place when not in use.
Cleaning and Storage
The STANLEY TL601PS features waterproof aluminum housing, making it durable for indoor and outdoor use. To clean the flashlight:
- Wipe the exterior with a soft, damp cloth.
- Do not use abrasive cleaners or solvents, as these may damage the finish.
- Ensure all ports are closed when not in use to maintain water resistance.
Troubleshooting
If you encounter issues with your STANLEY TL601PS flashlight, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is depleted. | Charge the flashlight fully using the USB charging port. |
| Light is dim or flickers. | Low battery charge. | Recharge the flashlight. |
| Device not charging via USB port. | Flashlight battery is low or cable is faulty. | Ensure flashlight is charged. Try a different USB cable. |
| Flashlight not holding charge. | Battery degradation or improper charging. | Ensure proper charging procedures are followed. If issue persists, contact customer support. |
For more detailed troubleshooting or issues not listed, please refer to the official user guide or contact customer support.
Specifications
Figure 2: STANLEY TL601PS Flashlight Dimensions. This image illustrates the physical dimensions of the flashlight, including length and width measurements.
| Feature | Detail |
|---|---|
| Model Number | TL601PS |
| Light Source Type | LED |
| Brightness | 700 Lumens (High Mode) |
| Power Source | Battery Powered (Lithium Ion) |
| Battery Life (Runtime) | Up to 9.5 hours |
| Charge Retention | Up to 12 months without recharge |
| Charging Port | Built-in 2-way USB |
| Material | Aluminum Housing |
| Water Resistance | Waterproof |
| Color | Black |
| Item Weight | 10.9 ounces |
| Product Dimensions | 6.5 x 3.4 x 10 inches |
| Manufacturer | Baccus Global LLC |
| UPC | 814632013129 |
Warranty Information
The STANLEY TL601PS Rechargeable LED Flashlight comes with a limited 1-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use.
For specific terms and conditions of the warranty, please refer to the documentation included with your product or contact the manufacturer directly.
Support and Contact
For further assistance, technical support, or warranty claims, please contact the manufacturer:
- Manufacturer: Baccus Global LLC
- Official User Guide: Download PDF User Guide
Please have your model number (TL601PS) and purchase information ready when contacting support.
