Fenton HF5B 5.0 Home Cinema Speaker System User Manual

1. Introduction

Thank you for choosing the Fenton HF5B 5.0 Home Cinema Speaker System. This system is designed to provide a high-quality audio experience for your home theater and music enjoyment. Please read this manual carefully to ensure proper setup, operation, and maintenance of your speakers.

The Fenton HF5B 5.0 Home Cinema Speaker System features a stylish wooden enclosure, designed to complement any living space. With a robust 335W RMS power output, this 5-speaker system is ideal for enhancing your indoor cinematic and musical experiences.

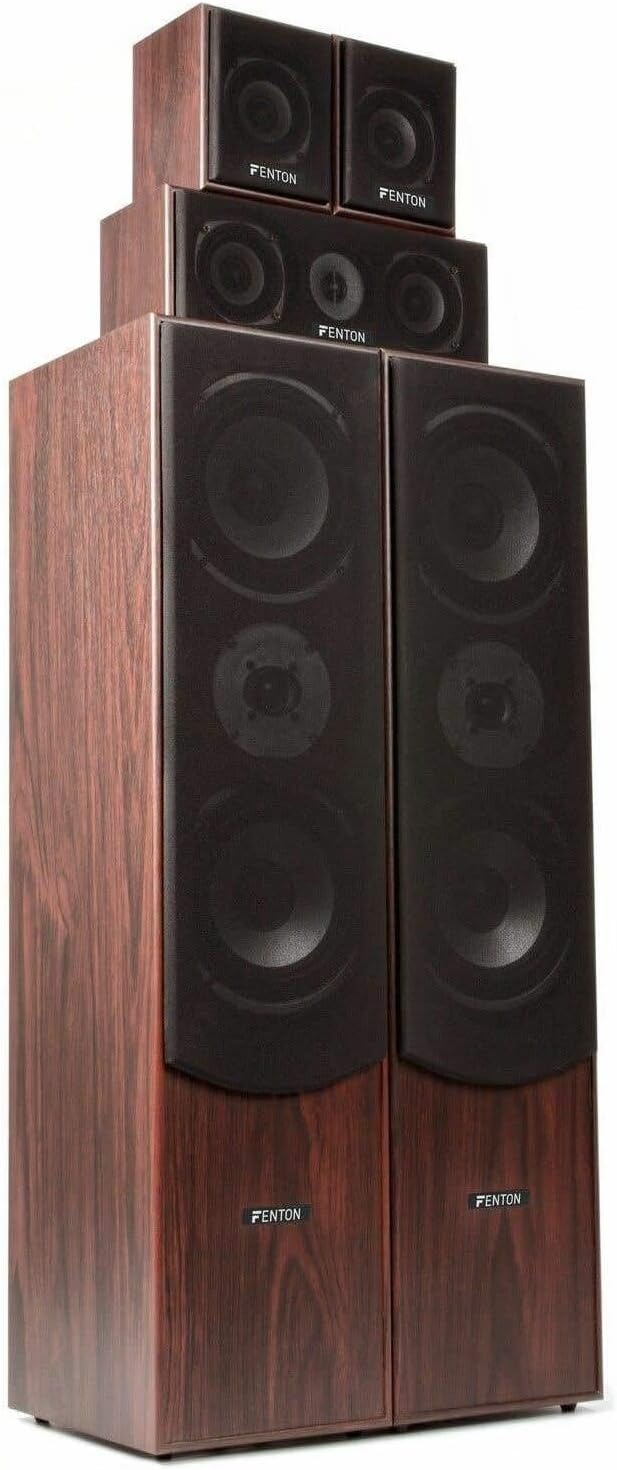

Image 1.1: The complete Fenton HF5B 5.0 Home Cinema Speaker System, including two tower speakers, a center speaker, and two satellite speakers.

The Fenton HF5B 5.0 system delivers powerful audio performance through harmonized components, providing impressive acoustic characteristics and an elegant appearance. Installation is straightforward; the two satellite speakers can be easily wall-mounted. Note that this 5.0 home theater system requires a separate 5-channel amplifier for operation.

2. Package Contents

Please check the contents of your package to ensure all items are present and undamaged:

• 2x Fenton HF5B Tower Speakers (Front Left/Right)
• 1x Fenton HF5B Center Speaker
• 2x Fenton HF5B Satellite Speakers (Surround Left/Right)
• Speaker Cables for easy connection
• 1x User Manual (this document)

3. Setup and Connection

Proper setup is crucial for optimal sound performance. Follow these steps to connect your Fenton HF5B 5.0 speaker system:

3.1. Speaker Placement

• Front Speakers (Tower): Place the two tower speakers (Front Left and Front Right) equidistant from your primary listening position, typically on either side of your television or projection screen. Ensure they are at ear level when seated.
• Center Speaker: Position the center speaker directly above or below your television/screen, centered horizontally. This speaker is vital for clear dialogue.
• Satellite Speakers (Surround): Place the two satellite speakers (Surround Left and Surround Right) to the sides or slightly behind your listening position. They should be elevated, ideally 60-90 cm (2-3 feet) above ear level. These speakers can be wall-mounted using their integrated suspension brackets.

3.2. Connecting to an Amplifier

The Fenton HF5B is a passive speaker system and requires a separate 5-channel amplifier or AV receiver. Ensure your amplifier is turned off before making any connections.

1. Identify Terminals: Each speaker has positive (+) and negative (-) terminals. Your amplifier will also have corresponding terminals for each channel (Front L/R, Center, Surround L/R).
2. Connect Front Speakers: Use the provided speaker cables to connect the Front Left tower speaker to the 'Front Left' output on your amplifier, matching positive to positive and negative to negative. Repeat for the Front Right tower speaker.
3. Connect Center Speaker: Connect the center speaker to the 'Center' output on your amplifier, observing polarity.
4. Connect Satellite Speakers: Connect the Surround Left satellite speaker to the 'Surround Left' output and the Surround Right satellite speaker to the 'Surround Right' output on your amplifier, maintaining correct polarity.
5. Secure Connections: Ensure all speaker cables are securely fastened to prevent loose connections, which can cause poor sound quality or damage.

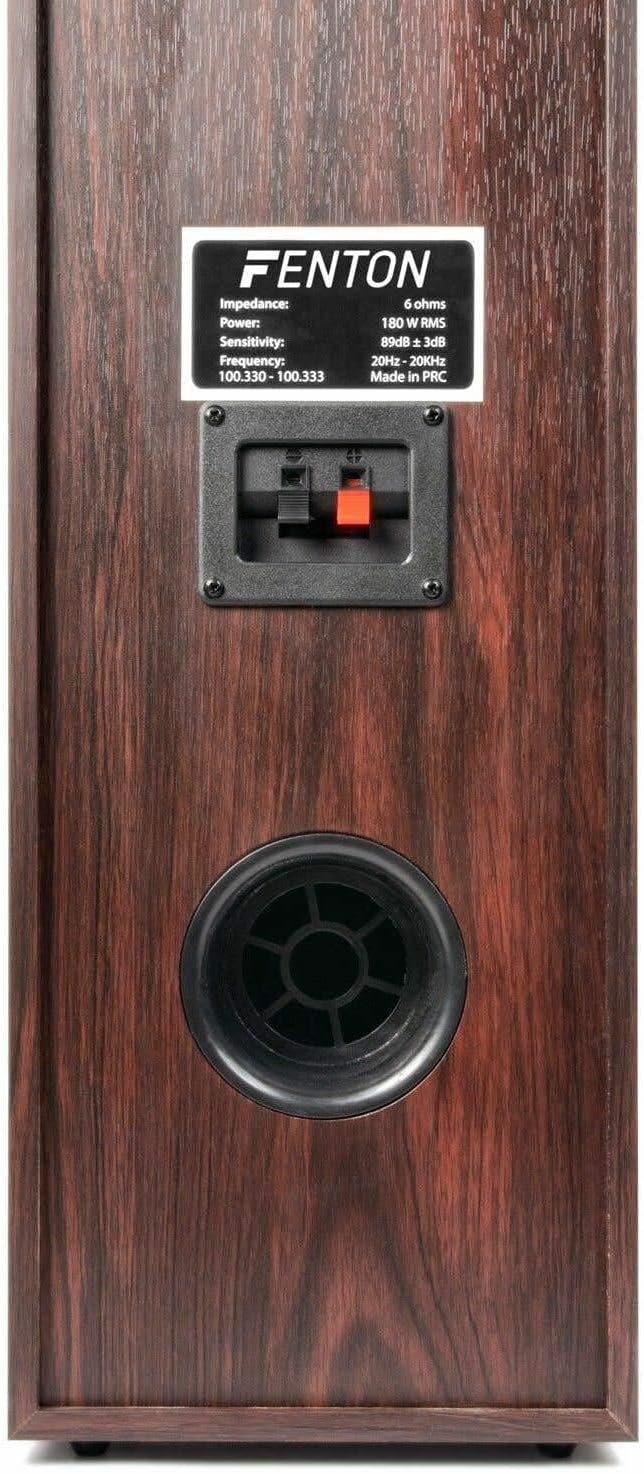

Image 3.1: Rear view of a Fenton tower speaker, illustrating the speaker terminals for connection to an amplifier.

Image 3.2: Rear view of the Fenton center speaker, showing its connection terminals.

Image 3.3: Rear view of the Fenton satellite speakers, highlighting their connection terminals and integrated wall-mounting brackets.

4. Operating Instructions

Once your Fenton HF5B 5.0 speaker system is correctly connected to a 5-channel amplifier, operating it is straightforward:

1. Power On: Turn on your amplifier/AV receiver.
2. Select Input: Use your amplifier's controls to select the desired audio input source (e.g., TV, Blu-ray player, streaming device).
3. Adjust Volume: Gradually increase the volume on your amplifier to a comfortable listening level.
4. Sound Settings: Refer to your amplifier's manual for advanced sound settings, such as channel levels, equalizer adjustments, and surround sound modes, to optimize your listening experience.

Experience high-quality audio with the Fenton HF5B 5.0 Home Cinema Speaker System, delivering 335W RMS for an authentic home theater experience.

5. Care and Maintenance

To ensure the longevity and optimal performance of your Fenton HF5B 5.0 speaker system, follow these maintenance guidelines:

• Cleaning: Gently wipe the speaker cabinets with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the finish.
• Grilles: The speaker grilles are removable for a more rugged appearance or for cleaning. If cleaning the grilles, use a soft brush or vacuum with a brush attachment to remove dust.
• Placement: Avoid placing speakers in direct sunlight, near heat sources, or in areas with high humidity. Ensure adequate ventilation around the speakers.
• Handling: Handle speakers with care. Avoid dropping them or subjecting them to strong impacts.
• Cables: Periodically check speaker cables for any signs of wear or damage. Replace damaged cables immediately.

6. Troubleshooting

If you encounter issues with your speaker system, refer to the following common problems and solutions:

7. Technical Specifications

Here are the detailed technical specifications for the Fenton HF5B 5.0 Home Cinema Speaker System:

Image 7.1: Diagram illustrating the approximate dimensions of the Fenton HF5B 5.0 Home Cinema Speaker System components.

8. Warranty and Support

8.1. Product Warranty

The Fenton HF5B 5.0 Home Cinema Speaker System comes with a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

Please retain your proof of purchase for warranty claims.

8.2. Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the Fenton customer support team. You may also find additional resources, including the full user manual and installation guide, available in PDF format:

• User Manual (PDF)
• Installation Manual (PDF)
