1. Safety Information
Please read all instructions carefully before assembly and use. Retain this manual for future reference.
- Maximum Weight Recommendation: This chair is designed to support a maximum weight of 275 pounds (125 kg). Exceeding this limit may result in damage to the chair or personal injury.
- Assembly Required: The chair requires assembly. Ensure all components are present and follow the assembly instructions precisely.
- Stable Surface: Always use the chair on a stable, level surface.
- Regular Inspection: Periodically check all bolts and screws to ensure they are tightened.
2. Product Overview
The STAPLES Corvair Luxura Mesh Back Task Chair is designed for office environments, offering comfort and adjustability. It features a breathable mesh back and a Luxura faux leather seat.
Figure 2.1: Front view of the STAPLES Corvair Luxura Mesh Back Task Chair.
Key Features:
- Breathable mesh back for enhanced airflow.
- Luxura faux leather seat for comfort.
- Integrated lumbar support.
- Adjustable seat height.
- Adjustable armrests with soft pads.
- Seat pan tilt adjustment.
- Durable 5-star base with 360° swivel casters.
Figure 2.2: Close-up of the chair's durable 5-star base and 360° swivel casters.
3. Assembly Instructions
Assembly of the STAPLES Corvair Luxura Mesh Back Task Chair typically takes approximately 20 minutes. Ensure you have adequate space and all components before beginning.
Required Tools:
- No special tools are typically required; an Allen wrench is usually included for assembly.
General Assembly Steps:
- Unpack all components and verify against the parts list (not provided in this manual, refer to packaging).
- Attach the casters to the chair base.
- Insert the gas lift cylinder into the center of the chair base.
- Attach the seat plate mechanism to the underside of the seat cushion.
- Connect the backrest to the seat assembly.
- Attach the armrests to the seat assembly.
- Place the assembled seat and backrest onto the gas lift cylinder.
- Test all functions to ensure proper operation.
For detailed, step-by-step visual instructions, please refer to the assembly guide included in the product packaging.
4. Operating Instructions
The STAPLES Corvair Luxura Mesh Back Task Chair offers several adjustments to customize your seating experience.
4.1. Seat Height Adjustment
- Locate the lever on the right side, beneath the seat.
- To raise the seat: Lift the lever while taking your weight off the seat. The seat will rise automatically.
- To lower the seat: Lift the lever while remaining seated. The seat will lower under your weight.
- Release the lever to lock the seat at the desired height.
4.2. Seat Tilt and Tilt Lock
Figure 4.1: Detail of the chair's mesh back, adjustable lumbar support, and seat pan tilt lever.
- Locate the second lever, typically on the left side, beneath the seat.
- To enable tilt: Pull the lever outwards. The chair back and seat will now recline together.
- To lock tilt: Push the lever inwards when the chair is in the upright position.
4.3. Armrest Height Adjustment

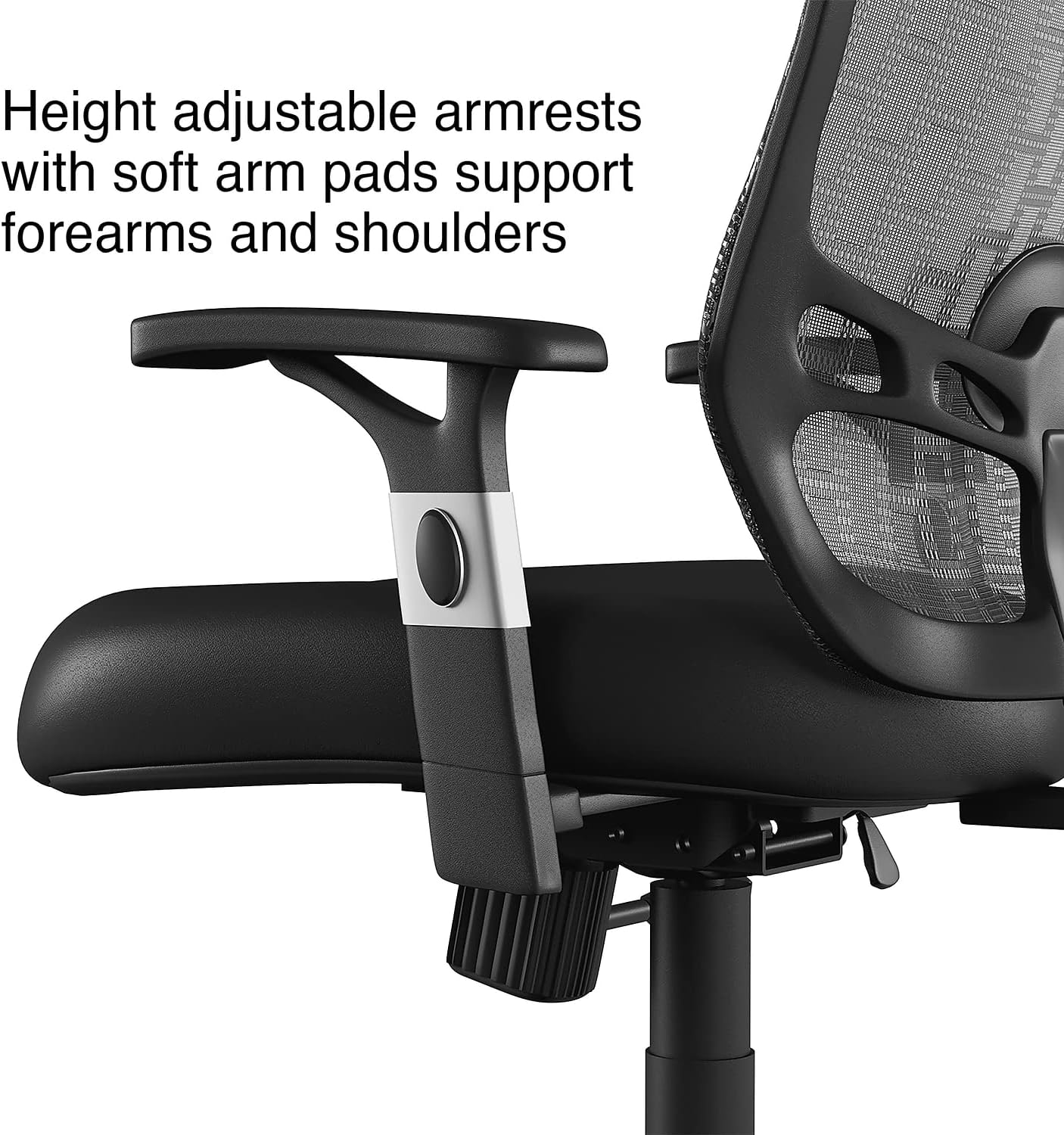

Figure 4.2: Detail of the height-adjustable armrests.
- Press the button located on the side of each armrest support.
- While holding the button, move the armrest up or down to your desired height.
- Release the button to lock the armrest in place.
4.4. Lumbar Support Adjustment
- The chair features an integrated lumbar support designed to conform to your lower back.
- While the lumbar support is not independently adjustable for height or depth, its design provides consistent support.
5. Maintenance
Proper care and maintenance will extend the life and appearance of your STAPLES Corvair Luxura Mesh Back Task Chair.
5.1. Cleaning Instructions
- Seat (Luxura Faux Leather): Spot clean with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners, as these can damage the material. Wipe dry immediately.
- Mesh Back: Gently wipe with a damp cloth. For deeper cleaning, a soft brush can be used with mild soap and water. Allow to air dry completely.
- Base and Casters: Wipe with a damp cloth. Periodically remove any hair or debris from the casters to ensure smooth rolling.
5.2. General Care
- Avoid exposing the chair to direct sunlight for prolonged periods, as this can cause fading or material degradation.
- Do not stand on the chair or use it as a ladder.
- Regularly check and tighten all screws and bolts to prevent loosening.
6. Troubleshooting
This section addresses common issues you might encounter with your chair.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift cylinder malfunction or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the issue persists, the gas lift cylinder may need replacement. Contact customer support. |
| Chair tilt mechanism does not work or lock. | Tilt lever not fully engaged or mechanism damaged. | Ensure the tilt lever is pulled out to enable tilt and pushed in to lock. If it still doesn't work, the mechanism may be faulty. |
| Casters do not roll smoothly. | Debris (hair, lint) caught in casters. | Turn the chair over and carefully remove any obstructions from the caster wheels. |
| Chair is wobbly or unstable. | Loose bolts or screws. | Inspect all assembly points and tighten any loose bolts or screws. Do not overtighten. |
| Faux leather seat material is peeling or shedding. | Normal wear and tear or material defect. | This can occur with extended use. For significant issues, contact customer support regarding potential warranty coverage. |
7. Specifications
Detailed specifications for the STAPLES Corvair Luxura Mesh Back Task Chair.
Figure 7.1: Chair dimensions (front and side view).
| Attribute | Detail |
|---|---|
| Brand | STAPLES |
| Model Name | Corvair Luxura |
| Item Model Number | 934100 |
| Color | Black |
| Product Dimensions (Overall) | 26.8"D x 25.59"W x 35.9"-39.5"H |
| Item Weight | 38 pounds (17.2 kg) |
| Maximum Weight Capacity | 275 pounds (125 kg) |
| Back Style | Mesh Back |
| Seat Material | Luxura Faux Leather (Fill Material: Foam) |
| Arm Style | Adjustable |
| Furniture Base Movement | Swivel |
| Tilting | Yes |
| Product Care Instructions | Spot Clean |
| UPC | 718103181228 |
8. Warranty and Support
For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official STAPLES website. If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact STAPLES customer support directly.
STAPLES Customer Service: Refer to your purchase documentation or the STAPLES official website for current contact information.
