1. Introduction
This manual provides essential instructions for the proper installation, maintenance, and care of your Scag 9277 Flat Free Wheel. Designed as an OEM replacement part, this wheel offers reliable performance for compatible lawn mowers. Please read this manual thoroughly before installation and retain it for future reference.

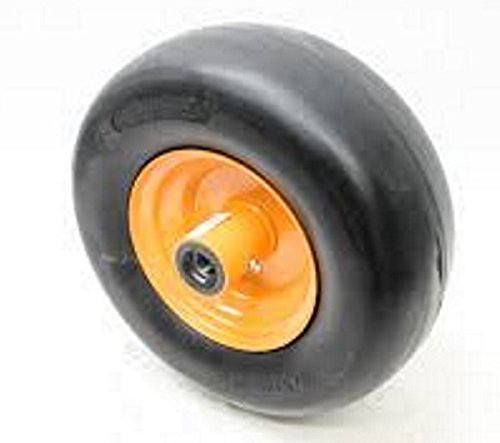

Image 1.1: Scag 9277 Flat Free Wheel. This image displays the wheel from a slight angle, highlighting its robust construction and hub assembly.
2. Safety Information
Always prioritize safety when working with machinery and replacement parts. Failure to follow safety instructions can result in injury or damage to equipment.
- Read all instructions: Before attempting installation, read and understand all instructions in this manual and your lawn mower's owner's manual.
- Wear appropriate safety gear: Always wear safety glasses, gloves, and appropriate footwear when handling parts or working on equipment.
- Disconnect power: Ensure the lawn mower's engine is off, spark plug wire is disconnected, and the machine is cool before beginning any work.
- Secure the equipment: Use appropriate jacks or stands to safely lift and support the lawn mower to prevent accidental movement.
- Use correct tools: Use only the recommended tools for installation to avoid damage to the wheel or mower components.
- Keep children and bystanders away: Ensure no one is in the immediate work area during installation or maintenance.
3. Setup & Installation
This section outlines the general procedure for replacing a lawn mower wheel with the Scag 9277 Flat Free Wheel. Specific steps may vary depending on your lawn mower model. Refer to your mower's service manual for detailed instructions.
3.1 Tools Required
- Wrench set (appropriate sizes for axle nuts)
- Socket set (appropriate sizes for axle nuts)
- Jack and jack stands (for safely lifting the mower)
- Wheel chocks (to prevent movement)
- Gloves and safety glasses
3.2 Installation Steps
- Prepare the Mower: Park the lawn mower on a flat, stable surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting. Engage the parking brake if applicable.
- Lift and Secure: Using a jack, carefully lift the side of the mower where the wheel is to be replaced. Place jack stands securely under the mower frame to support it. Ensure the mower is stable before proceeding.
- Remove Old Wheel: Locate the axle nut(s) securing the old wheel. Using the appropriate wrench or socket, loosen and remove the nut(s). Carefully slide the old wheel off the axle. Note the orientation of any washers or spacers for correct reinstallation.
- Inspect Axle: Clean the axle and inspect it for any damage or wear. Apply a thin layer of grease to the axle if recommended by your mower's manufacturer.
- Install New Wheel: Slide the Scag 9277 Flat Free Wheel onto the axle, ensuring any washers or spacers are correctly positioned. The wheel should slide on smoothly.
- Secure New Wheel: Reinstall the axle nut(s) and tighten them securely. Do not overtighten, as this can damage the wheel bearings or axle. Refer to your mower's manual for specific torque specifications if available.
- Lower Mower: Carefully remove the jack stands and lower the mower to the ground.
- Test: Gently push the mower to ensure the new wheel rotates freely and is securely attached. Reconnect the spark plug wire before operating the mower.
4. Maintenance
The Scag 9277 Flat Free Wheel is designed for low maintenance. However, regular inspection and basic care will ensure its longevity and optimal performance.
- Regular Inspection: Periodically inspect the wheel for any signs of damage, cracks, or excessive wear. Check that the axle nuts remain tight.
- Cleaning: Keep the wheel and axle area free of grass clippings, dirt, and debris. A damp cloth can be used for cleaning. Avoid harsh chemicals that may damage the plastic or rubber components.
- Storage: Store the lawn mower in a clean, dry environment when not in use to protect the wheel and other components from environmental damage.
- Lubrication: While the wheel itself is flat-free and generally maintenance-free, consult your lawn mower's manual regarding lubrication requirements for the axle or wheel bearings.
5. Troubleshooting
This section addresses common issues you might encounter with your Scag 9277 Flat Free Wheel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheel does not fit on axle. | Incorrect wheel size or axle diameter mismatch. | Verify the part number (9277) and ensure it is compatible with your specific lawn mower model. Contact your dealer if unsure. |
| Wheel wobbles after installation. | Axle nut(s) not tightened correctly; missing or incorrectly placed washers/spacers. | Recheck axle nut tightness. Ensure all washers and spacers are installed in the correct order and orientation as per your mower's manual. |
| Wheel makes unusual noise. | Debris caught in the wheel assembly; worn axle bearings (if applicable to your mower). | Clean the wheel and axle area thoroughly. If noise persists, inspect the mower's axle bearings for wear and replace if necessary (refer to mower manual). |
6. Specifications
Key specifications for the Scag 9277 Flat Free Wheel:
- Model Number: 9277
- Brand: Scag
- Wheel Size: 17 Inches
- Material: Plastic, Rubber
- Exterior Finish: Unfinished
- Color: White, Black, or Gray (may vary)
- Vehicle Service Type: Lawn Mower
- Load Index: 50
- Unit Count: 1 Count
7. Warranty & Support
For warranty information regarding your Scag 9277 Flat Free Wheel, please refer to the documentation provided with your original purchase or contact an authorized Scag dealer. As an OEM part, warranty terms are typically provided by the manufacturer, Scag.
For technical support, parts inquiries, or further assistance, please contact your authorized Scag dealer or visit the official Scag website. Ensure you have your product model number (9277) and purchase details available when seeking support.
