Schellenberg 20616 Tubular Motor for Roller Shutters - 15Nm Maxi Instruction Manual

1. Product Overview

The Schellenberg 20616 Tubular Motor is engineered for roller shutters, specifically designed for systems utilizing a ⌀ 60 mm octagonal shaft. This 15Nm Maxi model offers robust performance with a powerful, maintenance-free motor and an extra-wide driver. It features mechanical end position adjustment for precise control and supports a maximum plastic roller shutter surface of 6.2 m² and a weight of up to 25 kg. The motor is also compatible with radio control and smart home integration through optional retrofitting.

Figure 1: The Schellenberg 20616 Tubular Motor for Roller Shutters, 15Nm Maxi. This image shows the yellow tubular motor with its black end cap and attached electrical cable.

2. Safety Information

Always ensure that installation and electrical connections are performed by a qualified professional in accordance with local regulations and standards. Disconnect power before performing any installation, maintenance, or troubleshooting. Keep hands and loose clothing clear of moving parts during operation. This product is designed for its specified purpose; any unauthorized modifications or improper use may result in damage or injury.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

• Schellenberg Maxi Standard 15Nm Roller Shutter Motor (Model 20616)
• Wall bearing
• Adapter for ⌀ 60 mm octagonal shaft
• Adjustment tool
• Installation hardware (pins, clips)

Figure 2: All components included in the Schellenberg 20616 Tubular Motor package. This image displays the yellow tubular motor, wall brackets, adapters, and the adjustment tool.

4. Setup and Installation

This motor is designed for Maxi roller shutter systems with ⌀ 60 mm octagonal shafts. Ensure the shaft is compatible before proceeding.

4.1 Motor Dimensions

Before installation, confirm the motor dimensions fit your roller shutter housing.

Figure 3: An illustration of the Schellenberg tubular motor's dimensions. The motor has a total length of 485 mm and a diameter of 45 mm.

4.2 Electrical Connection

The motor requires a 230 V / 50 Hz power supply. Connect the electrical cable according to the wiring diagram provided in the full manual (not included here). Ensure all connections are secure and insulated.

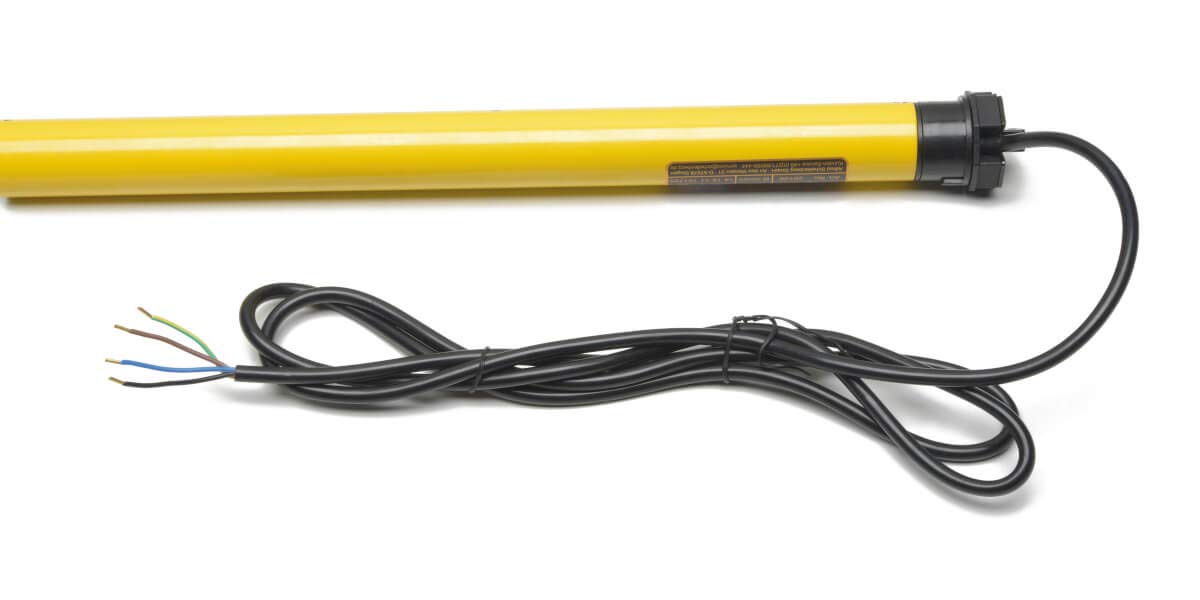

Figure 4: The full length of the yellow tubular motor showing the attached electrical cable with exposed wires ready for connection.

4.3 Mounting the Motor

Insert the motor into the octagonal shaft. Secure it using the provided wall bearing and adapter. Ensure the motor is firmly seated within the shaft and the housing.

Figure 5: A close-up view of the tubular motor installed inside a roller shutter shaft, demonstrating its operational context.

5. Operating Instructions

5.1 Setting End Positions

The motor features mechanical end position adjustment. Use the provided adjustment tool to set the upper and lower limits for your roller shutter. Refer to the detailed instructions in the complete manual for precise adjustment steps.

Figure 6: A hand using an adjustment tool to set the mechanical limit switches on the motor's end cap, installed within a roller shutter housing.

5.2 Control Options

The motor can be controlled via a standard timer or roller shutter switch. For enhanced convenience, Schellenberg wireless control is possible with the addition of a compatible radio receiver module (sold separately). This allows for integration into smart home systems.

6. Maintenance

The Schellenberg 20616 motor is designed to be maintenance-free and low-wear. Regular checks should include:

• Inspecting the roller shutter for smooth operation and any obstructions.
• Checking electrical connections for signs of wear or damage.
• Ensuring the end positions are correctly set and the shutter stops at the desired limits.

No lubrication or internal servicing of the motor is required.

7. Troubleshooting

If you encounter issues with your Schellenberg tubular motor, consider the following:

• Motor Not Responding: Check the power supply and electrical connections. Ensure the control switch or timer is functioning correctly.
• Incorrect End Positions: If the roller shutter does not stop at the desired upper or lower limit, the mechanical end positions may need recalibration. Use the adjustment tool to reset them according to the installation instructions.
• Difficulty in Installation: Some users have reported that the adapters can be tight when inserting into the octagonal shaft. Ensure proper alignment and apply gentle, even pressure. Do not force components, as this may cause damage.
• Overheating Protection: The motor includes thermal/overheating protection. If the motor stops unexpectedly during operation, it may be due to overheating. Allow it to cool down before attempting further operation.

For persistent issues, consult a qualified electrician or contact Schellenberg customer support.

8. Specifications

9. Warranty and Support

The Schellenberg 20616 Tubular Motor comes with a 3-year warranty. For warranty claims, technical assistance, or further inquiries, please contact Schellenberg customer support or your authorized dealer. Keep your proof of purchase for warranty validation.
