Feit Electric 48ft Outdoor String Lights (Model 72048) Instruction Manual

1. Safety Information

Read all instructions carefully before installation and use. Failure to follow these instructions may result in fire, electric shock, or injury.

• Disconnect Power: Always ensure the string light is unplugged from the power source before installing, replacing bulbs, or performing any maintenance.
• Outdoor Use: This product is designed for outdoor use. Ensure all connections are secure and protected from moisture.
• Electrical Rating: Do not exceed the maximum wattage or connect more than 5 strings together as specified by the manufacturer.
• Secure Installation: Mount the string lights securely to prevent damage from wind or other environmental factors. Do not hang lights by their electrical cord.
• Bulb Handling: Handle bulbs carefully. Allow bulbs to cool completely before attempting to replace them.
• Inspect Regularly: Periodically inspect the string lights for any damage to the cord, sockets, or bulbs. Discontinue use if damage is found.

2. Package Contents

Verify that all components are present before beginning installation:

• 1 x 48ft (14.6m) String Light Cord with 36 Sockets
• 36 x Light Bulbs (installed)
• 12 x Extra Replacement Light Bulbs

Image: Retail packaging for the Feit Electric 48ft String Lights, showing the product name, length, and key features.

3. Setup and Installation

Follow these steps for proper installation of your string lights:

1. Plan Your Layout: Determine the desired path for your string lights. Ensure the power outlet is within reach of the plug.
2. Secure the Cord: Use appropriate mounting hardware (not included) to securely hang the string light cord. Avoid hanging the lights by the individual bulb sockets or the electrical wire itself. Use hooks, zip ties, or guide wires for support.
3. Check Sockets (Crucial Step): Before plugging in the string light or installing bulbs, ensure the string light is NOT plugged into any power source. Carefully inspect each bulb socket. The center brass tab inside each socket must be slightly raised to make proper contact with the bulb. Refer to the diagram below for correct and incorrect tab positions. If a tab is flat, gently lift it with a small, non-conductive tool.


Image: A diagram illustrating the correct (center tab raised) and incorrect (center tab flat) positions for the brass contact tab inside a light bulb socket. This ensures proper electrical connection.

4. Install Bulbs: Once all sockets are checked and corrected if necessary, screw the bulbs firmly into each socket. Do not overtighten.
5. Connect Multiple Strings (Optional): This string light set is designed to connect up to 5 strings end-to-end. To connect, ensure both strings are unplugged. Remove the end cap from the first string and the plug from the second string. Connect the male plug of the second string into the female receptacle of the first string. Secure the connection.
6. Power On: Once all bulbs are installed and connections are secure, plug the string light into a grounded outdoor-rated electrical outlet.

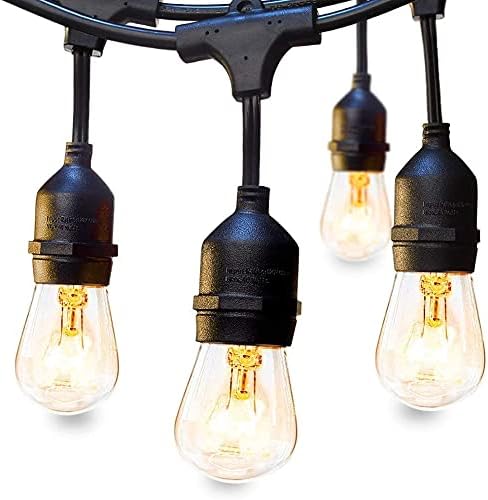

Image: A close-up view of several illuminated bulbs on the Feit Electric 48ft Outdoor String Lights, showcasing the clear bulb design and black cord.

4. Operating Instructions

Operating your Feit Electric string lights is straightforward:

• Power On/Off: Plug the string lights into a suitable outdoor-rated electrical outlet to turn them on. Unplug them to turn them off.
• Dimmer Compatibility: These lights may be compatible with certain outdoor-rated dimmers (sold separately) to adjust brightness. Consult the dimmer's instructions for compatibility and installation.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your string lights:

• Bulb Replacement:
  1. Ensure the string light is unplugged and bulbs are cool to the touch.
  2. Carefully unscrew the old bulb from its socket.
  3. Screw in a new replacement bulb (S14 type, 11W or equivalent LED, as provided or recommended by Feit Electric). Do not overtighten.
  4. Plug in the string light to test.


  Image: A single S14 type light bulb, typical for string light replacements, showing its clear glass and screw base.

• Cleaning: With the string lights unplugged, gently wipe down the bulbs and cord with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Storage: If storing the lights for an extended period, unplug them, clean them, and coil them neatly. Store in a cool, dry place away from direct sunlight.

6. Troubleshooting

If your string lights are not functioning correctly, consider the following:

7. Specifications

• Model Number: 72048
• Product Dimensions: 15.5 x 7 x 15.5 inches (packaging)
• Item Weight: 7.5 pounds
• Cord Length: 48 feet (14.6 meters)
• Number of Sockets: 36
• Bulb Type: S14 (11W incandescent or equivalent LED)
• Cord Type: Heavy Duty 14/3 SJTW Cord
• Maximum Connectable Strings: Up to 5 strings
• Manufacturer: Feit Electric
• ASIN: B00NE65B6A

8. Warranty and Support

For warranty information or technical support, please contact Feit Electric directly. Refer to the product packaging or the official Feit Electric website for the most current contact details and warranty terms.

Manufacturer: Feit Electric
