Baseline 12-1002HR-25 Hires 360 Degree Clear Plastic Goniometer Instruction Manual

1. Introduction

This transparent plastic goniometer is designed for observing a joint's axis of motion and its range of motion. It features a unique design with a white line behind measurement gradations for enhanced readability. The primary purpose of this device is to assist in physical therapy by determining the range of motion of a joint, as well as evaluating and gauging recovery after surgery or physical therapy.

The Baseline 12-1002HR-25 goniometer is an essential tool for treatment, rehabilitation, surgical recovery, and evaluation. It is suitable for both home use and multi-user professional environments. This product is supplied as a pack of 25 units.

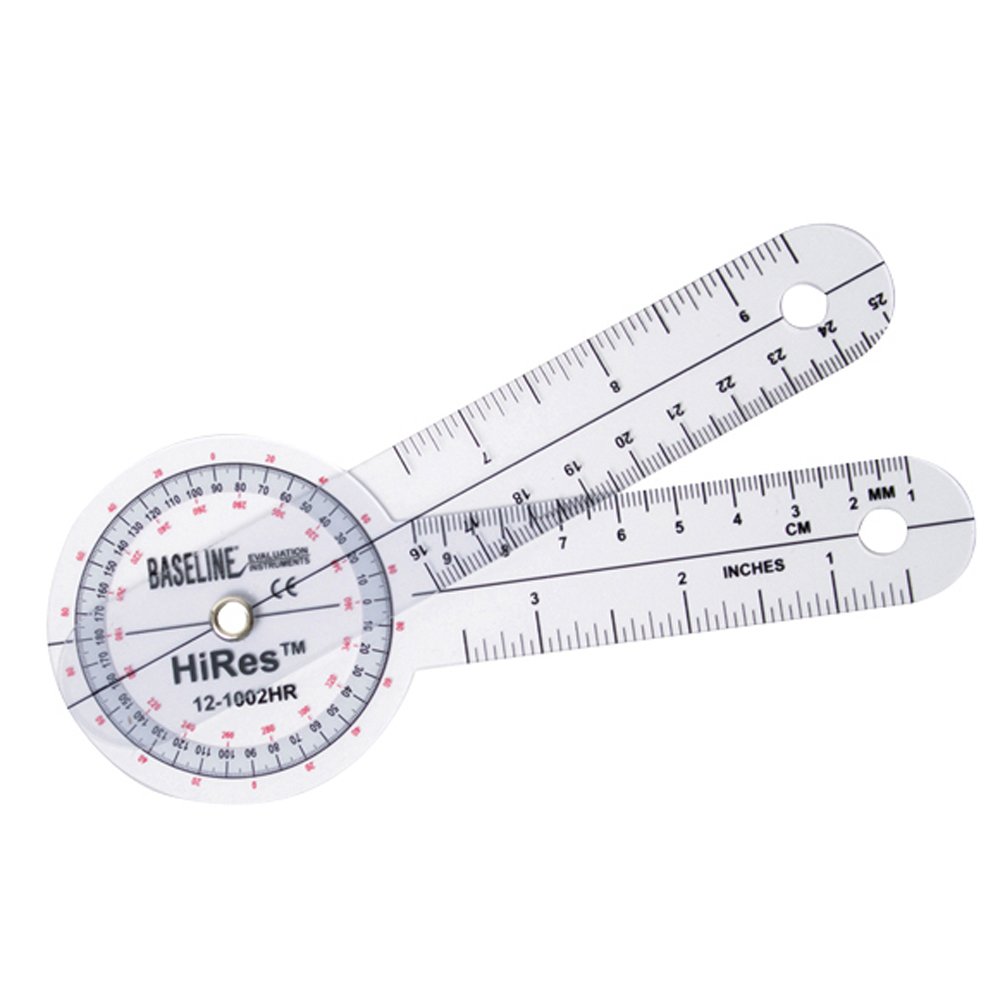

An image showing the clear plastic goniometer with its 360-degree head and 6-inch arms, highlighting the measurement scales.

2. Product Features and Components

The Baseline 12-1002HR-25 goniometer incorporates several features for accurate and easy measurement:

• 360-Degree Head: Equipped with three scales calibrated for the ISOM (International Standards of Measurement, STFR) system.
• Clear Plastic Construction: Allows for direct and exact placement on a joint or limb, facilitating easy observation of the joint's axis.
• 6-Inch Arms: Feature a linear scale in both inches and centimeters.
• Measurement Retention: The arms are designed to remain at the last measured position until manually reset, aiding in accurate recording.
• 1-Degree Increments: The 360-degree angle scale provides precise readings in 1-degree increments.
• Enhanced Readability: A white line behind the measurement gradations improves visibility and ease of reading.

3. Setup

The Baseline 12-1002HR-25 goniometer requires no assembly. It is ready for immediate use upon removal from its packaging.

• Inspection: Before first use, inspect each goniometer for any signs of damage or manufacturing defects.
• Cleaning: Ensure the goniometer is clean and free of dust or debris. Refer to the Maintenance section for cleaning instructions.

4. Operating Instructions

The Baseline 12-1002HR-25 goniometer is used to measure joint limits and range-of-motion, including extension, flexion, abduction, adduction, and rotation. Follow these steps for accurate measurements:

1. Patient Positioning: Position the patient comfortably and ensure the limb to be measured is exposed and stable.
2. Goniometer Placement: Place the clear plastic goniometer directly and exactly on the joint or limb. Ensure the center of the goniometer's head aligns with the joint's axis of motion.
3. Arm Alignment (Stationary): Align the stationary arm of the goniometer with the proximal (closer to the body) segment of the limb.
4. Arm Alignment (Movable): Move the distal (further from the body) segment of the limb through its range of motion. Align the movable arm of the goniometer with this distal segment.
5. Reading Measurement: Once the desired angle is achieved, observe the reading on the 360-degree scale. The white line behind the gradations enhances visibility. The arms will hold their position, allowing for precise recording of the angle.
6. Recording: Document the measured angle according to your assessment protocol.
7. Resetting: Gently move the arms to reset the goniometer for the next measurement or for storage.

For consistent results, always ensure proper anatomical landmark identification and consistent goniometer placement.

5. Maintenance

Proper care and maintenance will ensure the longevity and accuracy of your Baseline goniometer.

• Cleaning: Clean the goniometer with a soft cloth and a mild disinfectant solution after each use, especially in multi-user environments. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the plastic and affect readability.
• Drying: Ensure the goniometer is completely dry before storage.
• Storage: Store the goniometer in a clean, dry place away from direct sunlight, extreme temperatures, and excessive humidity. Prolonged exposure to these conditions can cause warping or degradation of the plastic.
• Inspection: Regularly inspect the goniometer for any signs of physical damage, such as cracks, chips, or excessive wear on the scales, which could compromise measurement accuracy.

6. Troubleshooting

While the Baseline goniometer is a simple and robust instrument, here are some common issues and their solutions:

• Inaccurate Readings:
  • Ensure the goniometer is properly aligned with the joint's axis of motion.
  • Verify that the goniometer is placed flat against the limb without any gaps or uneven pressure.
  • Check for any physical damage to the goniometer (e.g., cracks, worn scales) that might impair its function.
• Arms Not Holding Position:
  • The arms are designed to remain at the last measurement position. If they are not holding, check for any debris obstructing the pivot point.
  • Excessive wear over time might reduce the friction required to hold the arms. If this issue persists and affects accuracy, consider replacing the unit.

7. Specifications

8. Warranty and Support

Specific warranty information for the Baseline 12-1002HR-25 Goniometer is typically provided with the product packaging or available on the manufacturer's official website.

For product support, warranty claims, or any inquiries regarding the use and care of your goniometer, please contact Baseline customer service directly. Refer to the manufacturer's official website or the product packaging for the most current contact information.

9. Important Information

Legal Disclaimer: This product is a measurement instrument intended for assessing joint range of motion. It is not a medical device for diagnosis, treatment, cure, or prevention of any disease or health condition. Statements regarding dietary supplements, if found on associated product pages, are not applicable to this goniometer and have not been evaluated by the FDA.
