1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Nuvo Lighting 60/5546 Three Light Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Nuvo Lighting 60/5546 is a transitional three-light chandelier featuring a Bronze/Dark finish and glass shades. It is designed for indoor use and operates on 120 Volts, accommodating three E26 Medium base bulbs up to 60 watts each.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing.
- All electrical connections must be in accordance with local codes and ordinances, and the National Electric Code (NEC).
- If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- This fixture is intended for indoor use only.
- Do not exceed the maximum wattage specified for the bulbs.
- Ensure the mounting surface can support the weight of the fixture.
- The fixture is UL listed for dry locations.
Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Package Contents
Verify that all parts are present before beginning installation. If any part is missing or damaged, do not attempt to assemble or install the fixture.
- Chandelier Frame Assembly
- Glass Shades (3)
- Mounting Hardware Kit (crossbar, mounting screws, wire nuts, ground screw)
- Chain and Canopy
- Instruction Manual
4. Setup and Installation
Tools Required: Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, safety glasses, ladder.
- Turn Off Power: Before starting, ensure the power to the junction box is turned off at the circuit breaker or fuse box.
- Prepare Mounting:
Attach the mounting crossbar to the junction box using the provided mounting screws. Ensure the crossbar is securely fastened.
- Adjust Chain Length:
Determine the desired hanging height for your chandelier. Open a link on the chain to adjust its length as needed. Close the link securely.
- Wire Connections:
Carefully connect the electrical wires:
- Connect the bare copper or green ground wire from the fixture to the ground wire from the junction box (usually bare copper or green) using a wire nut. Secure the ground wire to the crossbar with the ground screw.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box using a wire nut.
- Connect the black wire from the fixture to the black (hot) wire from the junction box using a wire nut.
Ensure all wire connections are tight and secure. Wrap electrical tape around wire nuts for added security.
- Mount Canopy:
Tuck all wires neatly into the junction box. Raise the canopy to the ceiling, sliding it over the mounting screws on the crossbar. Secure the canopy with the decorative nuts or collar ring.
- Install Glass Shades and Bulbs:
Carefully attach the three glass shades to the fixture. Insert three E26 Medium base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
- Restore Power:
Once installation is complete, restore power at the circuit breaker and test the fixture.

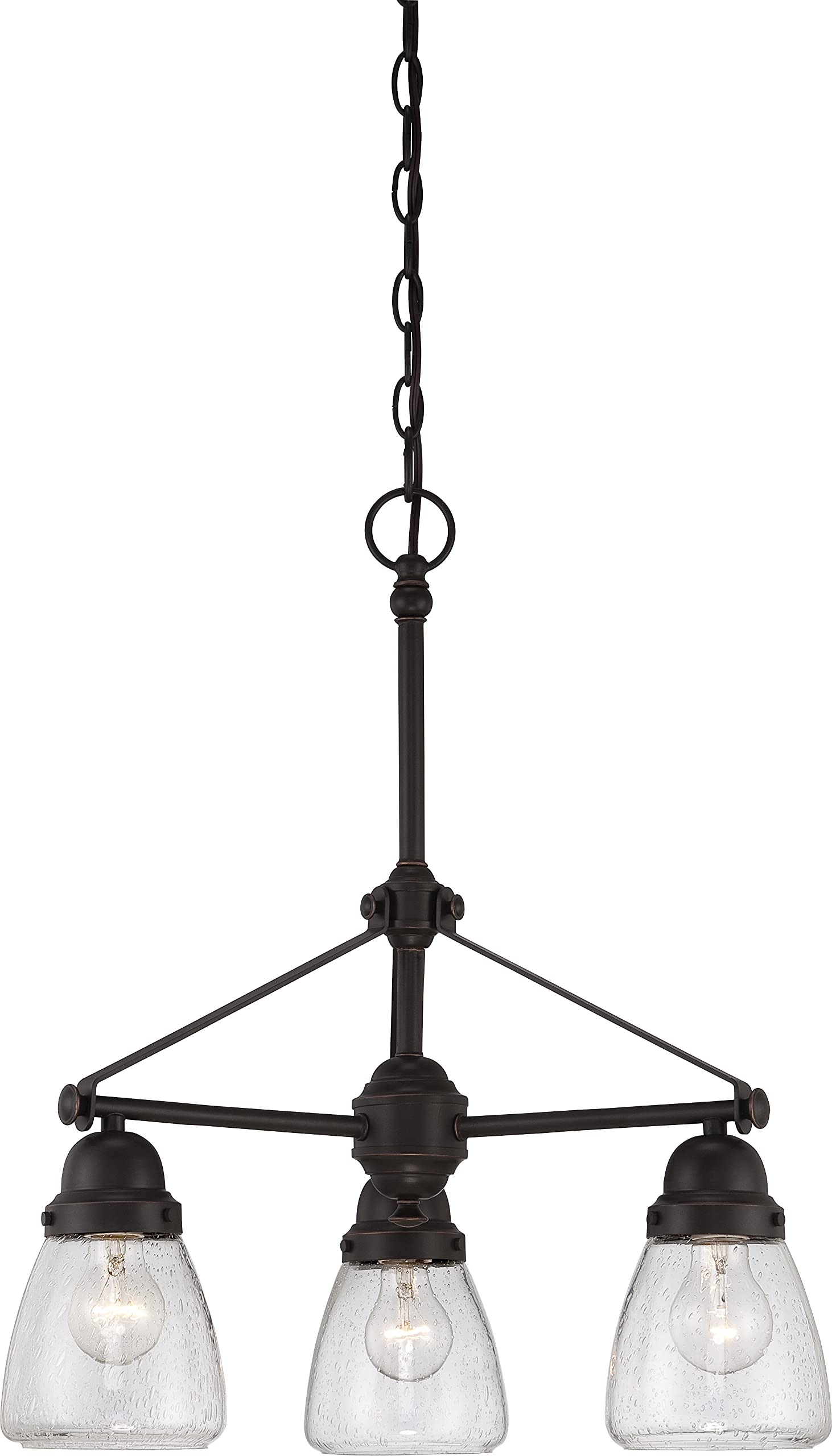

Image 1: Nuvo Lighting 60/5546 Three Light Chandelier. This image displays the fully assembled chandelier with its three glass shades and bronze/dark finish.
Image 2: Dimensions of the Nuvo Lighting 60/5546 Chandelier. The image shows the chandelier with its height of 23 inches and width of 21.5 inches clearly marked.
5. Operating Instructions
The Nuvo Lighting 60/5546 Chandelier operates like any standard lighting fixture. Once properly installed and wired, it can be controlled by a wall switch connected to the circuit.
- Turning On/Off: Use the wall switch connected to the fixture to turn the lights on or off.
- Dimming: This fixture is compatible with dimmer switches. If you wish to use a dimmer, ensure it is rated for incandescent or LED bulbs (depending on the bulbs you install) and installed by a qualified electrician.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your chandelier.
- Cleaning:
Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish or glass. For glass shades, a mild glass cleaner can be used on a cloth, then wipe dry.
- Bulb Replacement:
Ensure power is off and bulbs have cooled before replacing. Unscrew old bulbs and screw in new E26 Medium base bulbs, not exceeding 60 watts each.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Fixture hums or flickers. |
|
|
If you experience issues not listed here, or if troubleshooting steps do not resolve the problem, contact customer support.
8. Specifications
| Model Number: | 60/5546 |
| Brand: | Nuvo |
| Color: | Bronze/Dark |
| Material: | Glass, Metal |
| Style: | Transitional / Modern |
| Product Dimensions: | 21.5"L x 21.5"W x 23.06"H |
| Indoor/Outdoor Usage: | Indoor |
| Power Source: | Corded Electric |
| Fixture Type: | Chandelier |
| Number of Light Sources: | 3 |
| Voltage: | 120 Volts |
| Wattage: | 60 watts (per bulb, max) |
| Bulb Base: | E26 Medium |
| Shade Material: | Glass |
| Item Weight: | 6.16 pounds |
| Safety Listing: | UL Listed (Dry Location) |
9. Warranty and Support
Warranty: This Nuvo Lighting product comes with a 1-year limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
Customer Support: For technical assistance, missing parts, or warranty inquiries, please contact Nuvo customer support. Visit the official Nuvo website for contact information or refer to your purchase documentation.
