Product Overview
The Hampton Bay Universal Ceiling Fan Handheld Remote Control (Model HB_343-668) offers a convenient solution for managing your ceiling fan's speed and light. Designed for universal compatibility with various brands, this control features 3-speed fan operation, light dimming capabilities, and a safe exit function. It is suitable for use with LED, incandescent, and CFL bulbs, and can be installed with indoor or damp-rated/outdoor fans.
Setup and Installation
This universal ceiling fan control is designed for easy installation. The remote and receiver are pre-paired at the factory for quick setup.
- Receiver Installation: Simply wire the receiver unit inside the ceiling fan's canopy. Ensure all power is off at the circuit breaker before beginning installation.
- Remote Pairing: The remote control is pre-paired with the receiver from the factory. No manual pairing steps are typically required for initial use.
- Wall Mount: An optional wall mount plate is included, allowing you to install the remote control in a convenient location when not in handheld use.

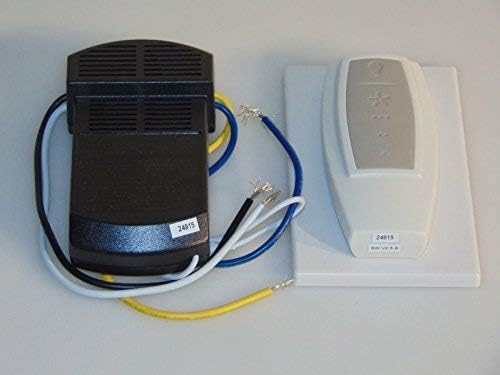

Image: The receiver unit with wiring and the remote control, showing the components included in the package.
Operating Instructions
The remote control provides full functionality for your ceiling fan and light.
- Fan Speed Control: The remote features a 3-speed fan control. Press the fan speed buttons to cycle through low, medium, and high settings. Note: This control is not compatible with fans that have 4 speed options.
- Light Control and Dimming: Press the light button to turn the light on or off. To dim the light, press and hold the light button. The light will cycle through its dimming levels. Release the button when the desired brightness is reached. This dimmable option is for use with dimmable bulbs only.
- Safe Exit Feature: The remote includes a safe exit feature that will turn the fan and light off after 30 seconds, allowing you to leave the room safely.
- Fan Direction: The remote does not reverse the fan direction. This function must be controlled directly on the fan motor housing, if available.

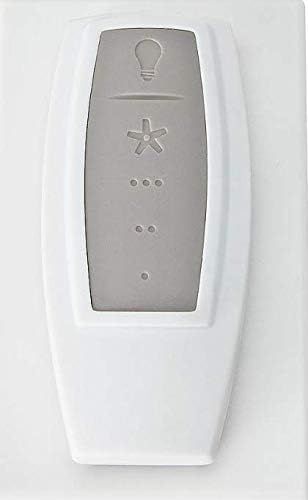

Image: A close-up view of the remote control, highlighting the light and fan speed buttons.
Maintenance
To ensure optimal performance and longevity of your Hampton Bay Universal Ceiling Fan Control, follow these general maintenance guidelines:
- Cleaning: Wipe the remote control and receiver with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Battery Replacement: The remote control requires 1 AAA battery. Replace the battery when the remote's performance diminishes. Ensure correct polarity when inserting new batteries.
- Environmental Conditions: The unit is damp-rated, making it suitable for indoor or damp-rated/outdoor fans. Avoid direct exposure to water or extreme temperatures.
Troubleshooting
If you experience issues with your Hampton Bay Universal Ceiling Fan Control, consider the following common troubleshooting steps:
- Remote Not Responding:
- Check the battery in the remote control. Replace if necessary.
- Ensure the remote is within range of the receiver.
- Verify that the main power switch for the fan is turned on.
- Light Not Dimming:
- Confirm that the bulbs installed are dimmable. Non-dimmable bulbs will not respond to the dimming function.
- Ensure the light button is pressed and held for dimming, not just pressed momentarily.
- Fan Not Changing Speed:
- Ensure the fan is a 3-speed model. This control is not compatible with 4-speed fans.
- Check for any obstructions preventing the fan blades from rotating freely.
- Interference: The control is designed for no interference. If you experience unusual behavior, ensure no other devices are operating on similar frequencies nearby.
Specifications
| Brand | Hampton Bay |
| Model Name | HB_343-668 |
| Control Method | Remote |
| Number of Power Levels | 3 (Fan Speed) |
| Light Dimming | Yes (for dimmable bulbs) |
| Bulb Compatibility | LED, Incandescent, CFL |
| Indoor/Outdoor Usage | Indoor, Damp Rated/Outdoor |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Item Weight | 0.01 Ounces |
| Product Dimensions | 10 x 12 x 14 inches (packaging) |
| Remote Battery | 1 AAA battery required (not included) |
| UPC | 049694991102 |
Warranty Information
The product specifications indicate "Warranty Description: Na." Please refer to your purchase receipt or contact the retailer for specific warranty details, if any are provided at the point of sale.
Customer Support
For further assistance or inquiries regarding your Hampton Bay Universal Ceiling Fan Control, please contact the retailer where the product was purchased. Keep your purchase receipt and model number (HB_343-668) readily available for support.
