EISL Verona NI183VECR Kitchen Faucet Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your EISL Verona NI183VECR kitchen faucet. Please read this manual carefully before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Safety Information

• Always turn off the main water supply before beginning any installation, maintenance, or repair work.
• If you are unsure about any step, consult a qualified plumber.
• Avoid using abrasive cleaners, harsh chemicals, or scouring pads on the chrome finish, as this can damage the surface.
• Ensure all connections are secure to prevent leaks. Do not overtighten.

3. Package Contents

Verify that all components are present and undamaged before starting installation.

• EISL Verona NI183VECR Kitchen Faucet with integrated pull-out spray
• Mounting kit (gaskets, metal washer, mounting nut, threaded rods)
• Connection hoses (3 flexible hoses)
• Counterweight for pull-out hose
• Assembly instructions (this manual)

Figure 3.1: All components included with the EISL Verona NI183VECR kitchen faucet. This image displays the main faucet body with pull-out spray, three flexible connection hoses, mounting hardware, a counterweight for the spray hose, and the instruction sheet.

4. Product Features

• 90° Pivotable Spout: The faucet spout can pivot 90 degrees, making it suitable for double sinks and enhancing usability.
• Pull-Out Spray: The integrated pull-out spray simplifies tasks such as rinsing large items or washing vegetables.
• Two Jet Types: Easily switch between two different spray patterns (stream and spray) for versatile use by pressing a button on the spray head.
• Durable Ceramic Cartridge: Equipped with a high-quality, silent ceramic cartridge for long-lasting, drip-free performance. The cartridge is easily replaceable if needed.
• High-Quality Material: Constructed from brass with a glossy chrome finish for durability and aesthetic appeal.
• Single-Lever Operation: Simple control of water temperature and flow with a single handle.

5. Setup and Installation

5.1 Before You Begin

• Ensure the main water supply to your kitchen is turned off.
• Clear the area under the sink for easy access during installation.
• Gather necessary tools, such as an adjustable wrench, screwdriver, and sealant tape (if required for your connections).

5.2 Installation Steps

1. Insert the faucet into the mounting hole on your sink or countertop. Ensure the base gasket is correctly positioned between the faucet base and the sink surface.
2. From underneath the sink, slide the rubber gasket, metal washer, and mounting nut onto the threaded rod of the faucet. Tighten the mounting nut securely to hold the faucet in place.


Figure 5.1: Installation view of the faucet from below the sink. This image shows the faucet body installed through the sink hole, with the mounting hardware (gasket, washer, nut) secured from underneath. The flexible connection hoses and the pull-out spray hose with its counterweight are visible.

3. Connect the hot and cold water supply lines to the corresponding flexible hoses of the faucet. Ensure a tight, leak-free connection. Use sealant tape on threaded connections if necessary.
4. Connect the pull-out spray hose to the main water line connection on the faucet. Attach the counterweight to the pull-out hose at an appropriate height (typically below the sink deck) to ensure smooth retraction of the spray head.
5. Once all connections are made, slowly turn on the main water supply and check for any leaks. Test the faucet's operation by running both hot and cold water and checking the spray functions.

6. Operating Instructions

6.1 Water Flow and Temperature Control

The EISL Verona NI183VECR faucet features a single lever for easy control of water flow and temperature.

• To turn on the water, lift the single lever handle. The further you lift, the greater the water flow.
• Move the lever to the left for hot water and to the right for cold water. Adjust the position to achieve your desired water temperature.

Figure 6.1: Close-up of the single lever handle, showing the hot (red dot) and cold (blue dot) indicators for temperature control.

6.2 Using the Pull-Out Spray

The integrated pull-out spray offers enhanced flexibility for various kitchen tasks.

• Grasp the spray head and pull it out from the faucet body. The hose extends to provide additional reach.
• To switch between the two available jet types (a steady stream and a wider spray), press the button located on the top of the spray head.
• After use, gently guide the spray head back into its docking position. The counterweight will assist in smooth retraction.

Figure 6.2: The main product image showing the faucet with its pull-out spray head. An orange circle highlights the two jet types, indicating the button on the spray head to switch between them.

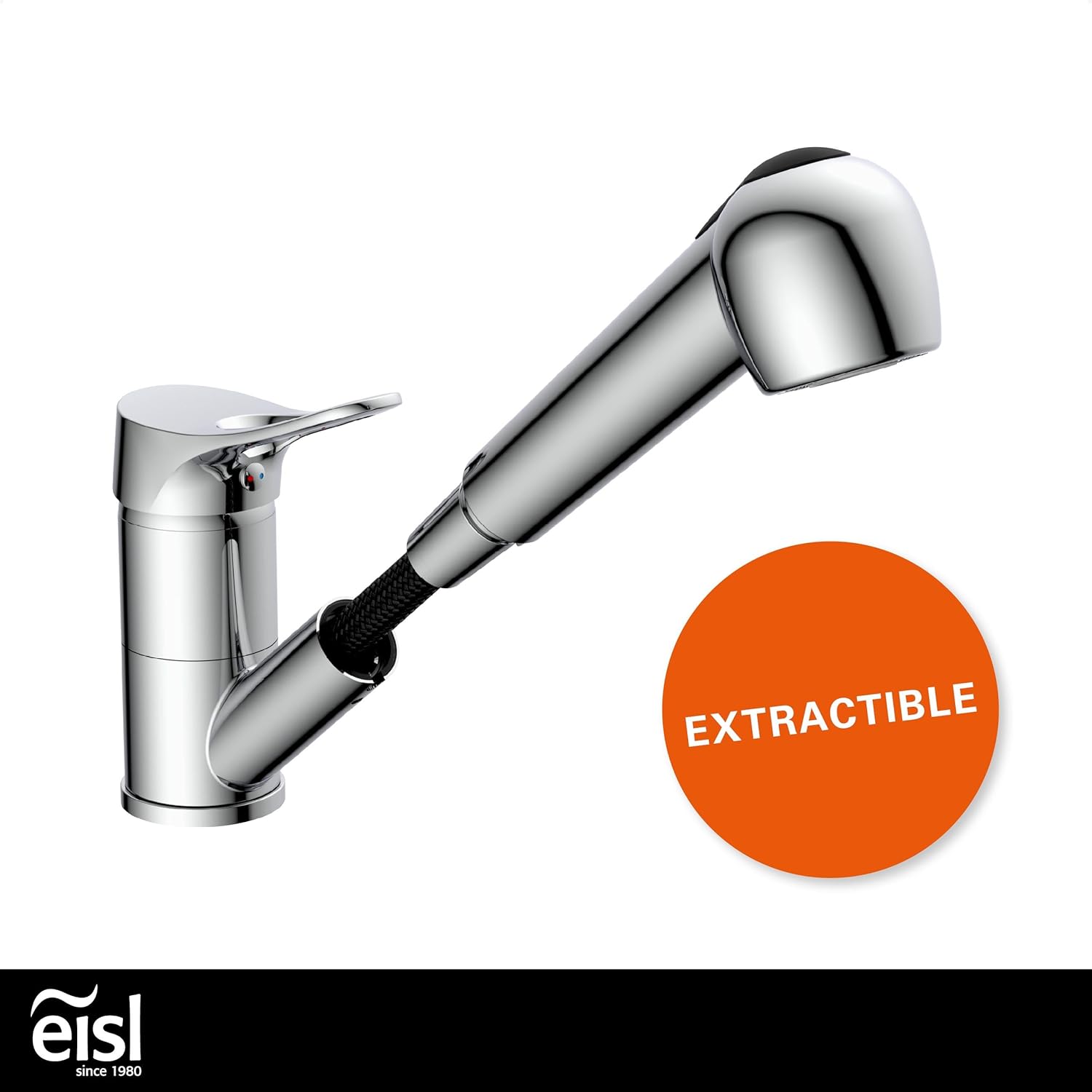

Figure 6.3: The faucet with its pull-out spray extended from the main body, demonstrating its reach and flexibility. An orange circle with "EXTRACTIBLE" (Pull-Out) emphasizes this feature.

6.3 Spout Rotation

The faucet spout can be rotated up to 90 degrees, allowing for greater flexibility when using multiple sink basins or filling large pots.

Figure 6.4: The faucet installed on a sink, illustrating its 90-degree pivot capability. An orange circle with "BEC PIVOTANT À 90°" (90° Pivoting Spout) highlights this feature.

7. Maintenance

7.1 Cleaning the Faucet

Regular cleaning will help maintain the faucet's appearance and functionality.

• Clean the chrome finish regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures.
• Avoid using abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the surface.
• Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots and maintain shine.

7.2 Cartridge Replacement

If the faucet experiences persistent drips, reduced flow, or issues with temperature control, the ceramic cartridge may need replacement. The cartridge is designed for easy replacement.

• Turn off the main water supply before attempting cartridge replacement.
• Consult a qualified plumber or the manufacturer's support for detailed instructions on cartridge replacement specific to this model.

8. Troubleshooting

This section addresses common issues you might encounter with your faucet.

• Low Water Pressure:
  • Check if the main water supply valve is fully open.
  • Inspect the aerator (at the tip of the spray head) for mineral buildup or debris. Clean or replace if necessary.
  • Ensure connection hoses are not kinked or obstructed.
• Leaks from Faucet Base:
  • Check the tightness of the mounting nut under the sink. Do not overtighten.
  • Ensure all gaskets are properly seated during installation.
• Leaks from Connections:
  • Tighten all water supply connections.
  • Check for damaged O-rings or washers in the connections and replace if needed.
• Difficulty Switching Jet Types:
  • Ensure the button on the spray head is not obstructed by mineral buildup. Clean the spray head if necessary.

9. Specifications

Figure 9.1: Technical diagram illustrating the key dimensions of the EISL Verona NI183VECR kitchen faucet, including overall length, height, and spout height.

10. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact EISL customer service directly. Keep your proof of purchase for warranty claims.
