1. Introduction
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Holzmann HBS700 band saw. Please read these instructions thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
2. Safety Instructions
Always prioritize safety when operating power tools. Failure to follow safety guidelines can result in serious injury or damage to the machine.
- Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and a dust mask.
- Ensure the work area is clean, well-lit, and free from obstructions.
- Keep hands and fingers away from the saw blade during operation.
- Disconnect power before performing any adjustments, maintenance, or blade changes.
- Do not operate the machine under the influence of drugs or alcohol.
- Ensure the machine is properly grounded.
- Use the correct blade for the material being cut.
- Never force the workpiece into the blade.
3. Components Overview
Familiarize yourself with the main components of your HBS700 band saw.
Image 3.1: Front view of the Holzmann HBS700 band saw with the wheel covers open, revealing the upper and lower band wheels and the saw blade path. This view highlights the internal mechanics and blade tensioning system.
Image 3.2: Detailed view of the blade guides and support rollers, which ensure blade stability and cutting accuracy during operation.
- Band Wheels: Rubberized and precisely mounted for quiet operation. Diameter: 700 mm.
- Saw Blade: Accommodates blade widths from 19 mm to 50 mm. Length: 5020 mm.
- Work Table: Dimensions 700 x 900 mm. Can be tilted from -5° to +45° via a precision worm gear.
- Parallel Fence: Aluminum fence with quick-release mechanism. Features a measuring scale with two magnifiers for precise reading and adjustment.
- Blade Guides: Upper and lower blade guides ensure blade stability and accuracy.
- Dust Extraction Ports: Two 100 mm diameter ports for efficient chip extraction.
- Height Adjustment: Easy and quick cutting height adjustment via an adjustable rack and pinion combination.
4. Setup
4.1 Unpacking and Placement
Carefully unpack the band saw and ensure all components are present. Place the machine on a stable, level surface capable of supporting its weight (Net weight: 405 kg).
4.2 Power Connection
Connect the machine to a 400 V power supply. Ensure the electrical connection meets local regulations and safety standards. The motor power is 4000 W (S1) / 5600 W (S6).
4.3 Blade Installation
- Disconnect the machine from the power supply.
- Open the wheel covers.
- Loosen the blade tensioning mechanism.
- Carefully position the new blade (19-50 mm width, 5020 mm length) around the upper and lower band wheels.
- Ensure the blade teeth are pointing downwards towards the table.
- Adjust the blade guides so they are close to, but not touching, the blade.
- Tension the blade according to the manufacturer's recommendations (refer to machine labels for specific tensioning instructions).
- Close the wheel covers securely.
5. Operating Instructions
5.1 Basic Operation
Before starting, ensure all safety guards are in place and the work area is clear. Turn on the dust extraction system.
- Place the workpiece on the work table.
- Adjust the cutting height using the rack and pinion mechanism.
- If using, set the parallel fence to the desired width.
- Turn on the machine. Allow the blade to reach full speed before beginning the cut.
- Feed the workpiece slowly and steadily into the blade. Do not force the material.
- Once the cut is complete, turn off the machine and wait for the blade to stop completely before removing the workpiece.
5.2 Table Tilt Adjustment

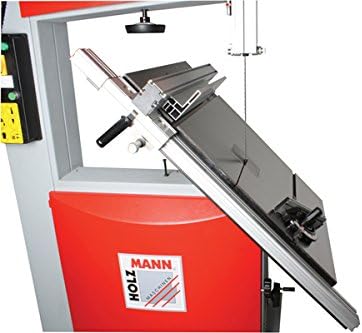

Image 5.1: Close-up view of the Holzmann HBS700 band saw's work table tilted, demonstrating its angle adjustment capability. The parallel fence is also visible, attached to the table.
The work table can be tilted for angled cuts. It can pivot from -5° to +45°.
- Loosen the table locking mechanism.
- Use the precision worm gear to adjust the table to the desired angle.
- Refer to the angle scale for accurate setting.
- Securely tighten the table locking mechanism before operation.
5.3 Parallel Fence Adjustment
Image 5.2: Detail of the Holzmann HBS700 band saw's aluminum parallel fence, showing the quick-release mechanism and the integrated measuring scale with two magnifiers for precise adjustments.
The aluminum parallel fence allows for precise rip cuts.
- Unlock the quick-release mechanism on the fence.
- Slide the fence to the desired cutting width.
- Use the measuring scale and magnifiers for accurate positioning.
- Lock the quick-release mechanism to secure the fence in place.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your band saw. Always disconnect the machine from the power supply before performing any maintenance.
- Cleaning: Regularly clean sawdust and debris from the machine, especially around the blade guides, wheels, and motor vents. Use the dust extraction ports during operation to minimize buildup.
- Blade Inspection: Inspect the saw blade for sharpness, cracks, or damage before each use. Replace dull or damaged blades immediately.
- Blade Guides: Check and adjust blade guides to ensure proper clearance and support for the blade.
- Tension: Verify blade tension regularly. Incorrect tension can lead to blade breakage or inaccurate cuts.
- Lubrication: Lubricate moving parts as indicated in the machine's specific lubrication points (refer to machine diagrams if available).
- Electrical Connections: Periodically check all electrical connections and cables for wear or damage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply; Emergency stop engaged; Faulty switch | Check power connection; Release emergency stop; Contact qualified service personnel |
| Blade wanders or cuts inaccurately | Dull blade; Incorrect blade tension; Improperly adjusted blade guides | Replace blade; Adjust blade tension; Adjust blade guides |
| Excessive vibration or noise | Loose components; Worn bearings; Unbalanced wheels | Check and tighten all fasteners; Inspect bearings; Contact service for wheel balancing |
| Motor overheats | Overloading; Insufficient ventilation | Reduce feed rate; Clear motor vents; Allow motor to cool |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Holzmann |
| Model Number | HBS700 |
| Power Type | Electric Corded |
| Voltage | 400 Volts |
| Motor Power S1 | 4000 W |
| Motor Power S6 | 5600 W |
| Speed | 1560 rpm |
| Table Dimensions | 700 x 900 mm |
| Table Height | 935 mm |
| Table Tilt Range | -5° to +45° |
| Max. Cutting Height (90°) | 430 mm |
| Cutting Width to Parallel Fence | 440 mm |
| Saw Blade Length | 5020 mm |
| Saw Blade Width | 19-50 mm |
| Wheel Diameter | 700 mm |
| Dust Extraction Ports | 2 x 100 mm |
| Net Weight | 405 kg |
| Gross Weight | 454 kg |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your authorized Holzmann dealer. The product is subject to standard legal guarantees.
Returns are typically accepted within 30 days of purchase. For specific details, please consult the seller's return policy.
Manufacturer: Holzmann
Model Reference: HBS700_400V
