KRUPS Cafe Prima Drip Coffee Maker

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the coffee maker.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The carafe is designed for use with this appliance. It must never be used on a range top.
• Do not place a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.

2. Product Components

Familiarize yourself with the parts of your KRUPS Cafe Prima Drip Coffee Maker:

• Water Reservoir: Holds water for brewing.
• Filter Basket: Holds the coffee filter and ground coffee.
• Carafe (Glass Pot): Collects the brewed coffee.
• Heating Plate: Keeps the carafe warm after brewing.
• Lid: Covers the water reservoir and filter basket area.
• On/Off Switch: Activates and deactivates the brewing cycle.

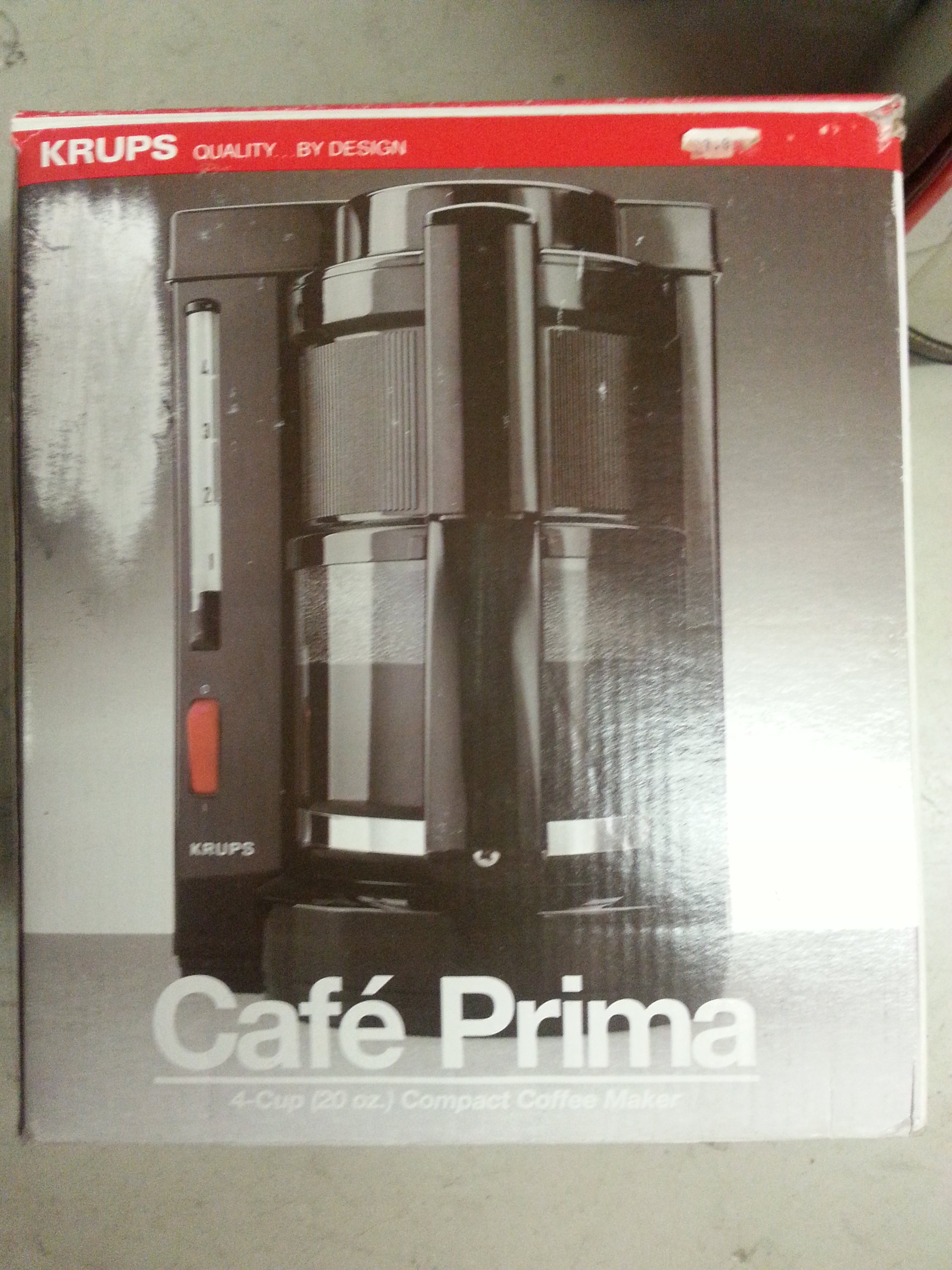

Image 1: Front view of the KRUPS Cafe Prima Drip Coffee Maker, showing the carafe, filter basket area, and water reservoir.

3. Initial Setup

1. Unpack: Carefully remove all packaging materials from the coffee maker.
2. Initial Cleaning: Before first use, wash the carafe and filter basket in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the coffee maker with a damp cloth.
3. First Brew Cycle (Cleaning):
   • Fill the water reservoir with fresh, cold water up to the 4-cup mark.
   • Place an empty paper filter (#2 cone filter) into the filter basket.
   • Place the carafe on the heating plate.
   • Plug the coffee maker into a 120V electrical outlet.
   • Turn the coffee maker ON and allow it to complete a full brewing cycle with only water.
   • Discard the water from the carafe and turn the coffee maker OFF.
   This process cleans the internal components and removes any manufacturing residues.
4. Placement: Place the coffee maker on a flat, stable, heat-resistant surface, away from the edge of the counter. Ensure adequate ventilation around the appliance.

4. Operating Instructions

Follow these steps to brew coffee with your KRUPS Cafe Prima Drip Coffee Maker:

1. Fill Water Reservoir: Open the lid and fill the water reservoir with fresh, cold water. Refer to the water level markings for desired cups (up to 4 cups). Do not exceed the maximum fill line.
2. Insert Filter: Place a #2 cone-shaped paper filter into the filter basket.
3. Add Coffee Grounds: Add the desired amount of ground coffee into the paper filter. A general guideline is one tablespoon of ground coffee per cup, but adjust to your personal preference.
4. Position Carafe: Ensure the empty carafe is correctly placed on the heating plate.
5. Start Brewing: Plug the coffee maker into a 120V electrical outlet. Press the ON/OFF switch to the "ON" position. The indicator light will illuminate, and brewing will begin.
6. Brewing Process: Water will heat up and drip through the coffee grounds into the carafe. The brewing process will take several minutes.
7. Keep Warm: Once brewing is complete, the heating plate will keep the coffee warm. The coffee maker will automatically shut off after a period of time (typically 30 minutes to 1 hour, refer to specific model details if available).
8. Serve: Carefully remove the carafe from the heating plate to pour coffee.
9. Turn Off: After serving, turn the coffee maker OFF and unplug it from the outlet.

Image 2: Close-up view of the KRUPS Cafe Prima Drip Coffee Maker, highlighting the filter basket and carafe placement.

5. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your coffee maker.

Daily Cleaning:

• Always unplug the coffee maker before cleaning and allow it to cool completely.
• Wash the carafe and filter basket in warm, soapy water after each use. Rinse thoroughly and dry. These parts may also be top-rack dishwasher safe (check product manual for specific dishwasher compatibility).
• Wipe the exterior of the coffee maker, including the heating plate, with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Do not immerse the coffee maker's main body, cord, or plug in water or any other liquid.

Descaling (Mineral Deposit Removal):

Mineral deposits (calcium) can build up in your coffee maker over time, affecting performance and coffee taste. Descale regularly, depending on water hardness and frequency of use (e.g., every 2-3 months).

1. Prepare a descaling solution: Mix 2-4 tablespoons of white vinegar with water, or use a commercial descaling agent according to its instructions. Fill the water reservoir with this solution.
2. Place an empty paper filter in the filter basket and the empty carafe on the heating plate.
3. Turn the coffee maker ON and allow half of the solution to brew through.
4. Turn the coffee maker OFF and let it stand for at least 15 minutes to allow the solution to work.
5. Turn the coffee maker ON again and brew the remaining solution.
6. Discard the solution from the carafe.
7. Rinse Cycle: Fill the water reservoir with fresh, cold water and run at least two full brewing cycles with only water to rinse out any remaining descaling solution. Discard water after each cycle.

6. Troubleshooting Guide

Before contacting customer service, please refer to the following common issues and solutions:

7. Product Specifications

8. Warranty and Customer Support

For detailed warranty information, please refer to the warranty card included with your product or visit the official KRUPS website. If you encounter any issues not covered in this manual or require further assistance, please contact KRUPS customer support.

KRUPS Customer Service:

• Website: www.krups.com (for product registration, FAQs, and contact information)
• Phone: Refer to the KRUPS website for regional contact numbers.

Please have your model number (Type 105) and purchase date available when contacting support.
