1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of the Simpson Strong-Tie E1B1414B Self-Drilling Metal Screw. Designed for efficient and secure fastening in metal applications, this product embodies Simpson Strong-Tie's commitment to quality and performance. Please read this manual thoroughly before use to ensure safe and effective application.
2. Product Overview
The E1B1414B is a Number-14, 1-inch self-drilling metal screw featuring a 3/8-inch hex head and a Hex-3 drill point. It is designed for direct fastening into metal without the need for pre-drilling in many applications. Key features include:
- Clear Zinc Finish for corrosion resistance.
- Bit included in each box for immediate use.
- Supplied in quantities of 2,500 per box, suitable for large projects.
2.1. Product Components and Features
Figure 2.1: Overall View of the E1B1414B Screw. This image displays the complete structure of the self-drilling metal screw, highlighting its hex head for secure driving, the robust threaded body for strong engagement, and the specialized drill point designed to penetrate metal efficiently.

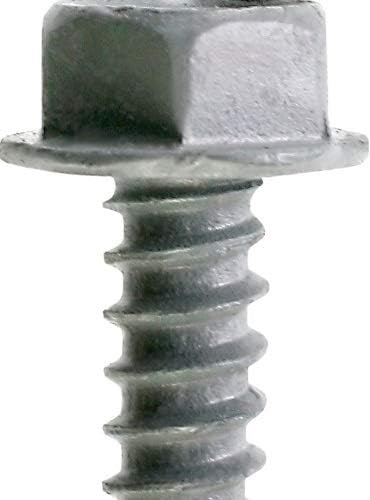

Figure 2.2: Hex Head Detail. A detailed view of the 3/8-inch hex head, designed for use with a hex driver bit, ensuring positive engagement and preventing cam-out during installation. The integrated washer face provides a larger bearing surface.
Figure 2.3: Drill Point Detail. This image focuses on the Hex-3 drill point, which is engineered to drill its own pilot hole and form threads in metal, eliminating the need for a separate drilling operation and speeding up installation.
3. Setup
Proper setup is crucial for effective and safe use of the E1B1414B self-drilling screws. Ensure you have the correct tools and understand the material you are fastening into.
3.1. Required Tools and Materials
- Power drill with adjustable clutch.
- 3/8-inch hex driver bit (one is included in the box).
- Appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Material to be fastened (e.g., metal studs, metal sheeting).
3.2. Pre-Installation Checks
- Verify the thickness and type of metal to be fastened. The self-drilling capability is optimized for specific metal gauges.
- Ensure the drill bit is securely seated in the power drill.
- Confirm the screw length (1-inch) is appropriate for the combined thickness of the materials being joined.
4. Operating Instructions
Follow these steps for proper installation of the E1B1414B self-drilling metal screws:
- Prepare the Work Area: Ensure the fastening area is clean and free of obstructions. Mark the desired fastening points if precision is required.
- Attach the Bit: Insert the 3/8-inch hex driver bit into your power drill and secure it.
- Position the Screw: Place the E1B1414B screw onto the hex driver bit. The screw should sit firmly on the bit.
- Start Drilling: Position the tip of the screw directly onto the metal surface at the desired fastening point. Apply firm, consistent pressure to the drill.
- Drive the Screw: Begin drilling at a moderate speed. The drill point will first penetrate the metal, then the threads will engage. Continue driving until the hex head is flush with the surface of the material, or until the desired clamping force is achieved. Avoid over-tightening, which can strip the threads or damage the material.
- Inspect the Fastening: After installation, visually inspect the screw to ensure it is properly seated and secure.
Note: For very thick or hardened metals, a pilot hole may still be beneficial, though these screws are designed to self-drill in most common metal applications. Always test on a scrap piece of material if unsure.
5. Maintenance
The Simpson Strong-Tie E1B1414B screws are designed for single-use installation and require minimal maintenance. However, proper storage is essential to preserve their quality and performance.
- Storage: Store screws in their original packaging or a sealed container in a cool, dry place. Protect them from moisture and extreme temperatures to prevent corrosion.
- Handling: Handle screws carefully to avoid damaging the threads or drill point.
- Inspection: Before use, quickly inspect screws for any signs of damage or corrosion. Do not use damaged screws.
6. Troubleshooting
This section addresses common issues that may arise during the installation of self-drilling metal screws.
| Problem | Possible Cause | Solution |
|---|---|---|
| Screw not drilling into metal. | Insufficient pressure; incorrect drill speed; metal too thick/hard for self-drilling; worn drill point. | Apply more consistent pressure; increase drill speed; consider pre-drilling a pilot hole; use a new screw. |
| Screw head strips (cam-out). | Incorrect bit size; insufficient pressure; excessive torque; worn driver bit. | Ensure 3/8-inch hex bit is used; apply firm, consistent pressure; adjust drill clutch setting; replace worn bit. |
| Screw breaks during installation. | Over-tightening; material too hard; screw not aligned properly. | Reduce torque; ensure screw is perpendicular to surface; verify material compatibility. |
| Screw not holding securely. | Threads stripped in material; incorrect screw length; material too thin. | Use a larger diameter screw or different fastener type; ensure proper screw length for material thickness. |
7. Specifications
| Attribute | Value |
|---|---|
| Part Number | E1B1414B |
| Item Model Number | E1B1414B |
| Size | 1-Inch |
| Colour | Clear |
| Material | Steel |
| Item Package Quantity | 1 (Box contains 2,500 screws) |
| Head Style | Hex |
| Drive System | External Hex |
| Measurement System | Imperial |
| Product Dimensions (L x W x H) | 20.32 x 15.24 x 20.32 cm (Box dimensions) |
| Item Weight | 15.7 kg (Box weight) |
| Exterior Finish | Metal, Zinc Finish |
| Date First Available | Sept. 11 2014 |
8. Warranty and Support
Simpson Strong-Tie products are manufactured to high standards of quality and performance. For specific warranty information regarding the E1B1414B Self-Drilling Metal Screw, please refer to the official Simpson Strong-Tie website or contact their customer support directly.
For technical assistance, product inquiries, or support, please visit the official Simpson Strong-Tie website or contact their customer service department:
- Official Website: www.strongtie.com
- Customer Support: Refer to the website for regional contact information.
Simpson Strong-Tie is continually striving to introduce innovative new products that advance construction technology. Being equally committed to fulfilling the Simpson Strong-Tie promise of uncompromised quality, service and support with each new expansion to our product offering. Simpson focuses on quality and product performance, documenting both with extensive testing done to the latest industry standards.
