Introduction
This manual provides essential instructions for the HCDZ Replacement Remote Control, designed for use with various Samsung LCD LED HDTV models, including AA59-00463A, AA59-00444A, and AA59-00477A. This remote is an infrared (IR) replacement and requires no programming. Simply install batteries to begin use.
Setup
1. Battery Installation
The HCDZ Replacement Remote Control requires two (2) AAA batteries (not included). Follow these steps to install them:
- Locate the battery compartment on the back of the remote control.
- Press down on the tab and slide the battery cover downwards to open it.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery cover back into place until it clicks securely.

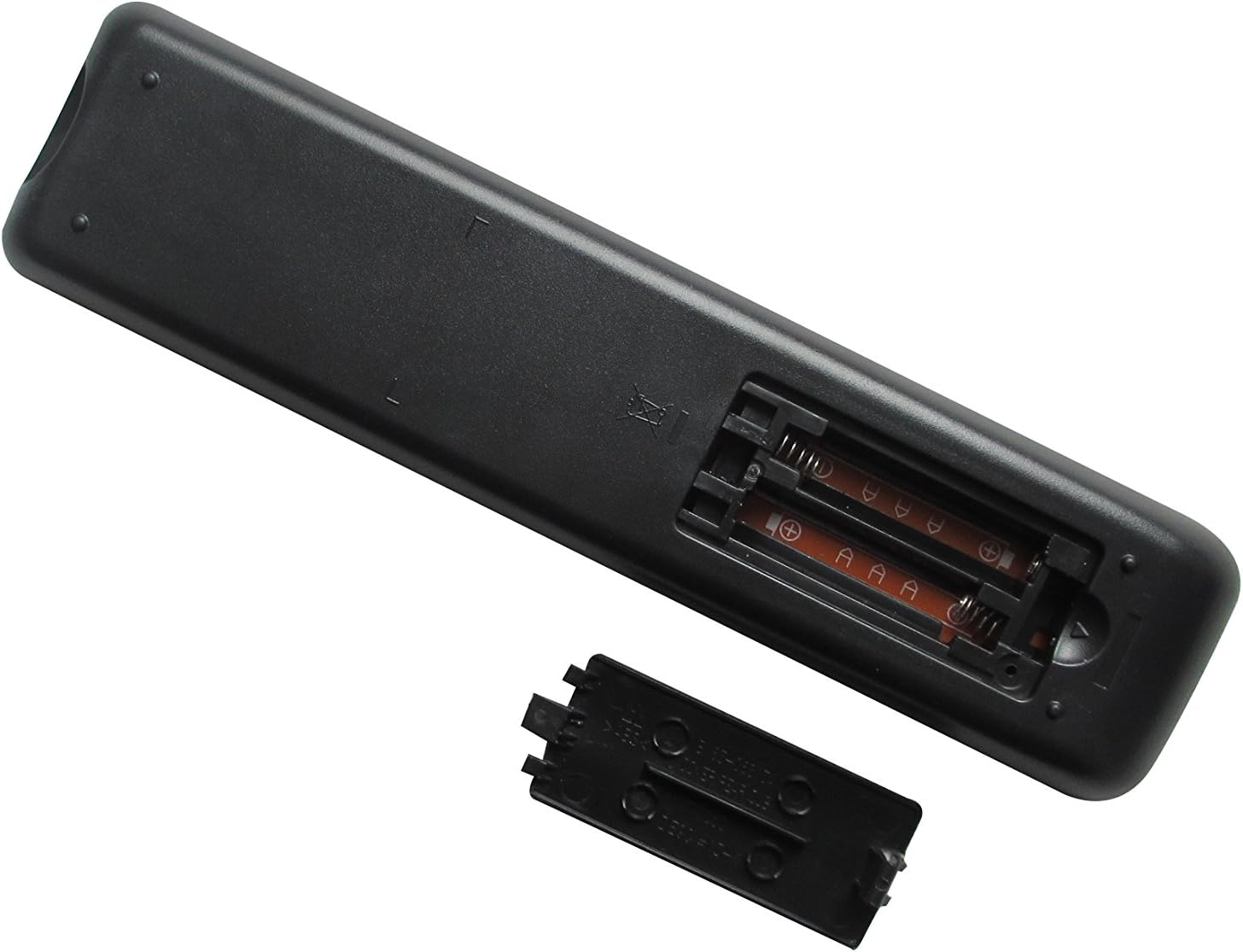

Image: The back of the HCDZ remote control with the battery cover removed, illustrating the correct orientation for inserting AAA batteries.
Important: This remote control does not require any programming. Once batteries are correctly installed, it is ready for use with compatible Samsung TVs.
Operating Instructions
The HCDZ Replacement Remote Control functions identically to the original Samsung remote for compatible models. Point the remote directly at your television's infrared receiver.
Basic Functions:
- Power Button: Turns the television on or off.
- Channel Up/Down: Changes the television channel.
- Volume Up/Down: Adjusts the television volume.
- Mute Button: Silences the television audio.
- Number Buttons (0-9): Directly input channel numbers.
- Input/Source Button: Cycles through available input sources (HDMI, AV, etc.).
- Menu Button: Accesses the television's main menu.
- Navigation Buttons (Up, Down, Left, Right, Enter): Used to navigate menus and select options.
Image: Front view of the HCDZ Replacement Remote Control, displaying the layout of all functional buttons.
Maintenance
Proper care ensures the longevity and optimal performance of your remote control.
- Cleaning: Wipe the remote control regularly with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials, as these can damage the surface or internal components.
- Battery Replacement: Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
- Storage: If the remote will not be used for an extended period, remove the batteries to prevent leakage, which can damage the remote. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Avoid Drops: Protect the remote from physical impact, as drops can damage internal circuitry.
Image: Back view of the HCDZ Replacement Remote Control, showing the closed battery compartment.
Troubleshooting
If you encounter issues with your remote control, try the following solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote is not responding. | Dead or incorrectly installed batteries. Obstruction between remote and TV. Remote is out of range. | Replace batteries with new AAA batteries, ensuring correct polarity. Remove any objects blocking the line of sight to the TV's IR sensor. Move closer to the TV. |
| Some buttons are not working. | Dirt or debris under buttons. Internal malfunction. | Clean the remote surface. If the issue persists after cleaning and battery replacement, the remote may be faulty. |
| Remote does not control the TV. | Incompatible TV model. | Verify that your Samsung TV model is listed as compatible (AA59-00463A, AA59-00444A, AA59-00477A). This remote is specifically designed for these and similar models. |
| Delayed response from TV. | Weak batteries. Interference. | Replace batteries. Ensure no strong light sources or other IR devices are interfering. |
Specifications
- Model Number: HCDZ-X06871
- Brand: HCDZ
- Compatible Devices: Samsung LCD LED HDTVs (Models AA59-00463A, AA59-00444A, AA59-00477A)
- Connectivity Technology: Infrared (IR)
- Batteries Required: 2 x AAA (not included)
- Special Feature: Ergonomic design
- Max Number of Supported Devices: 1
- Item Weight: Approximately 3.98 ounces (112.8 grams)
- Package Dimensions: Approximately 7.87 x 2.05 x 1.1 inches (20 x 5.2 x 2.8 cm)
Warranty Information
Specific warranty details for the HCDZ Replacement Remote Control are not provided in this manual. For information regarding warranty coverage, returns, or exchanges, please refer to the purchase documentation or contact the seller directly.
Support
If you have any questions, require further assistance, or encounter issues not covered in this manual, please do not hesitate to contact the seller or manufacturer for support. Provide your product model number (HCDZ-X06871) and a detailed description of your issue for efficient service.
