Important Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal.
- Always disconnect power at the main circuit breaker before installation or maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections comply with local codes and ordinances.
- Do not install this fixture in wet locations unless specifically rated for such use. This bathbar is designed for bathroom vanity use.
- Handle crystal components with care to prevent breakage.
Package Contents
Verify that all components listed below are present before beginning installation.
- Light Fixture (1)
- G9 Light Bulbs (5)
- Mounting Hardware (screws, wire nuts, etc.)
- Faceted Crystal Shade Orbs (5)

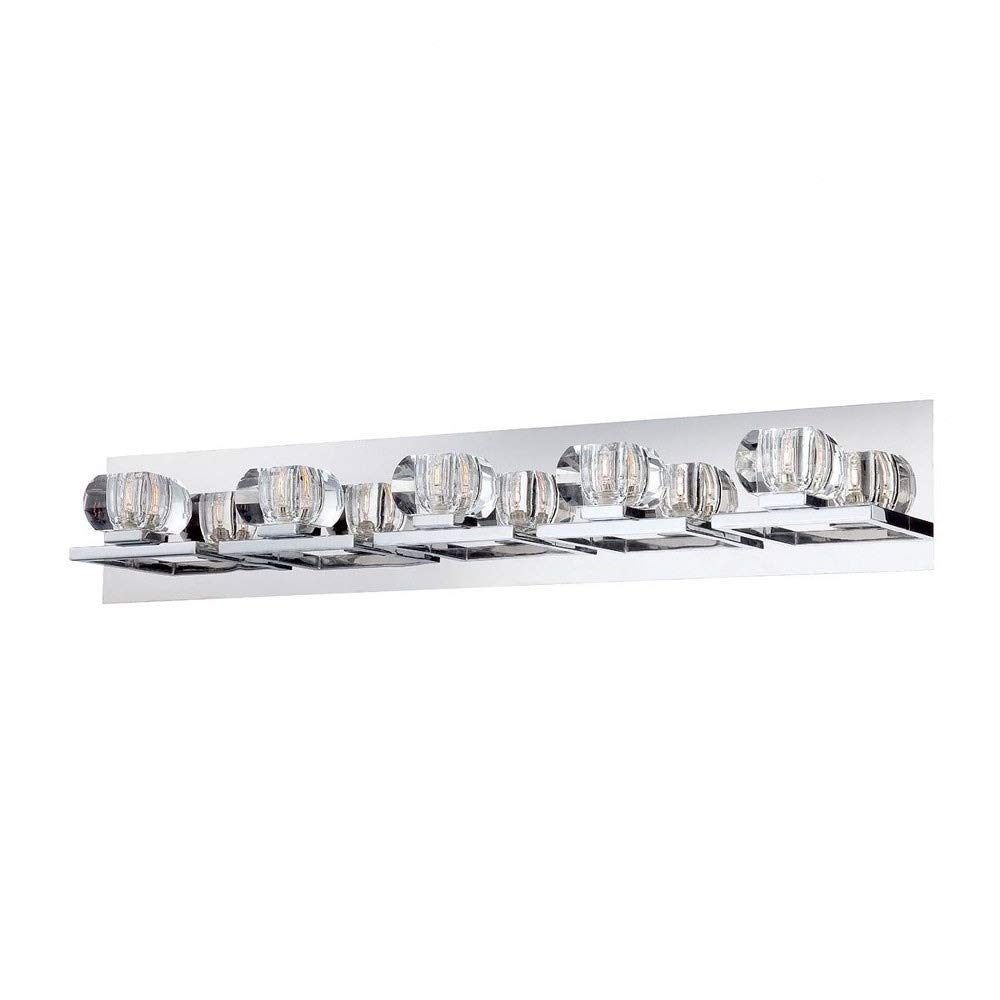

Image 1: Eurofase 26359-014 Casa Bathbar with crystal orbs and chrome finish.
Setup and Installation
Professional installation by a licensed electrician is recommended for safety and proper functionality.
- Turn off Power: Locate the main circuit breaker and turn off the power to the junction box where the fixture will be installed.
- Prepare Mounting Surface: Ensure the wall surface is clean, dry, and structurally sound to support the fixture's weight.
- Install Mounting Bracket: Attach the mounting bracket to the junction box using the provided screws. Ensure it is securely fastened.
- Wire Connections: Connect the fixture's wires to the household electrical wires according to standard wiring practices (black to black, white to white, ground to ground). Secure connections with wire nuts.
- Mount Fixture: Carefully align the fixture with the mounting bracket and secure it in place using the provided screws.
- Install G9 Bulbs: Insert the five G9 light bulbs into their respective sockets. Handle bulbs by their base to avoid touching the glass.
- Attach Crystal Orbs: Carefully attach the faceted crystal shade orbs to the fixture as per the design.
- Restore Power: Once installation is complete and all components are secure, restore power at the main circuit breaker.
Image 2: Example installation of Eurofase bathbars above a bathroom vanity with mirrors and sinks.
Operating Instructions
The Eurofase Casa Bathbar is designed for simple operation.
- Power On/Off: Use the wall switch connected to the fixture to turn the light on or off.
- Dimming Function: This fixture is dimmable. If connected to a compatible dimmer switch (sold separately), you can adjust the light intensity by operating the dimmer control.
- Touch Control: The fixture features a touch control method. Refer to your specific wall switch or dimmer for detailed touch operation instructions.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your bathbar.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the chrome finish and crystal orbs. Do not use abrasive cleaners or solvents, as these may damage the finish.
- Bulb Replacement:
- Turn off power at the circuit breaker.
- Allow bulbs to cool completely before handling.
- Carefully remove the old G9 bulb by pulling it straight out.
- Insert a new G9 halogen bulb (max 40W) by pushing it straight into the socket. Avoid touching the glass of the new bulb with bare hands; use a cloth or glove.
- Restore power.
Troubleshooting
If you encounter issues with your Eurofase Casa Bathbar, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
| Crystal orbs are dull. |
|
|
If the problem persists after trying these solutions, contact Eurofase customer support or a qualified electrician.
Specifications
| Brand | Eurofase |
| Model Number | 26359-014 |
| Model Name | CASA |
| Fixture Type | Vanity Light / Bathbar |
| Finish | Chrome |
| Material | Glass (Crystal Orbs) |
| Number of Light Sources | 5 |
| Bulb Base | G9 |
| Bulb Type | Halogen (included) |
| Max Wattage per Bulb | 40 watts |
| Voltage | 120 Volts |
| Dimmable | Yes |
| Mounting Type | Wall Mount |
| Item Weight | 8.64 Pounds |
| UPC | 784497627567, 773546246552 |
Warranty and Support
Eurofase products are backed by warranties, reflecting a commitment to craftsmanship, durability, and exceptional service. For specific warranty details, product support, or to inquire about replacement parts, please visit the official Eurofase website or contact their customer service department.
Online Support: www.eurofase.com
