Munchkin Wooden Extendable Safety Gate

1. Introduction

This instruction manual provides essential information for the safe installation, operation, and maintenance of your Munchkin Wooden Extendable Safety Gate. Please read all instructions carefully before assembly and use. Keep this manual for future reference.

Important Safety Warning: Improper installation can be dangerous. Always ensure the gate is securely installed according to these instructions. This safety barrier is designed for domestic use only. Regularly check that the safety barrier is correctly installed and secure. Never leave children unattended near the gate.

Figure 1: Munchkin Wooden Extendable Safety Gate in use, providing a barrier at a staircase.

2. Product Features

• Wall-Mounted Design: Securely attaches directly to the wall for maximum stability.
• No Trip Bar: Features a design without a bottom trip bar, reducing tripping hazards, especially at the top of stairs.
• Extendable Width: Adjustable to fit openings from 63.5 cm to 106 cm.
• One-Handed Operation: Tilt and lift handle mechanism allows adults to open the gate easily with one hand.
• Dual Opening Direction: Can be configured to open in one or both directions.
• Quick Release Fittings: Allows for easy removal and re-attachment of the gate when not needed.
• Durable Construction: Made from robust natural wood.

3. Package Contents

Please ensure all components are present before beginning installation. If any parts are missing or damaged, do not use the gate and contact customer support.

• 1 x Munchkin Wooden Extendable Safety Gate
• Wall Mounting Brackets (4 pieces)
• Mounting Screws and Wall Plugs
• Instruction Manual (this document)

4. Installation Guide

This gate is designed for wall-mounted installation. Tools required: Drill, screwdriver, pencil, measuring tape, spirit level.

1. Measure and Mark: Determine the desired location for the gate. Ensure the opening width is between 63.5 cm and 106 cm. Use a pencil and measuring tape to mark the positions for the four wall mounting brackets. Ensure the marks are level and at the correct height (approximately 73 cm from the floor).
2. Drill Pilot Holes: Using an appropriate drill bit for your wall type, drill pilot holes at the marked positions. Insert the wall plugs into the drilled holes.
3. Attach Wall Brackets: Secure the four wall mounting brackets to the wall using the provided screws. Ensure they are firmly attached and level.

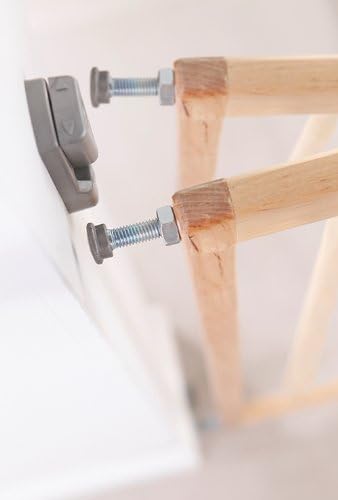

Figure 2: Detail of the wall mounting screw and bracket installation.

4. Attach Gate to Brackets: Align the gate's hinge pins with the top and bottom wall brackets on one side. Slide the gate onto the pins.


Figure 3: The gate's hinge mechanism securely attached to the wall bracket.

5. Adjust Gate Width: Extend or retract the gate panels to fit snugly between the wall brackets on the opposite side. Secure the gate's latch mechanism to the remaining wall brackets.
6. Test Security: Once installed, firmly push and pull on the gate to ensure it is securely mounted and does not move. Check that the latch mechanism engages properly.

5. Operating Instructions

The Munchkin Wooden Extendable Safety Gate features a tilt and lift mechanism for adult-friendly, one-handed operation.

1. To Open: Locate the latch handle. Tilt the handle upwards, then lift the gate panel slightly to disengage the latch from the wall bracket. Swing the gate open in the desired direction.

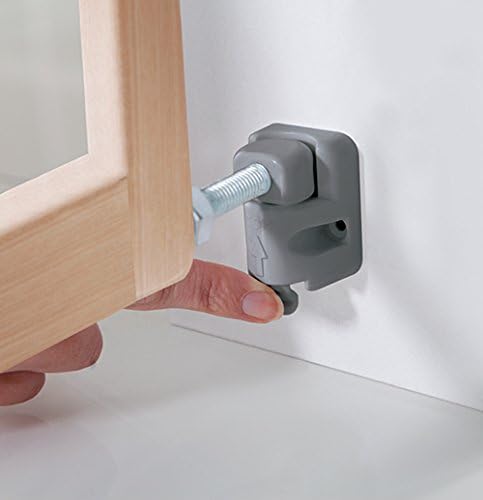

Figure 4: Engaging the latch mechanism for opening.

2. To Close: Swing the gate panel back into the closed position. Ensure the latch mechanism aligns with the wall bracket and gently push down until it clicks securely into place. Always verify the gate is properly latched.

Figure 5: The gate provides a wide opening for passage.

6. Maintenance and Care

• Cleaning: Wipe the gate with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals, as these may damage the wood finish.
• Inspection: Regularly inspect all parts for wear, damage, or loose fittings. Pay close attention to hinges, latches, and wall mounts.
• Tightening: Periodically check and tighten all screws and fasteners to ensure the gate remains secure.
• Wood Care: If the wood appears dry, a non-toxic wood conditioner or polish can be applied sparingly.

7. Troubleshooting

• Gate does not latch securely:
  Solution: Check if the wall brackets are aligned correctly. The gate may need slight adjustment in width or the brackets may need repositioning. Ensure no obstructions prevent the latch from engaging fully.
• Gate feels loose or wobbly:
  Solution: Re-check all mounting screws and ensure they are tightened. Verify that the wall plugs are securely seated in the wall. If the wall material is soft, consider using stronger anchors.
• Difficulty opening/closing the gate:
  Solution: Ensure the tilt and lift mechanism is being operated correctly. Check for any debris or damage around the latch or hinges. A small amount of silicone spray on the moving parts may help, but avoid contact with children.

8. Specifications

9. Safety Information

• This gate is intended for use with children from 6 to 24 months.
• Never use this gate as a substitute for adult supervision.
• Do not allow children to climb on, shake, or hang from the gate.
• Always close and latch the gate securely after passing through.
• Do not use the gate if any components are damaged or missing.
• This gate is designed for use in doorways and at the top or bottom of stairs.
• Ensure the gate is installed on a stable and structurally sound surface.
• Keep small parts out of reach of children during assembly.

10. Customer Support

For any questions, concerns, or assistance with your Munchkin Wooden Extendable Safety Gate, please contact Munchkin customer service. Refer to the product packaging or the official Munchkin website for current contact information.
