1. Introduction
1.1 Product Overview
The Fengda BD-183K is a versatile double-action airbrush set designed for a wide range of applications, including model painting, automotive graphics, fine art, and hobby crafts. This set includes multiple nozzle and needle sizes, allowing for various spray patterns and detail levels. Its robust construction ensures durability and precise control for both beginners and experienced users.
1.2 Package Contents
Please verify that all items listed below are present in your package:
- 1 x BD-183 Airbrush (0.5 mm nozzle pre-installed)
- 1 x 0.3 mm Nozzle
- 1 x 0.8 mm Nozzle
- 1 x 0.3 mm Needle
- 1 x 0.8 mm Needle
- 2 x Nozzle Caps
- 1 x Small Wrench
- 1 x BD24 Air Hose (1.8 meters length)
- 1 x BD-A4 Reducer (Adapter)
- 3 x Different Paint Cups (2 with lids)

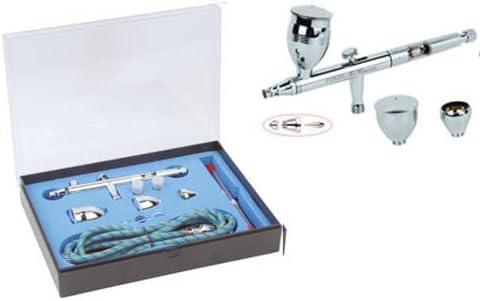

The Fengda BD-183K Airbrush Set includes the BD-183 airbrush, multiple nozzle and needle sizes, an air hose, and various paint cups, all neatly organized in a protective case.
2. Safety Instructions
Always follow these safety guidelines to prevent injury and ensure proper operation of your airbrush equipment:
- Ventilation: Always operate the airbrush in a well-ventilated area to avoid inhaling paint fumes. Consider using a spray booth or working outdoors.
- Protective Gear: Wear appropriate personal protective equipment (PPE), including a respirator mask, safety glasses, and gloves, especially when working with solvent-based paints.
- Paint Handling: Read and follow the safety instructions provided by the paint manufacturer. Do not ingest paints or thinners. Keep out of reach of children and pets.
- Air Pressure: Never exceed the recommended air pressure for your airbrush or compressor. Ensure all connections are secure before applying air pressure.
- Cleaning Solvents: Use cleaning solvents in a well-ventilated area. Avoid skin contact and eye exposure.
- Electrical Safety: If using an air compressor, ensure it is properly grounded and follow its specific safety instructions.
3. Setup Guide
3.1 Connecting the Airbrush
- Ensure your air compressor or air source is turned off and depressurized.
- Connect one end of the BD24 air hose to the air outlet of your compressor. If necessary, use the BD-A4 reducer for compatibility.
- Connect the other end of the air hose to the air inlet port at the bottom of the BD-183 airbrush handle. Tighten securely by hand.
- Attach the desired paint cup to the top of the airbrush body. Ensure it is seated firmly to prevent leaks.
3.2 Nozzle and Needle Selection
The BD-183K set includes 0.3mm, 0.5mm (pre-installed), and 0.8mm nozzle/needle combinations. Select the appropriate size based on your painting needs:
- 0.3 mm: Ideal for fine details, thin lines, and small areas.
- 0.5 mm: A versatile general-purpose size for medium details and broader coverage.
- 0.8 mm: Best for larger areas, background coverage, and thicker paints.
To change the nozzle and needle:
- Unscrew the nozzle cap and then the nozzle itself using the small wrench provided.
- Carefully pull the needle out from the rear of the airbrush.
- Insert the new needle from the rear, pushing it gently until it stops.
- Screw on the new nozzle, ensuring it is snug but not overtightened.
- Replace the nozzle cap.

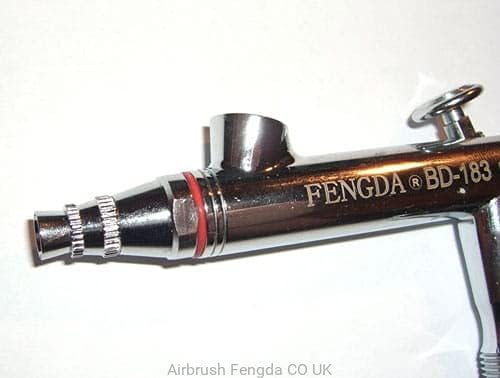

A detailed view of the Fengda BD-183 airbrush, highlighting the adjustable nozzle and the connection point for paint cups. The red O-ring indicates a secure seal.
4. Operating Instructions
4.1 Paint Preparation
Most paints require thinning to achieve the correct consistency for airbrushing. The ideal consistency is similar to milk. Always use the recommended thinner for your specific paint type.
- Mix paint and thinner in a separate container before pouring into the airbrush cup.
- Stir thoroughly to ensure a consistent mixture.
- Strain the paint through a fine mesh filter if necessary to remove any particles that could clog the airbrush.
4.2 Basic Spraying Technique
The BD-183 is a double-action airbrush, meaning the trigger controls both air and paint flow:
- Air First: Press the trigger down to release air.
- Paint Second: While holding the trigger down, pull it back to release paint. The further back you pull, the more paint is released.
- Air Last: To stop spraying, push the trigger forward to stop paint flow, then release it to stop air flow.
- Practice on scrap material to get a feel for the airbrush's response and to achieve desired spray patterns.
4.3 Adjusting Air and Paint Flow
- Air Pressure: Adjust the air pressure at your compressor. Lower pressure is suitable for fine details, while higher pressure is for broader coverage and thicker paints.
- Paint Flow: Control paint flow by how far you pull back the trigger. For very fine control, the needle stop screw at the rear of the airbrush can limit the maximum needle travel.
5. Maintenance and Cleaning
Proper cleaning is crucial for the longevity and performance of your airbrush.
5.1 After Each Use (Quick Clean)
- Empty any remaining paint from the cup.
- Pour a small amount of appropriate cleaning solution (water for acrylics, thinner for enamels/lacquers) into the cup.
- Spray the cleaner through the airbrush until it runs clear.
- Use a cotton swab or brush to clean the inside of the paint cup.
- Back-flush the airbrush by covering the nozzle with your finger and pressing the trigger down for air, then pulling back for paint. This forces air and cleaner back into the cup, dislodging paint.
5.2 Deep Cleaning (Periodically or When Clogged)
- Disassemble the airbrush: Remove the nozzle cap, nozzle, and needle.
- Soak the nozzle and needle in an appropriate cleaning solution.
- Use small cleaning brushes to thoroughly clean all internal passages of the airbrush body.
- Clean the needle carefully with a soft cloth and cleaner. Avoid bending the tip.
- Rinse all parts with clean water or cleaner.
- Reassemble the airbrush, ensuring all parts are correctly seated and tightened.
5.3 Nozzle and Needle Care
- The nozzle and needle are delicate. Handle them with extreme care to avoid bending or damaging the tips.
- Never force the needle into the airbrush if it meets resistance.
- Store the airbrush with the needle retracted or removed to prevent accidental damage.
6. Troubleshooting
Here are common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No paint flow | Clogged nozzle/needle, bent needle, paint too thick, no paint in cup | Clean nozzle/needle, thin paint, check paint level, replace bent needle |
| Uneven spray pattern / Spitting | Partially clogged nozzle, damaged nozzle/needle tip, loose nozzle, paint too thin/thick | Deep clean, tighten nozzle, adjust paint consistency, replace damaged parts |
| Air bubbles in paint cup | Clogged nozzle, loose nozzle, damaged nozzle, bent needle | Clean/tighten nozzle, check needle, replace damaged parts |
| Air leaks | Loose connections, damaged O-rings | Tighten connections, inspect and replace O-rings if damaged |
| Trigger sticks | Dried paint in trigger mechanism, lack of lubrication | Disassemble and clean trigger area, apply airbrush lubricant sparingly |
7. Technical Specifications
- Model: BD-183K
- Manufacturer: Airbrush Fengda
- Nozzle Sizes Included: 0.3 mm, 0.5 mm, 0.8 mm
- Needle Sizes Included: 0.3 mm, 0.5 mm, 0.8 mm
- Air Hose Length: 1.8 meters (BD24)
- Airbrush Type: Double-action, gravity feed
- ASIN: B00HYL82EY
- Batteries Required: No
- Discontinued by Manufacturer: No
8. Warranty and Support
Information regarding specific warranty terms for the Fengda BD-183K Airbrush Set was not available in the provided product data. For warranty claims, technical support, or inquiries about spare parts, please contact the seller or manufacturer directly through their official channels. Retain your proof of purchase for any warranty-related requests.
