1. Product Overview
The Keter 12-922631 outdoor storage box is designed for exterior storage. Its robust resin structure provides high resistance to impacts and various weather conditions. The material is UV-treated, ensuring durability and color retention without requiring extensive maintenance. This multi-functional storage solution is equipped with hydraulic pistons to facilitate smooth and easy opening of the lid.
Key Features:
- Lockable design for enhanced security (lock not included).
- Features both a double door and a top-opening lid for versatile access.
- Constructed from durable, UV-treated polypropylene resin.
- Weather-resistant and maintenance-free.
- Equipped with hydraulic pistons for easy lid opening.
Image: The Keter 12-922631 outdoor storage box with its lid and front doors open, showcasing its capacity to hold two standard green trash bins. This illustrates the dual-access functionality and internal space.
2. Setup Instructions
The Keter 12-922631 storage box is delivered in a large package, weighing approximately 23-30 kg. It is recommended to have assistance for handling and assembly. All components are meticulously arranged and packed to prevent damage during transit.
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the included parts diagram are present and undamaged.
- Prepare Tools: Gather necessary tools for assembly. While specific tools are not detailed, a screwdriver and possibly a rubber mallet may be useful for securing connections.
- Follow Illustrated Guide: Refer to the step-by-step illustrated assembly guide provided with the product. Each step is depicted visually to ensure correct component placement and connection.
- Assemble Base: Begin by assembling the base of the storage box on a flat, level surface.
- Attach Side Panels: Securely attach the side panels to the base, ensuring all connections are firm.
- Install Back Panel: Connect the back panel to the assembled sides and base.
- Mount Doors: Attach the front doors, ensuring they swing freely and align correctly.
- Install Lid and Pistons: Mount the top lid and connect the hydraulic pistons. Ensure pistons are correctly oriented for smooth operation.
- Final Checks: Once assembled, check all connections for stability and ensure the lid and doors open and close without obstruction.

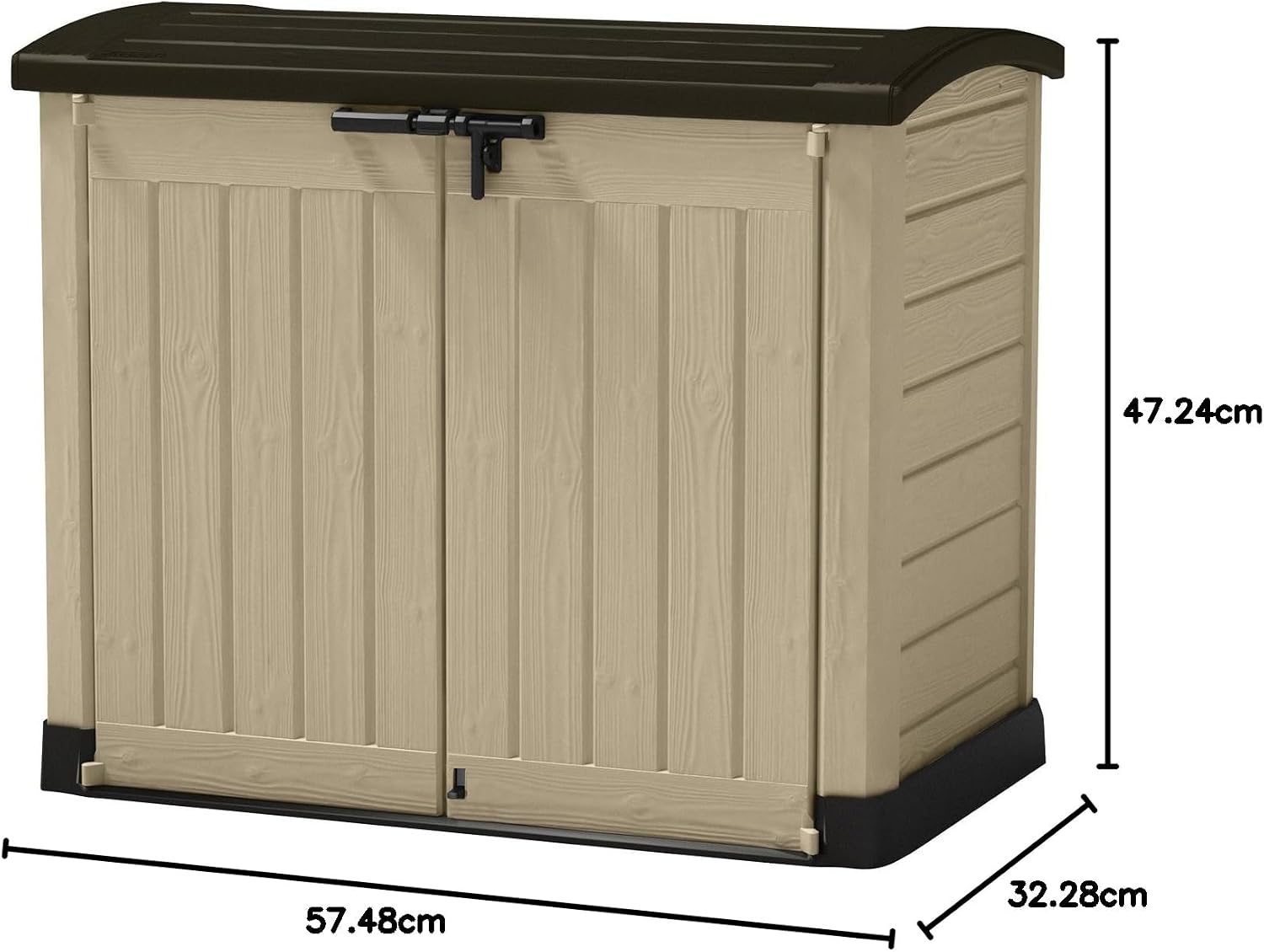

Image: A technical diagram illustrating the external dimensions of the Keter 12-922631 storage box, providing measurements for length, width, and height, which are crucial for planning placement.
3. Operating Instructions
The Keter 12-922631 storage box offers convenient access through its dual-opening mechanism.
Opening and Closing:
- Lid Access: To open the lid, gently lift it upwards. The integrated hydraulic pistons will assist in raising the lid and holding it open securely. To close, pull the lid down firmly until it latches.
- Front Door Access: To open the front doors, unlatch any locking mechanism (if installed) and pull the doors outwards. To close, push the doors inward until they meet and secure the latch.
- Simultaneous Access: Both the lid and front doors can be opened simultaneously for full access to the interior, useful for storing larger items or retrieving multiple objects.
Locking Mechanism:
The storage box is designed to be lockable. A padlock (not supplied) can be inserted through the designated latch on the front of the box to secure both doors and the lid simultaneously.

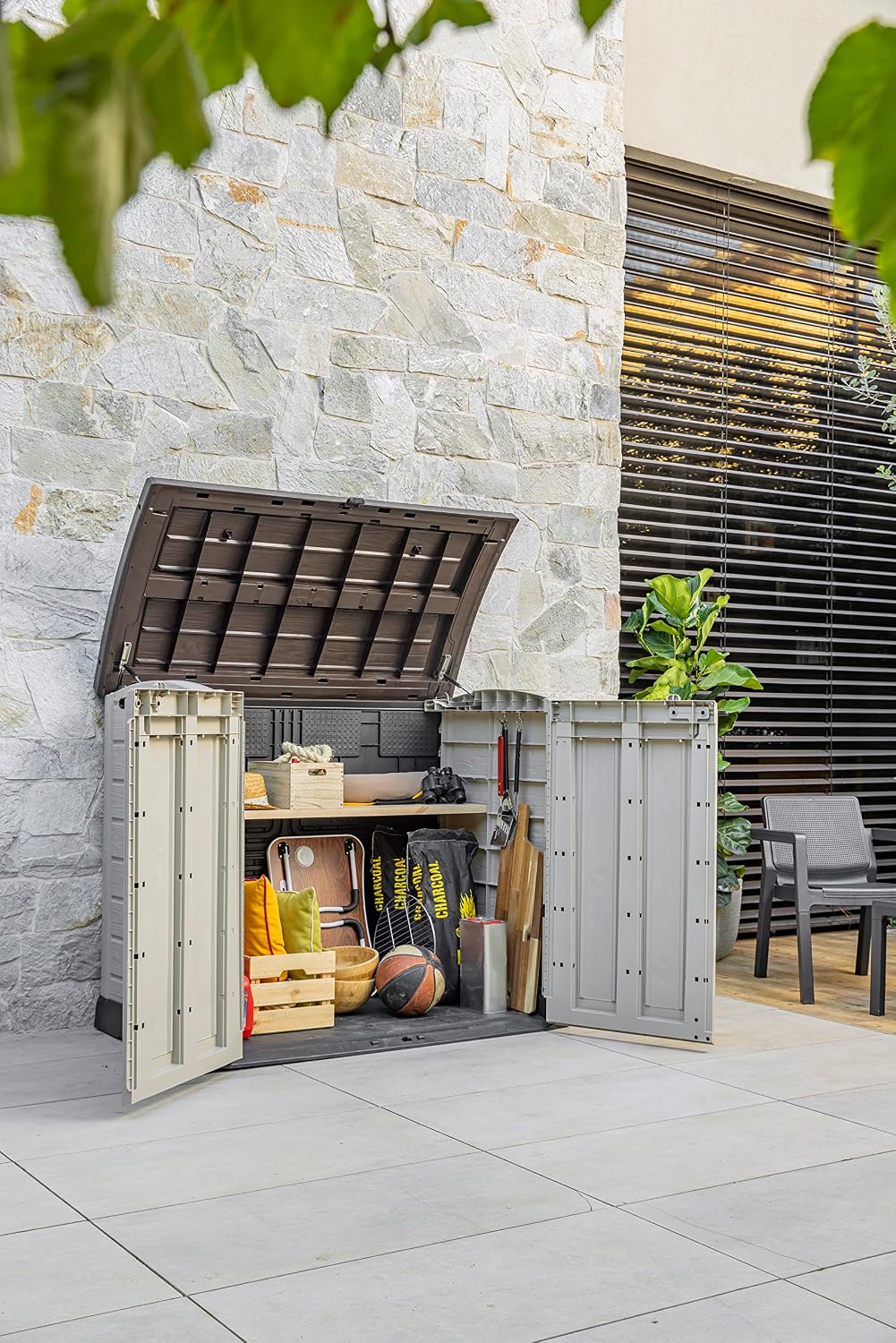

Image: The Keter 12-922631 storage box with its lid and front doors fully open, displaying a variety of garden tools, cushions, and other outdoor items neatly stored on shelves and the base. This highlights the spacious interior and potential for organization.
Image: A detailed close-up of the hydraulic piston mechanism attached to the open lid of the Keter 12-922631 storage box. This shows the component responsible for the smooth and assisted opening and closing of the lid.
4. Maintenance
The Keter 12-922631 outdoor storage box is designed for minimal maintenance due to its durable polypropylene resin construction and UV treatment.
Cleaning:
- To clean the storage box, simply wipe it down with a damp cloth and mild soap.
- Avoid using abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the resin surface.
- Rinse thoroughly with water after cleaning to remove any soap residue.
General Care:
- Periodically check the hinges and locking mechanism for smooth operation. Lubricate with a silicone-based spray if necessary.
- Ensure the box is placed on a level surface to prevent warping or misalignment of doors and lid over time.
- While weather-resistant, prolonged exposure to extreme conditions (e.g., heavy snow loads) may require clearing the lid to prevent excessive stress.
Image: The Keter 12-922631 outdoor storage box in its closed state, positioned on a modern patio alongside outdoor seating and greenery. This demonstrates its aesthetic integration into a garden or outdoor living space.
5. Troubleshooting
This section addresses common issues you might encounter with your Keter 12-922631 outdoor storage box.
| Problem | Possible Cause | Solution |
|---|---|---|
| Lid does not close properly or is misaligned. | Hinges are bent or misaligned; uneven surface; obstruction. | Check hinges for damage or bending. Ensure the box is on a level surface. Remove any items obstructing the lid's path. Avoid forcing the lid if it resists closing to prevent hinge damage. |
| Front doors do not close or latch correctly. | Misalignment during assembly; uneven surface; obstruction. | Verify that the box is on a level surface. Check door hinges and ensure they are securely fastened. Inspect for any items inside the box that might be preventing the doors from closing fully. |
| Water accumulation inside the box. | Lid or doors not fully closed; damaged seals; extreme weather conditions. | Ensure the lid and doors are completely closed and latched. Inspect the seals around the openings for any damage. While the box is waterproof, heavy, prolonged rain or standing water may test its limits. |
| Hydraulic pistons not assisting lid opening/closing. | Pistons are damaged or incorrectly installed. | Check that the pistons are securely attached at both ends. If damaged, contact customer support for replacement parts. |
6. Specifications
| Model Number | 12-922631 (also referred to as 17199415) |
| Brand | Keter |
| Material | Polypropylene Resin |
| Color | Beige / Light Brown (Marron) |
| External Dimensions (L x W x H) | 57.48 cm x 47.24 cm x 32.28 cm (approx. 22.6 x 18.6 x 12.7 inches) |
| Product Dimensions (L x W x H) | 57.5 cm x 32.3 cm x 47.2 cm (as per some specifications) |
| Weight | 23 Kilograms (approx. 50.7 lbs) |
| Storage Capacity | 1200 Liters (approx. 317 US gallons) |
| Water Resistance Level | Waterproof |
| Special Features | Lockable, UV-treated, Maintenance-free, Double door and lid opening with pistons |
| UPC | 072901069226 |
7. Warranty and Support
Warranty Information:
The Keter 12-922631 outdoor storage box comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service conditions. Please retain your proof of purchase for any warranty claims.
Customer Support:
For technical assistance, missing parts, or warranty claims, please contact Keter customer service. Refer to the contact information provided in your product packaging or visit the official Keter website for support details.
Additionally, a safety information document (PDF) is available for download. You can access it via this link: Safety Information (PDF).
