1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Bussmann AMI-125 Bolt-On Fuse. This fuse is designed for power distribution protection in industrial, commercial, and automotive applications. Please read this manual thoroughly before installation or use.
2. Safety Information
WARNING: Electrical shock hazard. Always disconnect power before installing or servicing fuses. Only qualified personnel should perform installation and maintenance.
- Ensure the power source is completely de-energized before handling the fuse.
- Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
- Verify the fuse rating matches the circuit requirements. Using an incorrect fuse rating can lead to equipment damage or fire.
- Do not bypass or tamper with fuses.
3. Product Description
The Bussmann AMI-125 is a 125 Amp bolt-on fuse engineered for robust power distribution protection. It is designed to interrupt overcurrents, safeguarding electrical systems and components from damage. This fuse features a bolt-on mounting type for secure and reliable connection within a circuit. It is rated for up to 1000A interrupting rating (Ir) at 32Vdc.

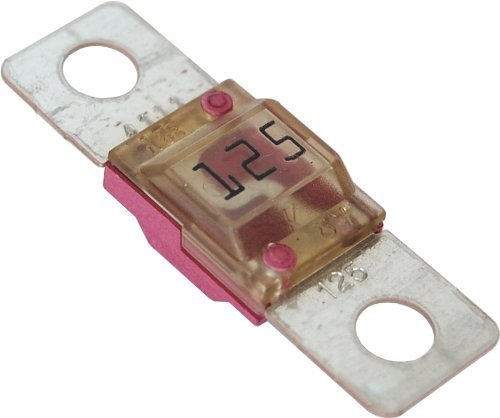

Image: Bussmann AMI-125 Bolt-On Fuse. This image displays the fuse, highlighting its bolt-on terminals and compact design, suitable for various electrical protection applications.
4. Specifications
| Specification | Value |
|---|---|
| Model | BK/AMI-125 |
| Brand | Bussmann (Cooper Bussmann) |
| Maximum Current Rating | 125 Amps |
| Voltage Rating | 32 Volts DC |
| Interrupting Rating (Ir) | Up to 1000A |
| Mounting Type | Bolt-On Mount |
| Material | Copper |
| Dimensions (L x W x H) | 10 x 11 x 2 inches (approximate) |
5. Setup and Installation
- Power Disconnection: Before beginning any installation, ensure that all power to the circuit where the fuse will be installed is completely disconnected and locked out. Verify with a multimeter.
- Fuse Holder Preparation: Ensure the fuse holder or bus bar connections are clean, free of corrosion, and properly sized for the AMI-125 fuse.
- Mounting: Position the AMI-125 fuse onto the designated bolt-on terminals. Ensure proper alignment.
- Secure Connections: Use appropriate bolts, washers, and nuts to securely fasten the fuse to the terminals. Tighten connections to the manufacturer's recommended torque specifications to prevent loose connections and overheating.
- Verification: Double-check all connections for tightness and correct polarity (if applicable).
- Power Restoration: Once installation is complete and verified, restore power to the circuit.
It is highly recommended that installation be performed by a qualified electrician or technician.
6. Operation
The Bussmann AMI-125 fuse operates passively as a protective device. When an overcurrent condition (current exceeding 125 Amps) occurs in the circuit, the fuse element within the AMI-125 will melt, creating an open circuit and interrupting the flow of electricity. This action protects downstream components and wiring from damage due to excessive current.
7. Maintenance
- Regular Inspection: Periodically inspect the fuse and its connections for any signs of physical damage, discoloration, or loose connections.
- Cleaning: Keep the fuse and its surrounding area clean and free of dust or debris.
- Replacement: If the fuse has blown (indicated by a visible break in the element or a continuity test), it must be replaced with an identical Bussmann AMI-125 fuse. Never replace a fuse with one of a different rating.
8. Troubleshooting
If a circuit protected by the AMI-125 fuse loses power, the fuse may have blown due to an overcurrent condition. Follow these steps:
- Disconnect Power: Immediately disconnect all power to the affected circuit.
- Inspect Fuse: Visually inspect the AMI-125 fuse for a broken element. If unsure, use a multimeter to check for continuity across the fuse terminals. A blown fuse will show infinite resistance (open circuit).
- Identify Cause: Before replacing the fuse, investigate the cause of the overcurrent. Common causes include short circuits, overloaded circuits, or faulty equipment. Address and rectify the underlying issue.
- Replace Fuse: Replace the blown fuse with a new Bussmann AMI-125 fuse. Do not use a fuse with a higher current rating.
- Restore Power: Once the cause is resolved and the new fuse is installed, restore power to the circuit and monitor for proper operation.
9. Warranty Information
For warranty details regarding the Bussmann AMI-125 fuse, please refer to the official Bussmann (Eaton) website or contact their customer support directly. Warranty terms typically cover manufacturing defects under normal use conditions.
10. Support and Contact Information
For technical assistance, product inquiries, or further support, please visit the official Bussmann website or contact their customer service department. Contact information can typically be found on the manufacturer's website or product packaging.
Manufacturer: Cooper Bussmann
