1. Introduction
This manual provides essential information for the safe and efficient operation of your HENDI 225448 GN 1/1 Sous Vide Cooker. Please read all instructions carefully before use and retain this manual for future reference.
1.1. Safety Warnings
- This appliance is designed for commercial use only and is not intended for domestic applications.
- Always ensure sufficient free space around the appliance for proper ventilation.
- Always operate the unit with water. Never run dry.
- Do not immerse the appliance in water or other liquids.
- Keep out of reach of children and unauthorized personnel.
- Disconnect from power supply before cleaning or maintenance.
2. Product Overview
The HENDI 225448 Sous Vide Cooker is a precision cooking system designed for professional kitchens. It allows for precise temperature control to cook vacuum-sealed food, ensuring consistent, high-quality results.
Figure 1: Front view of the HENDI 225448 Sous Vide Cooker, showing the stainless steel housing, digital display, and control panel.
2.1. Components
- Stainless Steel Housing: Durable and easy to clean.
- Precision Thermostat: Adjustable from 35°C to 90°C with 0.1°C accuracy.
- Silicone-Sealed Lid: Ensures air and water-tight closure for efficient cooking.
- Carrying Handles: For safe transport of the unit.
- Drain Tap: For convenient water drainage.
- Stainless Steel Spacers (6 included): To separate food pouches during cooking.
- Control Panel: Touch controls for temperature and timer settings.
Figure 2: Exploded view of the Sous Vide Cooker, illustrating the removable lid, the stainless steel food rack (spacers), and the main water bath unit.
3. Setup
3.1. Unpacking and Placement
- Carefully remove the appliance and all accessories from the packaging.
- Place the cooker on a stable, level, and heat-resistant surface.
- Ensure adequate ventilation around the unit. Maintain at least 10 cm (4 inches) of clear space on all sides.
3.2. Initial Cleaning
Before first use, clean the interior of the water bath and all accessories (lid, spacers) with warm soapy water. Rinse thoroughly and dry completely.
3.3. Filling with Water
Fill the water bath with clean water up to the indicated maximum fill line. Do not overfill. Ensure the heating element is fully submerged.
3.4. Power Connection
Connect the power plug to a grounded electrical outlet. The display should illuminate.
4. Operating Instructions
4.1. Setting Temperature and Time
- Press the power button to turn on the appliance.
- Use the temperature control buttons (usually '+' and '-') to set the desired cooking temperature. The temperature can be set between 35°C and 90°C in 0.1°C increments.
- Use the timer control buttons to set the desired cooking duration.
- Press the start button to begin heating the water. The display will show the current water temperature.
4.2. Loading Food
Once the water reaches the set temperature, carefully place your vacuum-sealed food pouches into the water bath. Use the included stainless steel spacers to keep the pouches submerged and separated for even cooking.

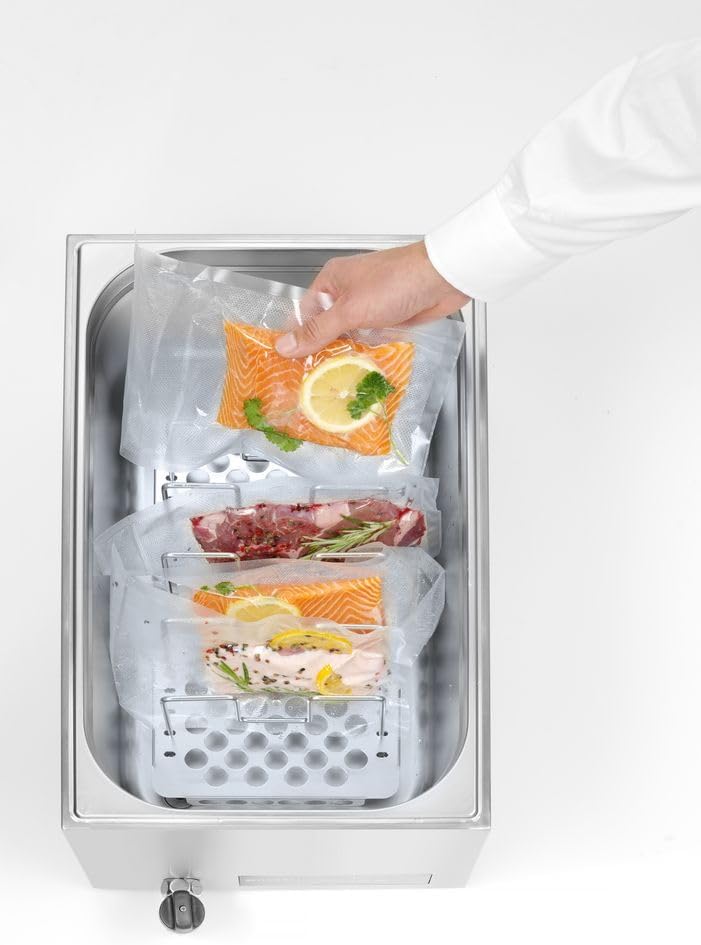

Figure 3: Placing vacuum-sealed food into the water bath. Ensure food is fully submerged and separated by the rack.
4.3. Cooking Process
Close the lid securely. The appliance will maintain the set temperature for the programmed duration. Monitor the cooking process as needed. The lid's silicone seal helps maintain temperature and prevent evaporation.
Figure 4: A single vacuum-sealed food pouch being carefully lowered into the sous vide cooker.
4.4. Draining Water
After cooking, turn off the appliance and allow the water to cool slightly. Use the drain tap located on the front of the unit to safely empty the water into a suitable container or drain.
5. Maintenance
5.1. Cleaning
- Always unplug the appliance and allow it to cool completely before cleaning.
- Drain all water from the unit using the drain tap.
- Remove the lid and stainless steel spacers. Wash them with warm soapy water, rinse, and dry.
- Clean the interior of the water bath with a soft cloth and mild detergent. For stubborn stains or mineral deposits, use a descaling solution suitable for stainless steel, following the product instructions.
- Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners or scouring pads, as these can damage the stainless steel finish.
- Ensure all parts are completely dry before reassembly or storage.
5.2. Storage
Store the clean and dry appliance in a cool, dry place, away from direct sunlight and moisture. Keep the lid and spacers with the unit.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | No power supply. | Check power cord connection and wall outlet. Ensure the power switch is ON. |
| Water is not heating. | Temperature not set or start button not pressed. Insufficient water level. | Verify temperature setting and press start. Ensure water level is above the minimum mark. |
| Temperature fluctuates significantly. | Lid not properly sealed. Appliance placed in a drafty area. | Ensure lid is securely closed. Relocate the appliance to an area free from drafts. |
| Water drains slowly. | Drain tap clogged. | Ensure the drain tap is fully open. Check for any obstructions and clean if necessary. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 225448 |
| Brand | HENDI |
| Capacity | 20 Liters |
| Power | 600 Watts |
| Voltage | 230 V |
| Temperature Range | 35°C to 90°C |
| Control Method | Touch |
| Material | Stainless Steel |
| Dimensions (L x W x H) | 68 x 35 x 27.5 cm |
| Item Weight | 11.21 Kilograms |
| Country of Origin | China |
8. Product Video
An official product overview video for the HENDI 225448 Sous Vide Cooker is available. This video demonstrates the key features and operational aspects of the appliance.
Video: Overview of the HENDI 225448 GN 1/1 Sous Vide Cooker, demonstrating its features and use.
9. Warranty and Support
This HENDI appliance is a commercial product and is not intended for domestic use. Warranty terms and conditions apply as per commercial sales agreements. For specific warranty details, technical support, or service inquiries, please contact your HENDI distributor or visit the official HENDI website.
HENDI BV
Website: www.hendi.eu
Contact information may vary by region.
