Introduction
This manual provides essential information for the safe and correct installation, usage, and maintenance of your De Dietrich Oven Handle, model 77X2761. Please read these instructions thoroughly before proceeding with installation or use. Keep this manual for future reference.
Safety Information
Always prioritize safety when working with appliances. Disconnect power to the oven before attempting any installation or maintenance. Wear appropriate personal protective equipment, such as gloves, if necessary. If you are unsure about any step, consult a qualified technician.
- Ensure the oven is completely cool before handling any parts.
- Turn off the electrical supply to the oven at the circuit breaker before beginning work.
- Handle the new part carefully to avoid damage or injury.
- Dispose of old parts responsibly.
Setup and Installation
This section guides you through the process of replacing your oven handle.
Tools Required:
- Screwdriver (appropriate type for your oven's handle screws)
- Gloves (recommended)
Installation Steps:
- Prepare the Oven: Ensure the oven is turned off and completely cool. Disconnect the oven from its power supply at the main circuit breaker.
- Remove Old Handle: Locate the screws securing the existing handle to the oven door. These are typically found on the inside edge of the oven door or at the ends of the handle mounts. Carefully unscrew them.
- Detach Old Handle: Once the screws are removed, gently pull the old handle away from the oven door. It may require a slight wiggle to free it from its mounting points.
- Inspect Mounting Points: Clean any debris or residue from the handle mounting points on the oven door.
- Position New Handle: Align the new De Dietrich Oven Handle (Model 77X2761) with the mounting holes on the oven door.
- Secure New Handle: Insert the screws through the handle and into the mounting holes. Tighten the screws firmly but do not overtighten, as this could damage the handle or door.
- Test Handle: Gently pull on the new handle to ensure it is securely attached and does not wobble.
- Restore Power: Reconnect the oven to its power supply at the circuit breaker.
Usage
The De Dietrich Oven Handle is designed for opening and closing your oven door. To ensure its longevity and proper function:
- Always use the handle for its intended purpose.
- Avoid applying excessive force or hanging objects from the handle.
- Ensure your hands are clean and dry when operating the handle to prevent slipping or transferring grease.
Maintenance
Regular cleaning and inspection will help maintain the appearance and functionality of your oven handle.
- Cleaning: Wipe the handle regularly with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, as these can damage the finish.
- Inspection: Periodically check the handle for any signs of looseness or damage. If the handle feels loose, gently tighten the mounting screws (ensure power is disconnected first).
Troubleshooting
If you encounter issues with your oven handle, refer to the following common problems and solutions:
- Handle is Loose:
Solution: Disconnect power to the oven. Locate the mounting screws and gently tighten them. Do not overtighten. If the screws are stripped or the mounting points are damaged, the handle or door may require professional repair or replacement. - Handle is Damaged (Cracked/Broken):
Solution: A damaged handle cannot be repaired and must be replaced. Ensure you purchase an original De Dietrich replacement part, such as model 77X2761, for proper fit and safety.
For issues not covered here, please contact customer support.

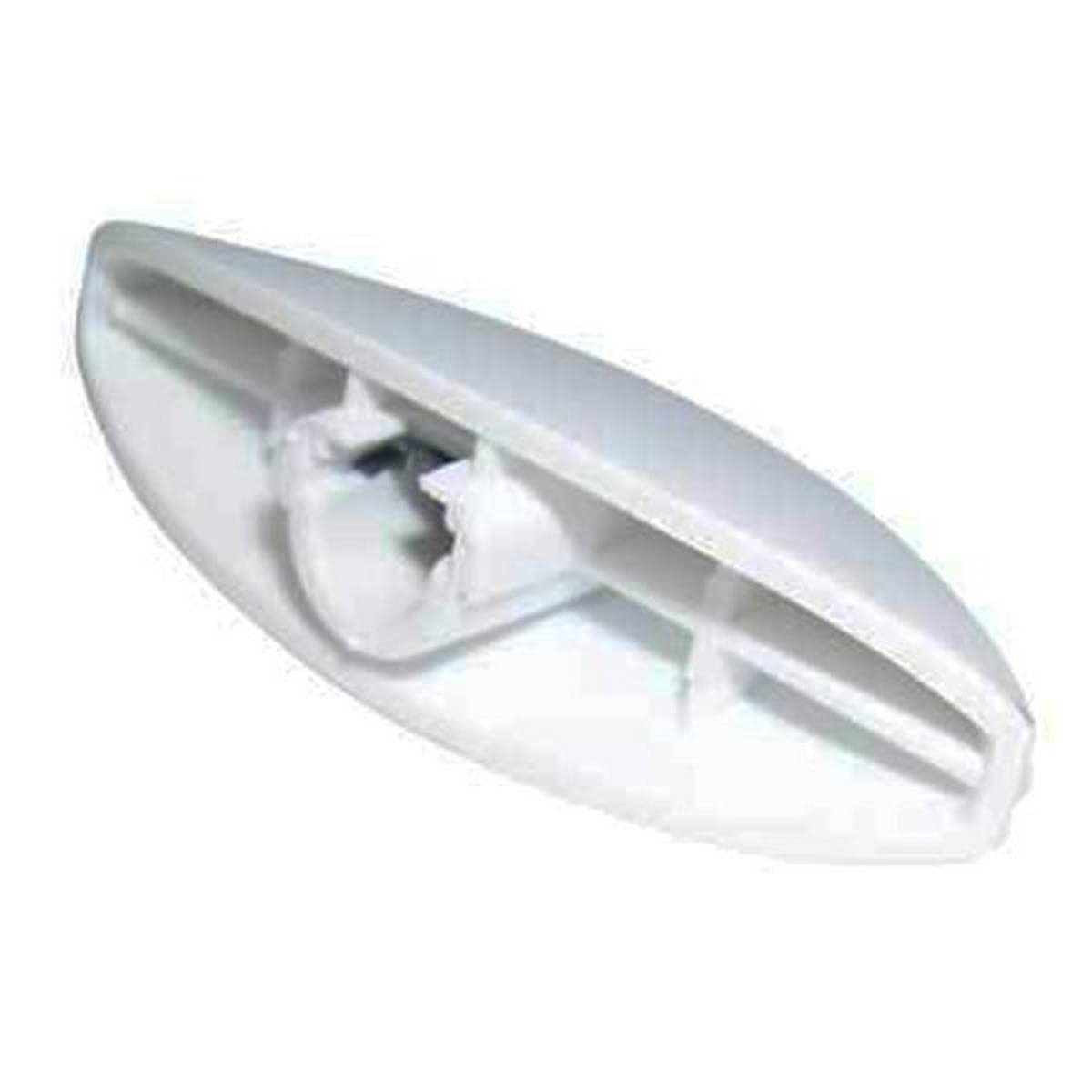

Specifications
- Brand: De Dietrich
- Model Number: 77X2761
- Product Type: Oven Handle
- Color: White
- Approximate Length: 5.2 cm
- Weight: Approximately 70 g
- Compatible Oven Models (Partial List): FW5417E11, FW5447C1, FW5447E1, FW5447H1, FW5447S1, FW5847E1, FW5847H2, FW6449C1, FW6449E1, FW6449H1, H222BPB1, BFW54447E2. For a complete list, refer to your oven's documentation or contact De Dietrich customer support.
Warranty Information
This De Dietrich oven handle is covered by the manufacturer's standard warranty. Please refer to the warranty documentation provided with your original oven purchase or visit the official De Dietrich website for detailed terms and conditions. Keep your proof of purchase for warranty claims.
Customer Support
For further assistance, technical support, or to inquire about other genuine De Dietrich replacement parts, please contact De Dietrich customer service through their official website or the contact information provided with your appliance.
Website: www.dedietrich.com (Please check for your regional website)
Phone: Refer to your regional De Dietrich support contact details.
