HSM Classic 90.2

HSM Classic 90.2 Cross Cut Paper Shredder User Manual

Model: HSM Classic 90.2 (SHDESM90CC)

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of your HSM Classic 90.2 Cross Cut Paper Shredder. Please read this manual thoroughly before using the device and retain it for future reference.

2. Important Safety Instructions

To reduce the risk of injury or damage, always follow basic safety precautions when using this product.

  • Keep hands, hair, loose clothing, ties, and jewelry away from the paper entry slot.
  • Do not allow children or pets near the shredder.
  • Unplug the shredder when not in use or before cleaning, moving, or emptying the waste bin.
  • Do not shred metal objects, large paper clips, or adhesive labels. Small staples and paper clips may be shredded, but it is recommended to remove them to prolong blade life.
  • Do not spray aerosols or lubricants into the shredder.
  • Operate the shredder on a flat, stable surface.
  • Do not operate if the power cord is damaged.

3. Package Contents

Verify that all items are present in the package:

  • HSM Classic 90.2 Shredder Unit
  • Waste Bin
  • Power Cord
  • User Manual (this document)

4. Setup

  1. Unpack the Shredder: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
  2. Position the Waste Bin: Place the shredder head securely onto the provided waste bin. Ensure it is seated correctly to activate the safety switch (if applicable).

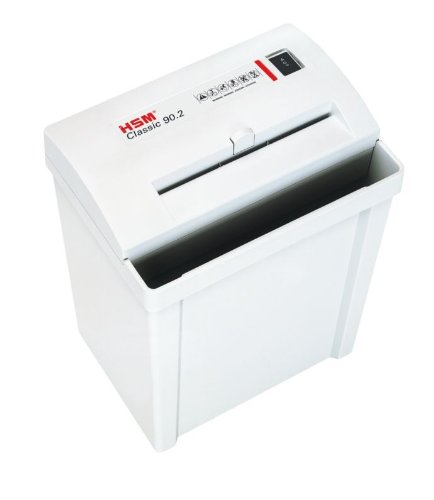

    HSM Classic 90.2 shredder head placed on top of its waste bin, viewed from an angle.

    Image 1: HSM Classic 90.2 shredder with head properly seated on the waste bin. This shows the complete unit ready for operation.

  3. Connect Power: Plug the power cord into the shredder's power inlet, then into a standard electrical outlet.

5. Operating Instructions

  1. Power On: Locate the power switch on the shredder head. Set it to the "ON" or "AUTO" position. The shredder is now ready for use.

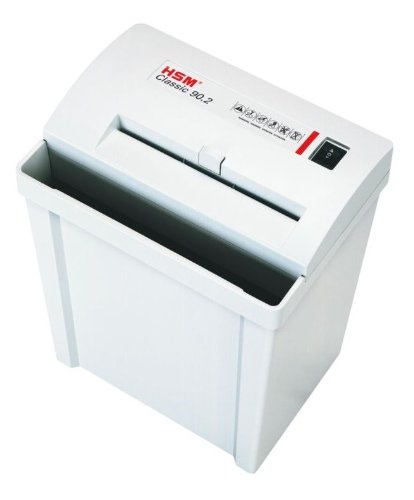

    Top view of the HSM Classic 90.2 paper shredder, showing the paper entry slot and the power switch in the 'OFF' position.

    Image 2: Top view of the shredder, highlighting the paper entry and control switch. The switch is typically located near the paper entry.

  2. Shredding Documents: Insert paper into the paper entry slot. The shredder will automatically start when paper is detected and stop once shredding is complete. Do not exceed the maximum sheet capacity (refer to specifications).
    HSM Classic 90.2 paper shredder actively shredding multiple sheets of paper, showing the paper being fed into the slot.

    Image 3: Paper being fed into the shredder. This illustrates the correct method for inserting documents for shredding.

  3. Emptying the Waste Bin: When the waste bin is full, the shredder may stop operating. Unplug the shredder, carefully lift the shredder head off the bin, empty the shredded material, and then replace the head securely.
  4. Power Off: When finished shredding, set the power switch to the "OFF" position and unplug the unit from the power outlet.

6. Maintenance

  • Shredder Oiling: For optimal performance and longevity of cross-cut shredders, regular oiling is recommended. Apply shredder oil (specifically designed for paper shredders) across the paper entry slot. Run a few sheets of paper through the shredder immediately after oiling to distribute the lubricant. Refer to the shredder oil product instructions for frequency.
  • Cleaning: Unplug the shredder before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
  • Clearing Paper Jams: If a paper jam occurs, switch the shredder to the "REV" (reverse) position to attempt to clear the paper. If unsuccessful, unplug the shredder and carefully remove the jammed paper manually. Exercise extreme caution to avoid injury.

7. Troubleshooting

ProblemPossible CauseSolution
Shredder does not turn on.
  • Power cord not plugged in.
  • Waste bin not properly seated.
  • Overheat protection activated.
  • Ensure power cord is securely plugged into outlet and shredder.
  • Re-seat the shredder head onto the waste bin.
  • Allow the shredder to cool down for 20-30 minutes.
Paper jam.
  • Too much paper inserted.
  • Paper not inserted straight.
  • Switch to "REV" (reverse) to clear.
  • If "REV" fails, unplug and manually remove paper.
  • Reduce paper quantity for future shredding.
Shredder runs continuously.
  • Sensor obstructed.
  • Unplug and clean the paper entry sensor area.

8. Specifications

  • Brand: HSM
  • Model: Classic 90.2
  • Model Number: SHDESM90CC
  • Cut Type: Cross Cut
  • Security Level: P-4 & F-1 (according to DIN 66399)
  • Operation Mode: Automatic
  • Product Dimensions (LxWxH): 30.5 x 23.5 x 41.9 cm (approx. 12 x 9.25 x 16.5 inches)
  • UPC: 633726615823

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official HSM website or contact your local authorized dealer. Keep your purchase receipt as proof of purchase.
