ABSAAR AB3400-100 400W Power Inverter User Manual

Model: AB3400-100

1. Product Overview

The ABSAAR AB3400-100 is a 400-watt power inverter designed to convert 12V DC power from your vehicle's battery into 230V AC household power. This allows you to operate or charge various electronic devices, such as mobile phones, laptops, or small refrigerators, directly from your car's cigarette lighter socket.

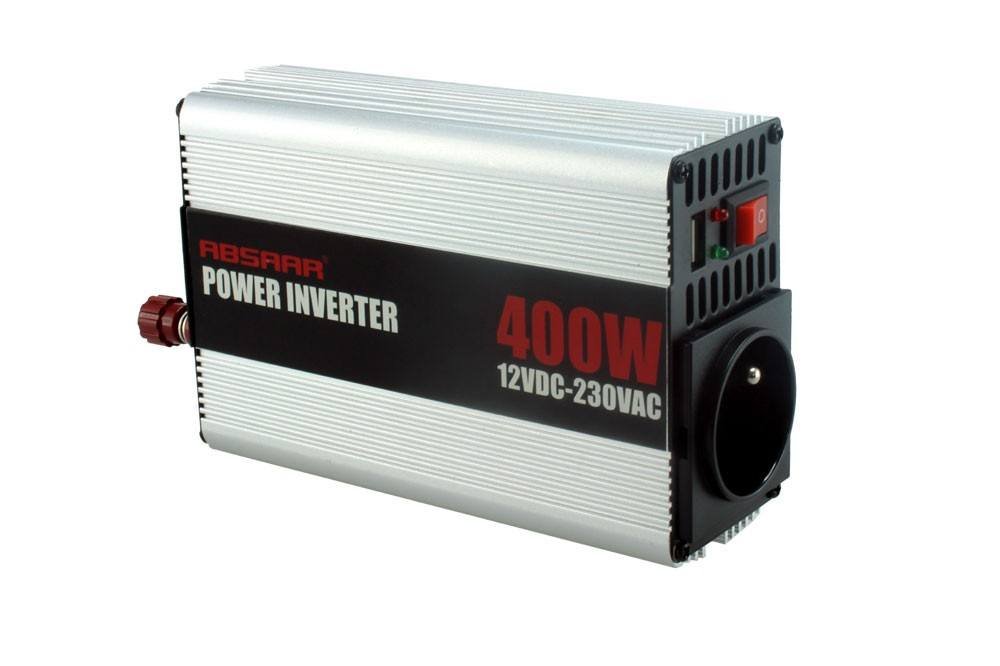

ABSAAR AB3400-100 400W Power Inverter

Image 1.1: ABSAAR AB3400-100 400W Power Inverter. This image shows the compact design of the inverter, typically featuring a 12V plug for the car's cigarette lighter and one or more 230V AC outlets.

2. Safety Instructions

Read all safety instructions carefully before operating the inverter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • Ventilation: Ensure the inverter is placed in a well-ventilated area. Do not cover the ventilation openings. Overheating can cause the unit to shut down or be damaged.
  • Moisture: Do not expose the inverter to rain, moisture, or water.
  • Flammable Materials: Do not operate the inverter near flammable liquids, gases, or materials.
  • Power Rating: Do not exceed the inverter's maximum continuous power output of 400 watts. Overloading can trigger the thermal shutdown protection or damage the unit.
  • Connection: Connect the inverter only to a 12V DC power source. Ensure the vehicle's engine is running when using high-power devices to prevent draining the vehicle battery.
  • Children: Keep the inverter out of reach of children.
  • Disassembly: Do not attempt to disassemble or modify the inverter. There are no user-serviceable parts inside.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

  • ABSAAR AB3400-100 400W Power Inverter
  • User Manual (this document)

4. Setup

  1. Placement: Choose a dry, well-ventilated location for the inverter, away from direct sunlight, heat sources, and moisture. Ensure there is sufficient space around the unit for air circulation.
  2. Vehicle Connection: Insert the 12V DC plug of the inverter firmly into your vehicle's cigarette lighter socket. Ensure a secure connection.
  3. Power On: If your vehicle's cigarette lighter socket is switched, turn on the vehicle's ignition or start the engine. For optimal performance and to prevent battery drain, it is recommended to keep the vehicle's engine running when using the inverter, especially with higher power loads.

5. Operating Instructions

  1. Connect Devices: Once the inverter is powered on, plug your 230V AC device(s) into the AC outlet(s) on the inverter.
  2. Monitor Load: Ensure the total power consumption of all connected devices does not exceed 400 watts. Exceeding this limit will trigger the inverter's overload protection, causing it to shut down.
  3. Power Indicators: The inverter typically features an LED indicator. A green light usually indicates normal operation, while a red light or flashing light may indicate a fault (e.g., overload, low battery, overheating). Refer to the troubleshooting section for specific indicator meanings.
  4. Disconnecting: When finished, turn off all connected devices, then unplug them from the inverter. Finally, remove the inverter's 12V DC plug from the vehicle's cigarette lighter socket.

6. Maintenance

  • Cleaning: Disconnect the inverter from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or solvents.
  • Storage: Store the inverter in a cool, dry place when not in use. Keep it away from direct sunlight and extreme temperatures.
  • Inspection: Periodically inspect the power cord and plug for any signs of damage. Do not use the inverter if any part is damaged.

7. Troubleshooting

Problem Possible Cause Solution
Inverter does not turn on / No power output
  • Loose connection to cigarette lighter.
  • Vehicle's cigarette lighter fuse blown.
  • Vehicle battery voltage too low.
  • Inverter's internal fuse blown (not user-serviceable).
  • Ensure the 12V plug is fully inserted.
  • Check and replace the vehicle's cigarette lighter fuse if necessary.
  • Start the vehicle's engine to charge the battery.
  • Contact customer support if the inverter is still not working.
Inverter shuts down during operation (thermal cut-off / overload)
  • Overload (connected devices exceed 400W).
  • Poor ventilation / Overheating.
  • Disconnect some devices to reduce the load.
  • Ensure the inverter is in a well-ventilated area and its vents are clear. Allow it to cool down before restarting.
Connected device not charging/operating
  • Device requires more power than 400W.
  • Device is faulty.
  • Inverter is in fault mode (e.g., low battery, overload).
  • Check the power requirements of your device.
  • Test the device with a standard wall outlet.
  • Refer to other troubleshooting steps for inverter power issues.

8. Specifications

Brand Absaar
Model Number AB3400-100
Input Voltage 12V DC (via cigarette lighter)
Output Voltage 230V AC
Continuous Output Power 400 Watts
Weight 0.9 kg (approximately 1.98 lbs)
Color Grey

9. Warranty and Support

For warranty information, technical support, or service inquiries regarding your ABSAAR AB3400-100 Power Inverter, please refer to the official ABSAAR website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, you may visit the Absaar Official Website (link provided as an example, actual link may vary).
