Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Bussmann LPS-RK-450SP Low-Peak Fuse. This fuse is a dual-element, time-delay, current-limiting device designed for superior overcurrent protection in various electrical systems. Please read this manual thoroughly before installation or operation.

2. Safety Information

WARNING: Electrical shock hazard. Improper installation or use can result in serious injury or death. Always follow local electrical codes and safety regulations.

• Installation and maintenance should only be performed by qualified electrical personnel.
• Always de-energize the circuit and verify zero voltage before installing, removing, or inspecting fuses.
• Use appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
• Never bypass or tamper with fuses.
• Ensure the replacement fuse has the correct voltage, amperage, and interrupting rating for the application.

3. Product Overview

The Bussmann LPS-RK-450SP is a Class RK1 Low-Peak fuse, featuring a dual-element, time-delay design. This design provides excellent protection for motors and transformers, allowing for temporary overloads without nuisance tripping, while still offering fast-acting short-circuit protection. It is rated for 600 Volts and 450 Amps.

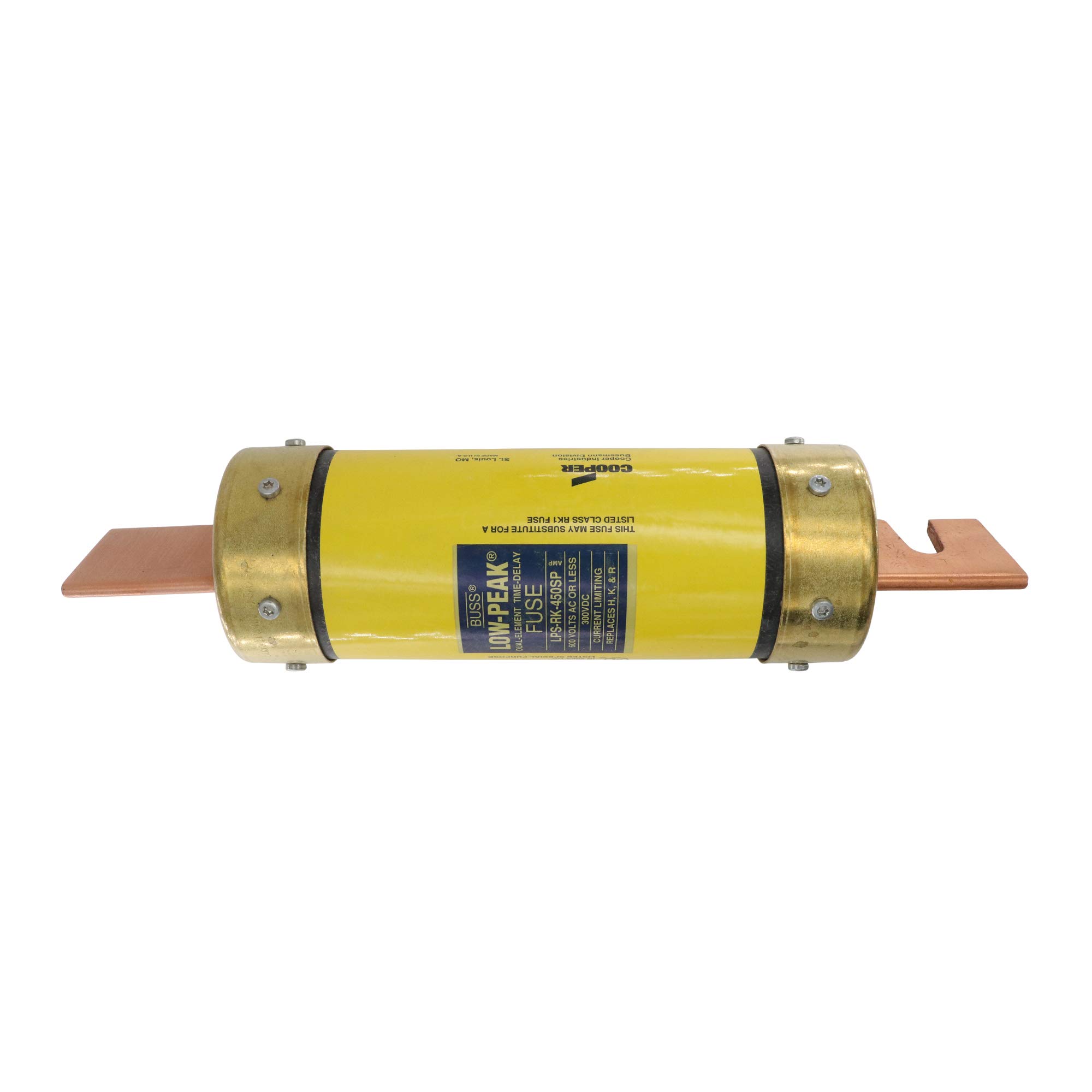

Image: A Bussmann LPS-RK-450SP Low-Peak Fuse. The fuse has a yellow cylindrical body with brass end caps and copper blade terminals extending from one end. Markings on the label indicate 'LOW-PEAK FUSE', 'LPS-RK-450SP', '600 VOLT', and 'CURRENT LIMITING'.

4. Installation Instructions

Proper installation is crucial for the safe and effective operation of the fuse. Always ensure the circuit is de-energized before proceeding.

1. De-energize Circuit: Turn off all power to the circuit where the fuse will be installed. Use a voltage tester to confirm that the circuit is completely de-energized.
2. Select Correct Fuse: Verify that the Bussmann LPS-RK-450SP fuse matches the required voltage, amperage, and interrupting rating for your application.
3. Install Fuse: Carefully insert the fuse into the appropriate fuse holder or disconnect switch. Ensure the blade terminals make secure contact.
4. Secure Connections: If applicable, tighten any screws or clamps on the fuse holder to ensure a firm electrical connection.
5. Re-energize Circuit: Once the fuse is securely installed and all safety checks are complete, restore power to the circuit.

5. Operation

The Bussmann LPS-RK-450SP fuse operates by providing overcurrent protection. In normal operation, current flows through the fuse without interruption. If an overcurrent condition occurs (either a sustained overload or a short circuit), the fuse's internal elements will melt, opening the circuit and preventing damage to equipment or hazards to personnel. The time-delay characteristic allows for temporary inrush currents (e.g., motor starting) without blowing, while the current-limiting feature rapidly clears high-level short circuits.

6. Maintenance

Fuses are generally maintenance-free devices. However, periodic inspection is recommended to ensure optimal performance and safety.

• Visual Inspection: Periodically inspect the fuse and its holder for any signs of physical damage, discoloration, or loose connections.
• Replacement: If a fuse blows, it must be replaced with a new fuse of the exact same type, voltage, and amperage rating. Never attempt to repair a blown fuse.
• Cleaning: Ensure fuse holders are clean and free of dust or debris to maintain good electrical contact.

7. Troubleshooting

If a fuse blows, it indicates an overcurrent condition in the circuit. Do not simply replace the fuse without investigating the cause.

• Repeated Blowing: If a fuse blows repeatedly, it suggests a persistent problem such as an overloaded circuit, a short circuit, or a faulty component. Consult a qualified electrician to diagnose and rectify the underlying issue.
• No Power: If a circuit loses power, check the fuse. If it is blown, replace it after identifying and correcting the cause of the overcurrent.
• Loose Connections: Ensure all connections to the fuse holder are tight. Loose connections can cause overheating and premature fuse failure.

8. Technical Specifications

9. Warranty and Support

For warranty information or technical support regarding your Bussmann LPS-RK-450SP Low-Peak Fuse, please refer to the official Bussmann website or contact their customer service department. Keep your purchase receipt for warranty claims.
