Dorman 615-715 Intake Manifold Gasket Kit Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation and maintenance of the Dorman 615-715 Intake Manifold Gasket Kit. This kit is designed as a direct replacement for original gaskets, restoring proper function to the intake manifold on specified vehicles. It is crucial to ensure compatibility with your vehicle before proceeding with installation.

Compatible Vehicles:

• Cadillac DeVille: 2000, 2001, 2002, 2003, 2004, 2005
• Cadillac Eldorado: 2000, 2001, 2002
• Cadillac Seville: 2000, 2001, 2002, 2003, 2004
• Oldsmobile Aurora: 2001, 2002, 2003
• Pontiac Bonneville: 2004, 2005

For precise fitment, consult your vehicle's service manual or use a vehicle compatibility tool.

Product Overview

The Dorman 615-715 Intake Manifold Gasket Kit includes all necessary gaskets to reseal the intake manifold. These components are manufactured from quality materials to ensure reliable performance and a long service life.

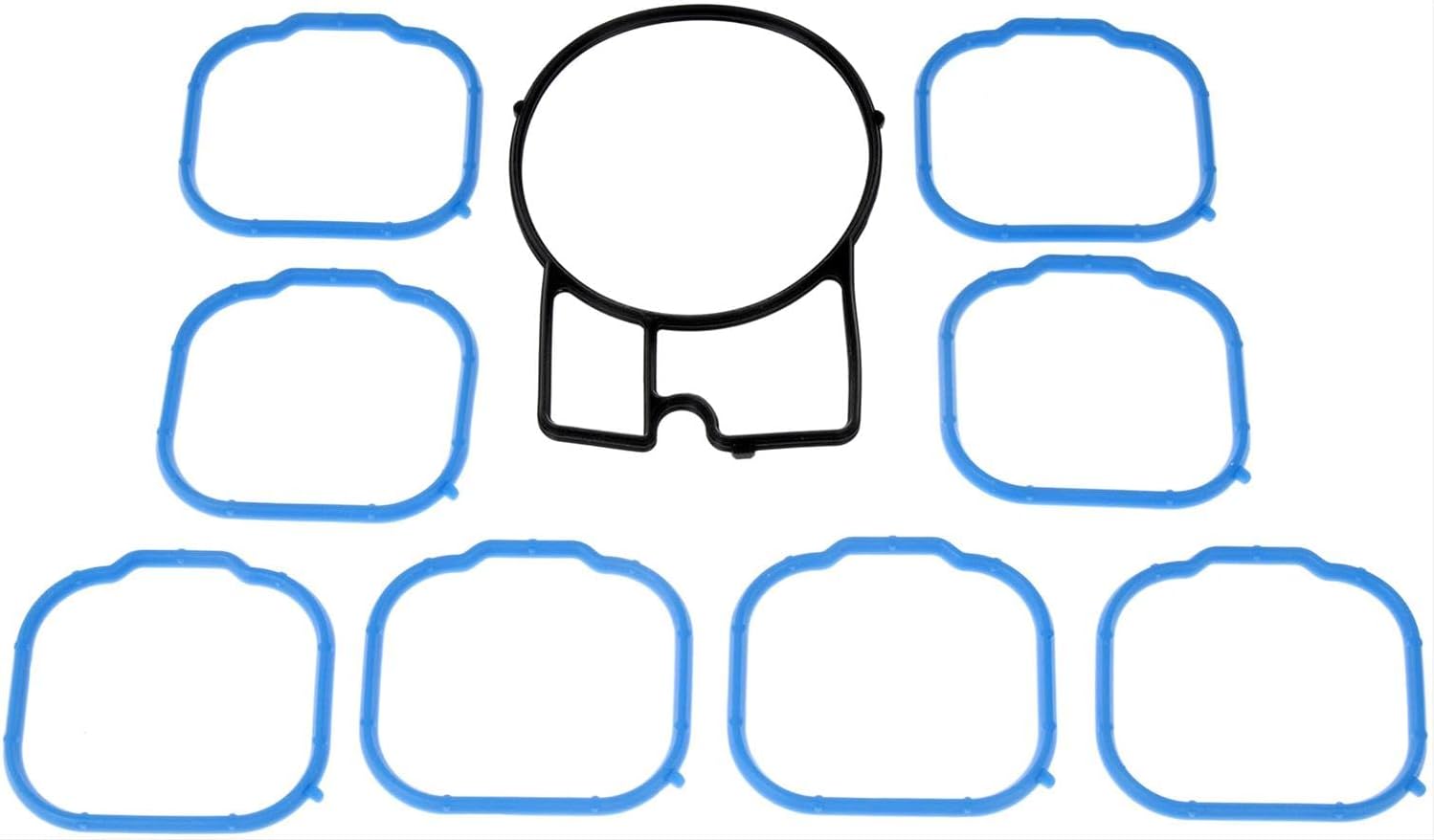

Image: Dorman 615-715 Intake Manifold Gasket Kit, featuring multiple blue-rimmed gaskets and one black circular gasket for sealing the intake manifold.

The intake manifold and valve cover are directly related components in the engine's PCV (Positive Crankcase Ventilation) system. A malfunction in one can impact the other, necessitating a thorough inspection of both during repair.

Installation and Inspection Guidelines

Proper installation of the intake manifold gasket kit is crucial for optimal engine performance and to prevent issues such as excessive oil consumption. The following guidelines are based on common issues found in General Motors 1.4L Ecotec engines, which this kit is designed for.

Understanding the PCV System Issue

The original equipment intake manifold design in some compatible vehicles can lead to the internal PCV valve becoming dislodged over time. This can result in excessive oil consumption due to blow-by and create excessive vacuum that may damage the PCV diaphragm in the valve cover.

Inspection Procedure

1. Inspect the Valve Cover:
   • Remove the PCV cap located on top of the valve cover.
   • Check the PCV diaphragm for any signs of damage, such as tears or missing sections. A damaged diaphragm indicates a need for replacement.
2. Inspect the Intake Manifold:
   • Look inside the intake runner for a small orange flap.
   • If this orange flap is missing, the intake manifold requires replacement.

Dorman's OE FIX Solution

Dorman's OE FIX intake manifold for this engine has been redesigned to include a retaining feature. This design improvement ensures that the PCV valve cannot become dislodged, addressing a common failure point in the original design.

Recommended Replacement Strategy

When diagnosing a problem with either the intake manifold or the valve cover, it is highly recommended to inspect both components. Replacing both the intake manifold and the valve cover simultaneously can save significant labor time, as the repair procedures are often similar. This approach helps prevent premature failure of newly installed parts by addressing the root cause of the problem comprehensively.

Operating Considerations

Once the Dorman 615-715 Intake Manifold Gasket Kit is installed, the engine should operate with restored efficiency and proper PCV system function. Monitor for any signs of oil consumption or vacuum leaks, especially after initial installation.

• Ensure all connections are secure and torqued to manufacturer specifications.
• Check for any vacuum leaks using appropriate diagnostic methods after installation.
• Regularly check engine oil levels as part of routine vehicle maintenance.

Maintenance

The Dorman 615-715 Intake Manifold Gasket Kit is designed for long-term durability. However, regular engine maintenance is essential to ensure its longevity and the overall health of your vehicle's engine.

• Adhere to your vehicle manufacturer's recommended service intervals for oil changes and engine inspections.
• Periodically inspect the intake manifold and valve cover area for any signs of leaks or damage, particularly if symptoms of PCV system issues (e.g., excessive oil consumption, rough idle) reappear.
• Address any engine warning lights promptly.

Troubleshooting Common Issues

If you experience issues after installing the Dorman 615-715 Intake Manifold Gasket Kit, consider the following troubleshooting steps:

• Excessive Oil Consumption: If oil consumption persists, re-inspect both the intake manifold and valve cover for proper installation and integrity of the PCV components. Ensure the Dorman OE FIX manifold was used if the original manifold's PCV valve was dislodged.
• Vacuum Leaks: Check all gasket surfaces and hose connections for proper sealing. A smoke test can help identify hard-to-find leaks.
• Engine Performance Issues (e.g., rough idle, misfires): These can be symptoms of vacuum leaks or PCV system malfunctions. Verify the integrity of the intake manifold and valve cover components.

For complex issues, professional automotive diagnosis is recommended.

Specifications

Warranty and Support

Dorman products are backed by a team of product experts and over a century of automotive experience, ensuring trustworthy quality. For specific warranty information or technical support, please refer to the official Dorman website or contact their customer service directly.
