Fasco 7002-2530 Upgraded Furnace Draft Inducer Exhaust Motor Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your Fasco 7002-2530 Upgraded Furnace Draft Inducer Exhaust Motor. Please read this manual thoroughly before attempting any procedures to ensure proper function and safety.

The Fasco 7002-2530 is designed to expel exhaust gases from the furnace, ensuring proper combustion and safe operation of your heating system.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect power to the furnace before performing any installation, maintenance, or service.
• Installation and servicing should be performed by a qualified HVAC technician.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation and maintenance.
• Ensure all electrical connections are secure and comply with local electrical codes.
• Do not operate the furnace if the draft inducer motor is damaged or not functioning correctly.

3. Product Overview

The Fasco 7002-2530 is an upgraded furnace draft inducer exhaust motor designed for reliable performance in HVAC systems. It plays a critical role in the safe operation of a furnace by drawing combustion gases out of the heat exchanger and venting them safely outside.

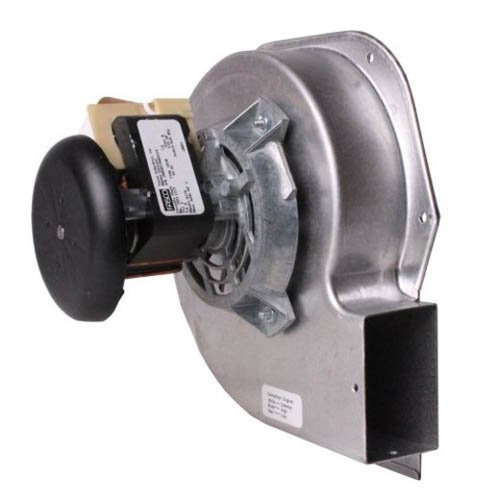

An image showing the Fasco 7002-2530 furnace draft inducer exhaust motor. The motor assembly is made of metal, with a black motor housing on the left and a metallic fan housing with an exhaust port on the right. The motor's label is visible on the black housing.

4. Specifications

5. Setup and Installation

IMPORTANT: Installation should only be performed by a qualified HVAC professional. Incorrect installation can lead to system malfunction, property damage, or personal injury.

1. Power Disconnection: Turn off all electrical power to the furnace at the main service panel before beginning any work.
2. Access the Inducer Motor: Locate and access the existing draft inducer motor within the furnace assembly. This may require removing access panels.
3. Disconnect Wiring and Ductwork: Carefully disconnect the electrical wiring and any attached ductwork or hoses from the old motor. Note the position of all connections for reassembly.
4. Remove Old Motor: Unbolt and remove the old draft inducer motor from its mounting bracket.
5. Install New Motor: Mount the Fasco 7002-2530 motor onto the furnace using the appropriate hardware. Ensure it is securely fastened.
6. Reconnect Wiring and Ductwork: Reconnect all electrical wiring, ensuring proper polarity and secure connections. Reattach any ductwork or hoses.
7. Verify Installation: Double-check all connections and mounting for security and correctness.
8. Restore Power: Restore electrical power to the furnace.
9. Test Operation: Initiate a heating cycle to verify the new inducer motor operates correctly and the furnace functions as expected. Check for any unusual noises or odors.

6. Operating Instructions

The Fasco 7002-2530 Draft Inducer Exhaust Motor operates automatically as part of your furnace system. When the thermostat calls for heat, the furnace control board activates the inducer motor. The motor creates a negative pressure (draft) to pull combustion air into the burner and then expels the exhaust gases safely out of the furnace and through the venting system.

No direct user interaction is required for the operation of the inducer motor itself. Its function is integral to the furnace's heating cycle.

7. Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your furnace and its components, including the draft inducer motor. It is recommended that a qualified HVAC technician perform annual furnace inspections and maintenance.

• Annual Inspection: Have a professional inspect the inducer motor for signs of wear, corrosion, or damage during routine furnace maintenance.
• Cleanliness: Ensure the area around the inducer motor and its exhaust path is free from obstructions, debris, or excessive dust buildup.
• Noise Check: Pay attention to any unusual noises coming from the motor, which could indicate a problem with bearings or the fan.
• Venting System: Ensure the furnace's venting system is clear and unobstructed, allowing the inducer motor to expel gases effectively.

8. Troubleshooting

If you experience issues with your furnace that you suspect are related to the draft inducer motor, consider the following common scenarios. Always disconnect power before inspecting components.

• Motor Not Starting:
  • Check if the furnace has power.
  • Verify electrical connections to the motor are secure.
  • A faulty control board or pressure switch could prevent the motor from receiving a signal to start.
• Unusual Noises (Grinding, Squealing):
  • Could indicate worn bearings in the motor.
  • Fan impeller may be obstructed or damaged.
• Furnace Not Igniting:
  • The draft inducer motor must reach a certain speed and activate a pressure switch before the furnace will allow ignition. If the motor is not working, or the pressure switch is faulty, the furnace will not ignite.
  • Check for blockages in the exhaust vent.

For any persistent issues or if you are unsure about diagnosing a problem, contact a qualified HVAC technician for professional assistance.

9. Warranty and Support

Warranty information for the Fasco 7002-2530 Upgraded Furnace Draft Inducer Exhaust Motor is typically provided by the manufacturer or the seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for specific warranty terms and conditions.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact the authorized Fasco dealer or the seller from whom you purchased the product.
