1. Important Safeguards
Please read and save these important safety instructions before using this humidifier. Failure to follow these instructions may result in electric shock, fire, or injury.
- Always place the humidifier on a firm, flat, level surface at least 12 inches (30 cm) away from walls and heat sources.
- Do not operate the humidifier without water in the tank.
- Do not use additives like essential oils or water treatment products in the water tank, as this may damage the unit and void the warranty.
- Unplug the humidifier from the power outlet before filling, cleaning, or performing any maintenance.
- Keep the power cord away from heated surfaces.
- Do not allow children to operate the humidifier without adult supervision.
- Do not immerse the base unit in water or other liquids.
2. Product Features
The Holmes HCM730-WUM Cool Mist Humidifier Tower is designed to provide comfortable humidity levels in your home. Key features include:
- Tower Space-Saving Design: Vertical orientation minimizes footprint.
- 36-Hour Run Time: Extended operation between refills.
- 1.2 Gallon Capacity: Sufficient water capacity for continuous use.
- LED Screen, Digital Humidistat, and Timer: For precise control and monitoring of humidity levels and operation time.
- Easy-to-Fill Carry Tank: Designed for convenient refilling.

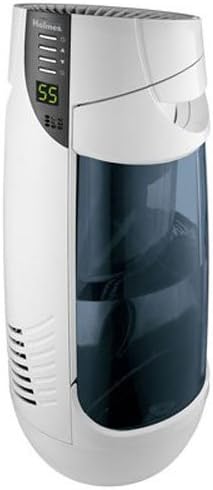

Image 1: Holmes HCM730-WUM Cool Mist Humidifier Tower. This image displays the full humidifier unit, highlighting its tower design, the control panel with an LED display showing '55', and the translucent blue water tank.
3. Setup and Operation
3.1 Unpacking and Placement
- Carefully remove the humidifier from its packaging.
- Place the unit on a firm, level, water-resistant surface. Ensure it is at least 12 inches (30 cm) from walls and furniture.
- Do not place the humidifier directly on carpet or finished floors.
3.2 Filling the Water Tank
- Ensure the humidifier is unplugged.
- Remove the water tank from the base.
- Unscrew the tank cap and fill the tank with cool, clean tap water. Do not overfill.
- Securely replace the tank cap.
- Place the filled water tank back onto the humidifier base, ensuring it is seated correctly.
3.3 Operating the Humidifier
- Plug the power cord into a 120V AC electrical outlet.
- Press the Power button to turn the unit on. The LED screen will illuminate.
- Adjusting Mist Output: Use the mist control buttons (usually indicated by '+' and '-' or fan icons) to select your desired mist level.
- Setting the Humidistat: Use the humidistat control buttons to set your desired humidity level. The unit will automatically turn on and off to maintain this level.
- Using the Timer: Press the Timer button to set the desired operating duration (e.g., 2, 4, 8 hours). The unit will automatically shut off after the set time.
- To turn off the humidifier, press the Power button again.
4. Maintenance
Regular maintenance ensures optimal performance and longevity of your humidifier.
4.1 Daily Maintenance
- Unplug the unit.
- Empty any remaining water from the tank and base.
- Rinse the water tank and base thoroughly with clean water.
- Allow all parts to air dry before reassembling or storing.
4.2 Weekly Maintenance (Cleaning and Descaling)
- Unplug the unit and remove the water tank.
- Pour 1 cup of undiluted white vinegar into the water tank and swish it around to coat all interior surfaces. Let it stand for 20 minutes.
- Empty the vinegar and rinse the tank thoroughly with clean water until the vinegar smell is gone.
- For the base, carefully pour white vinegar into the water reservoir, avoiding the control panel. Let it stand for 20 minutes.
- Drain the vinegar from the base and rinse thoroughly with clean water.
- Wipe the exterior surfaces with a soft, damp cloth.
4.3 Filter Replacement
The humidifier uses a wicking filter (type not specified, refer to product packaging for exact model). Filters should be replaced regularly, typically every 1-3 months, depending on water hardness and usage. A dirty filter can reduce mist output and efficiency.
- Unplug the humidifier.
- Remove the water tank and the filter tray/cover.
- Remove the old filter and dispose of it.
- Insert a new, genuine Holmes replacement filter into the filter tray.
- Reassemble the unit.
4.4 Storage
When storing the humidifier for an extended period, ensure all parts are clean and completely dry. Store in a cool, dry place.
5. Troubleshooting
If your humidifier is not operating as expected, consult the following guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power; Unit not plugged in; Water tank not seated correctly. | Check power outlet; Ensure plug is fully inserted; Re-seat water tank firmly. |
| No mist or low mist output | No water in tank; Dirty or clogged filter; Mineral buildup on components. | Refill water tank; Replace filter; Clean and descale the unit as per maintenance instructions. |
| Unusual noise (e.g., rattling, buzzing) | Unit not level; Fan obstruction; Mineral buildup. | Place on a level surface; Check for foreign objects; Clean the unit. If noise persists, contact customer service. |
| Water leakage | Tank cap not secured; Tank not seated properly; Crack in tank. | Ensure tank cap is tightly closed; Re-seat tank firmly; Inspect tank for damage and replace if necessary. |
6. Specifications
- Model Name: HCM730-WUM Cool Mist
- Brand: Jarden (Manufacturer: Holmes)
- Item Weight: 9 Pounds (approximately 4.08 kg)
- Product Dimensions: 11 x 10 x 24 inches (approximately 27.9 x 25.4 x 61 cm)
- Room Type: Bedroom, Living Room, Office
- Special Features: Humidistat, Timer
- Water Tank Capacity: 1.2 Gallons
- Run Time: Up to 36 hours
- UPC: 048894052729
7. Warranty and Support
Sunbeam Products, Inc. (the parent company of Holmes) provides a Limited Warranty against defects in material and workmanship under normal use conditions. Warranty terms and length may vary. For detailed information regarding your warranty, please refer to the warranty section of your user manual (if provided separately) or contact their Consumer Services department.
For customer support or warranty inquiries, please visit the official Holmes or Jarden website for contact information.
